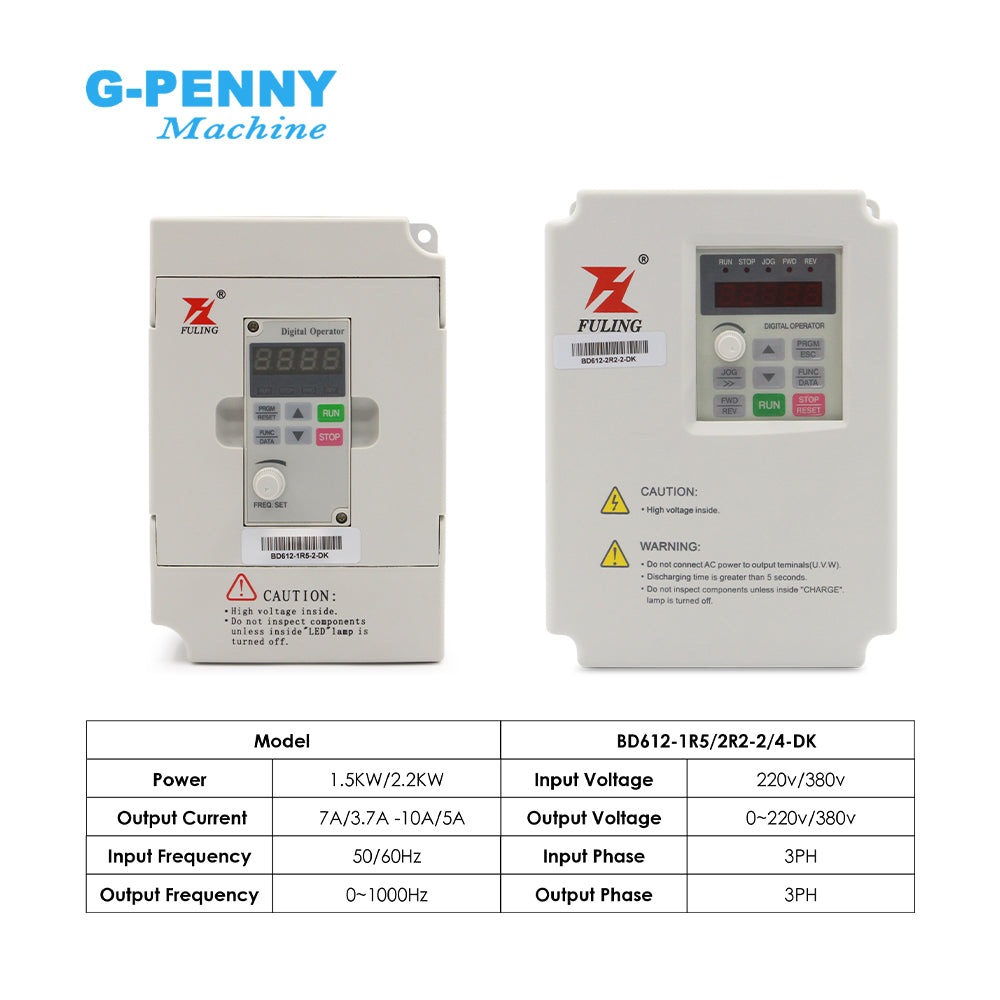

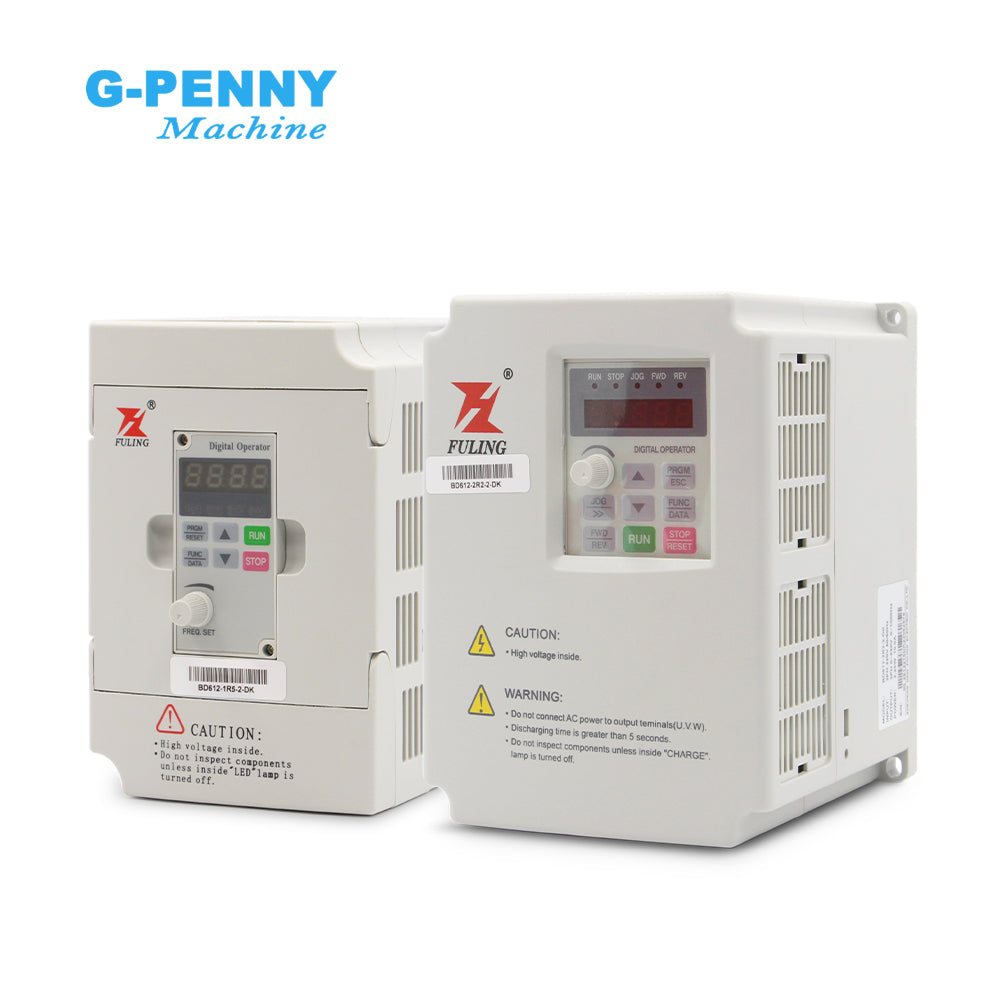

FuLing 1.5KW/2.2KW BD612 Inverter VFD 220V/380V 0~1000Hz Frequency Driver for spindle motor speed control

Power: 1.5KW / 2.2KW

Input Voltage: 220v/380v(+/-15%)

Input Frequency: 50/60Hz

Input Phase: 1 /3 phase

Output Voltage: 220v/380vAC

Output Frequency: 0-1000 Hz

Output Current:1.5KW-7A(220V)/3.7A(380V) 2.2KW-10A(220V)/5A(380V)

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

Advantage:

· It can realize 8-segment speed operation, which is convenient for the control of VIHON card

· Adopt 32-bit microprocessor and sine wave PWM control

· Scientific algorithm, low interference

· Adopt independent air duct, suitable for dusty occasions

· Automatic torque lifting and automatic slip compensation function

· Output frequency range 0~1000.0Hz, up to 2000Hz can be customized

· Built-in standard 485 communication function

· Humanized design: special macro code parameters of engraving machine are set at the factory, which is convenient for users to debug

· Power range: 0.75KW-11KW

· The special macro code parameters of the engraving machine are set at the factory, which is convenient for users to debug
