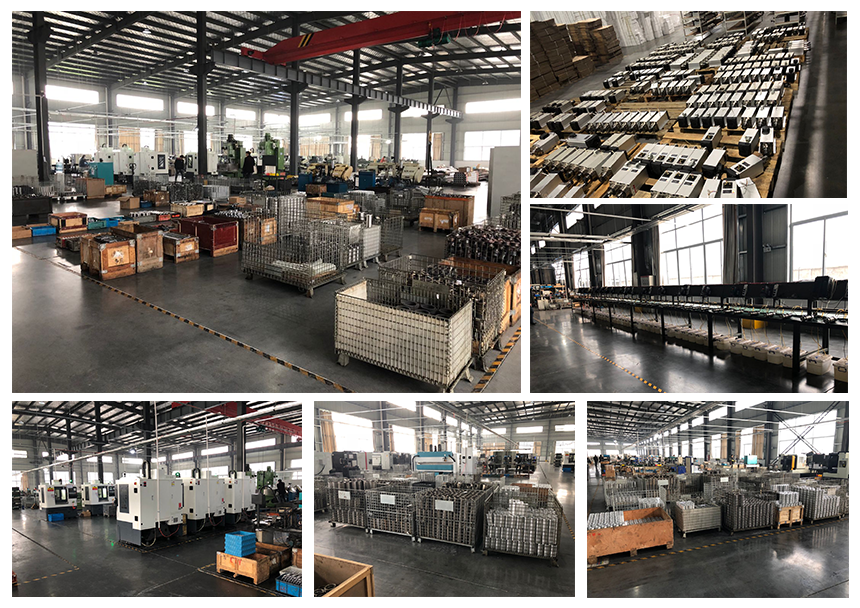

Spindle from the production - assembly - test, and finally the perfect packaging .

We will 100% guarantee security to the hands of the guests.

E-mail : penny@gpennycnc.com

Video

Water cooled spindle motor

ATC Spindle motor

Air cooled spindle motor

Metal working spindle motor

Inverter / VFD

Inverter / VFD

Inverter / VFD

Inverter / VFD

Inverter / VFD

Inverter / VFD

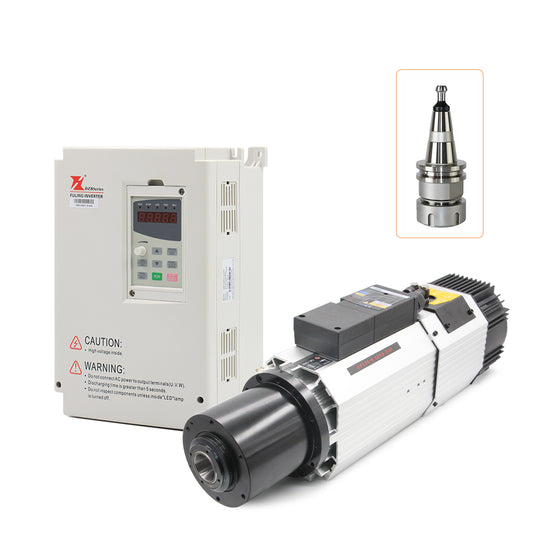

  • 110V 1.5KW / 220V 2.2KW ISO20 ATC Air cooled spindle motor

    Size: 372.7*94.5*81.8mm

    Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

    Cooling: Air cooling

    Power Interface: Optional 5 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4" "5" "GND". "1 ","2 ","3" were connected to inverter (U, V, W), "GND" connected inverter ground.
    (Pay attention! our spindle connecting to GND,promised personal safety!!)

    Power: 1.5KW / 2.2KW

    Voltage: 110V / 220v

    Rated Frequency: 600HZ, Rated Speed: 18000rpm

    Maximum Frequency: 800HZ, Maximum Speed: 24000rpm

    Rated torque: 1.17N.m

    Tool holder: ISO20

    Rated Current: 12A(110V 1.5KW) , 10A(220V 2.2KW)

    Cooling method: Air cooled
    Net weight: 9.2KG

    Lubricating method: Grease

    Bearings Type: 2*7005 & 2*7004 (Ceramic ball bearings)

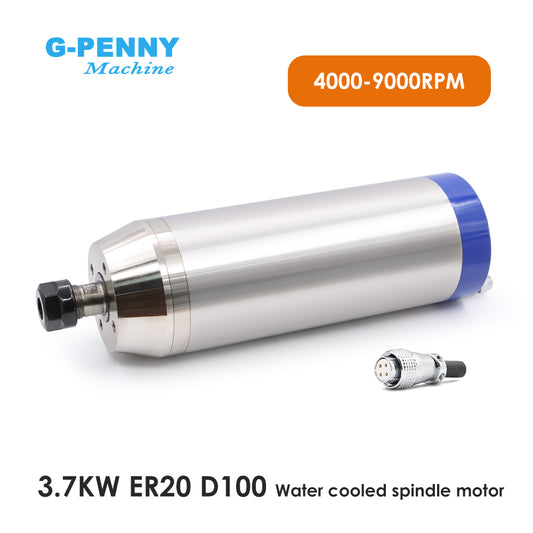

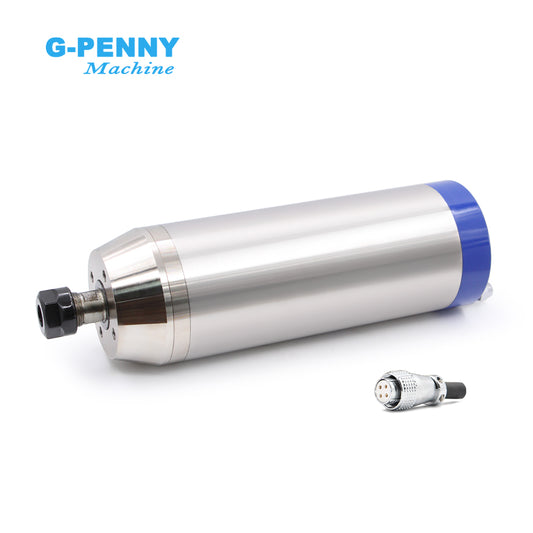

  • 3.7KW ER20 D100 220v /380v Bullet type water cooled spindle motor

    Power:3.7kw
    Voltage:220v/380v
    Current:17A/10A
    Frequency:0-400Hz
    Speed: 0-24000rpm
    Runout Off:Less than 0.01mm
    Diameter(mm): 100
    Bearing Type: 2 x 7005 P4 & 2 x 7003 P4
    4pcs fully sealed angular contact bearings
    Collet: ER20
    Clip Knife Diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
    Water Cooling ER20 collet chunk
    Grease Lubrication

    Spindle net weight: 10.45KG
