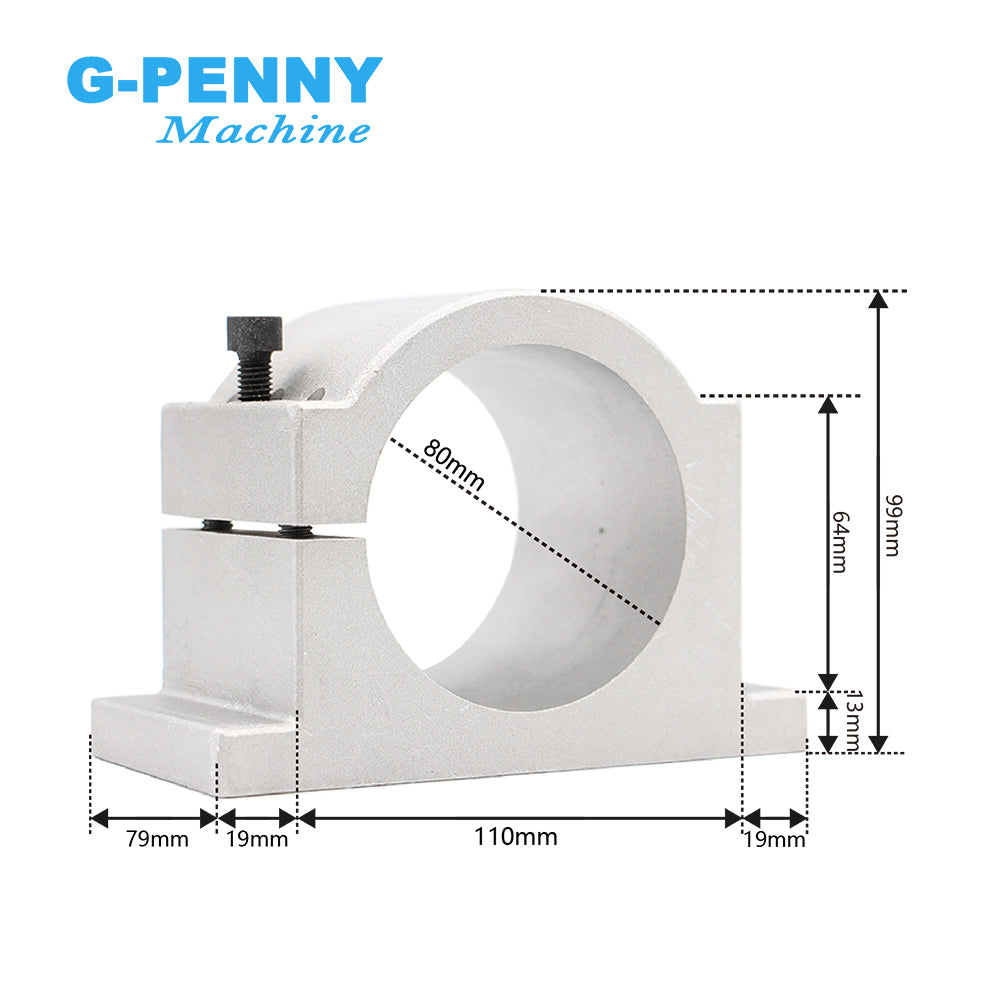

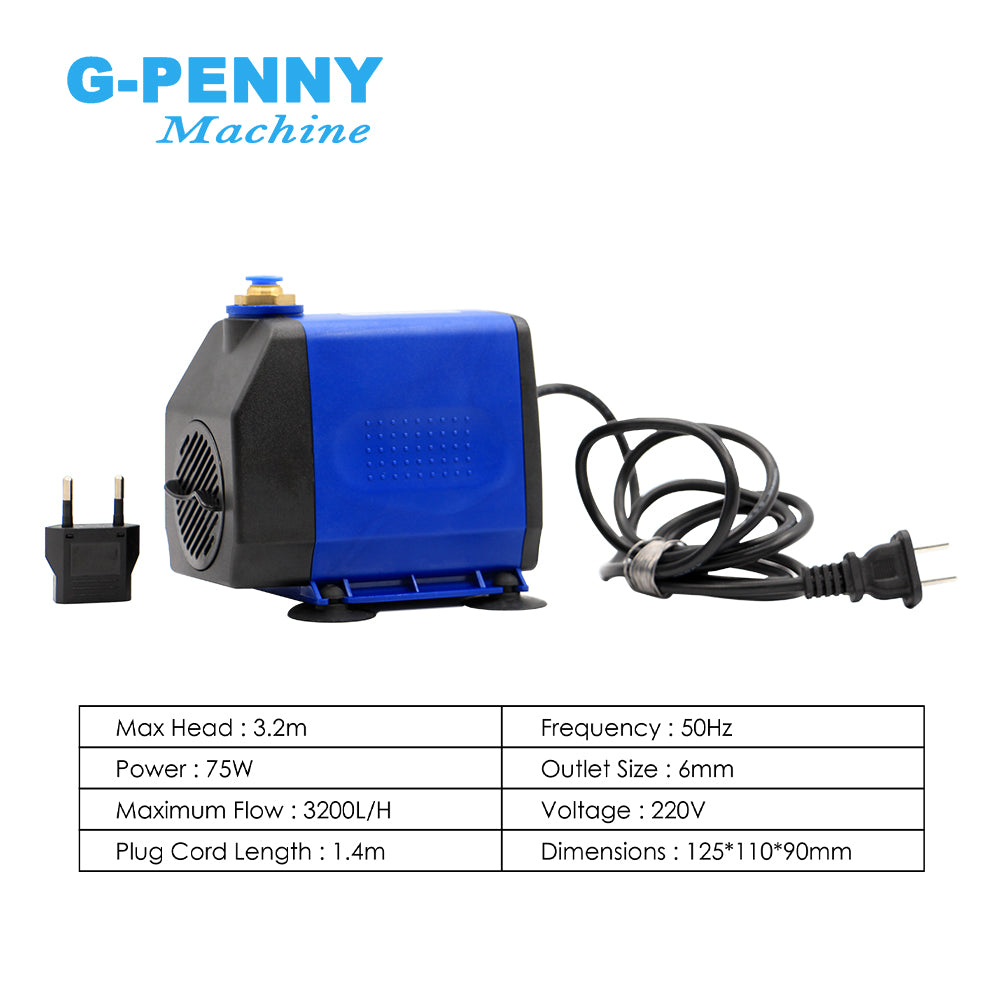

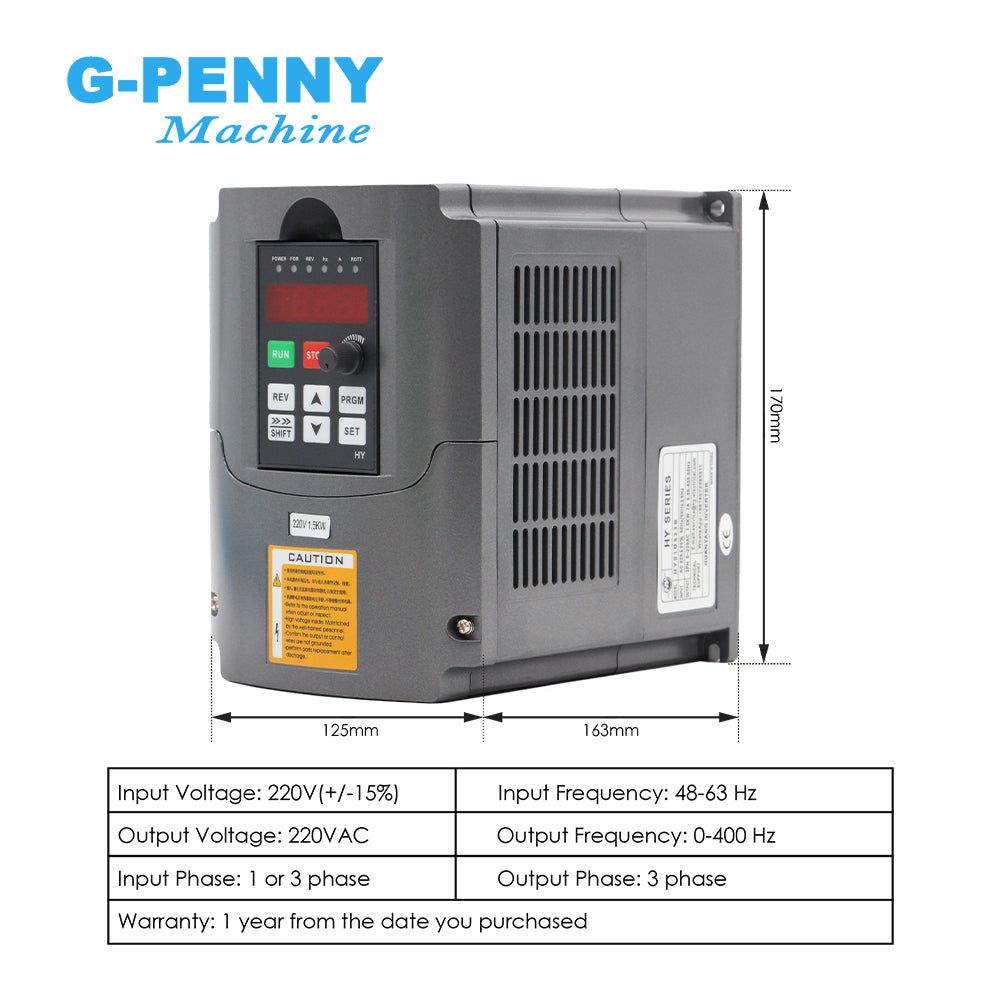

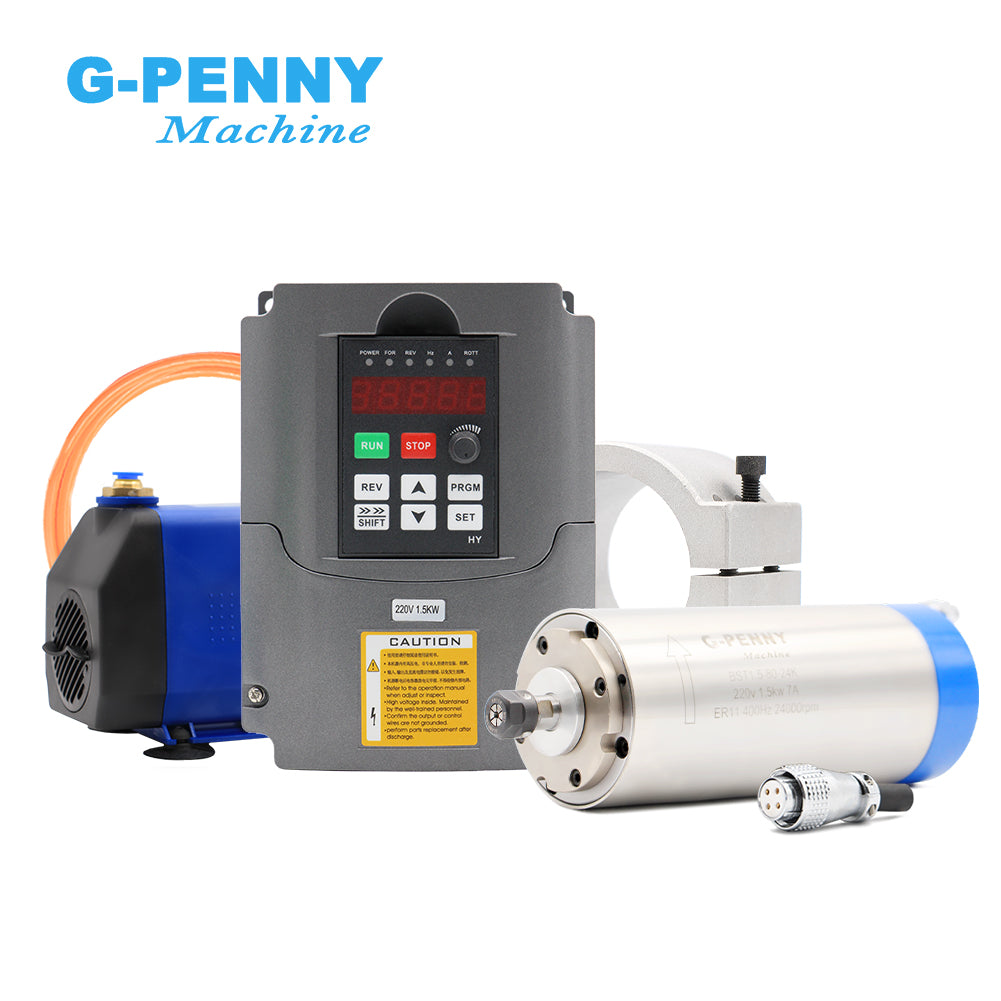

G-Penny 1.5KW ER11 Water Cooled Spindle 1.5KW HY Inverter 80mm Bracket 75W Water Pump
G-Penny 1.5KW ER11 Water Cooled Spindle 1.5KW HY Inverter 80mm Bracket 75W Water Pump
Couldn't load pickup availability
Basic parameter:

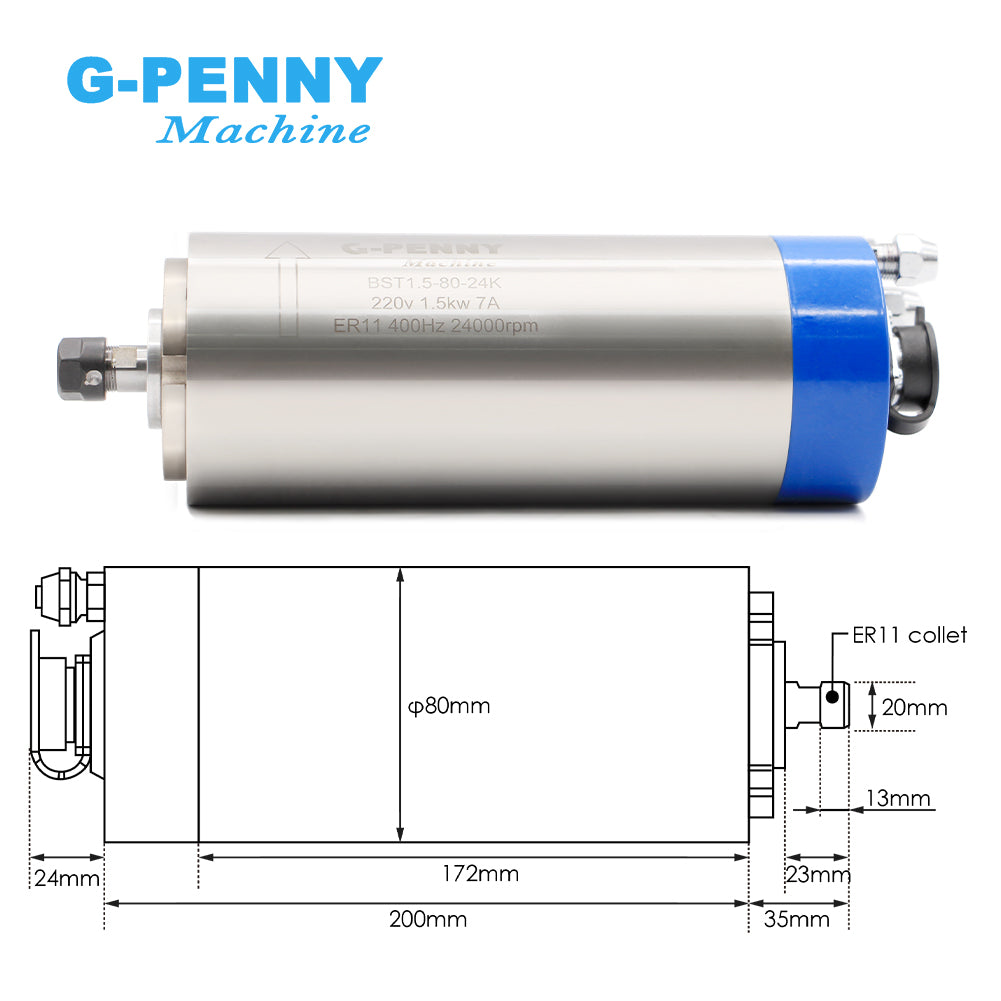

* Size: 80x200mm (Middle body diameter:80mmxLength:200mm)
* Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling: Water cooling
* Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power: 1.5kw (1HP=0.735kw)
* Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
* Frequency: 400Hz
* Speed: 0-24000rpm
* Runout Off: 0.01mm
* 4pcs fully sealed angular contact bearings
* Bearing Type: 2×7002C P4 DT & 2×7002C P4 DT
* Collet: ER11
* Grease Lubrication
