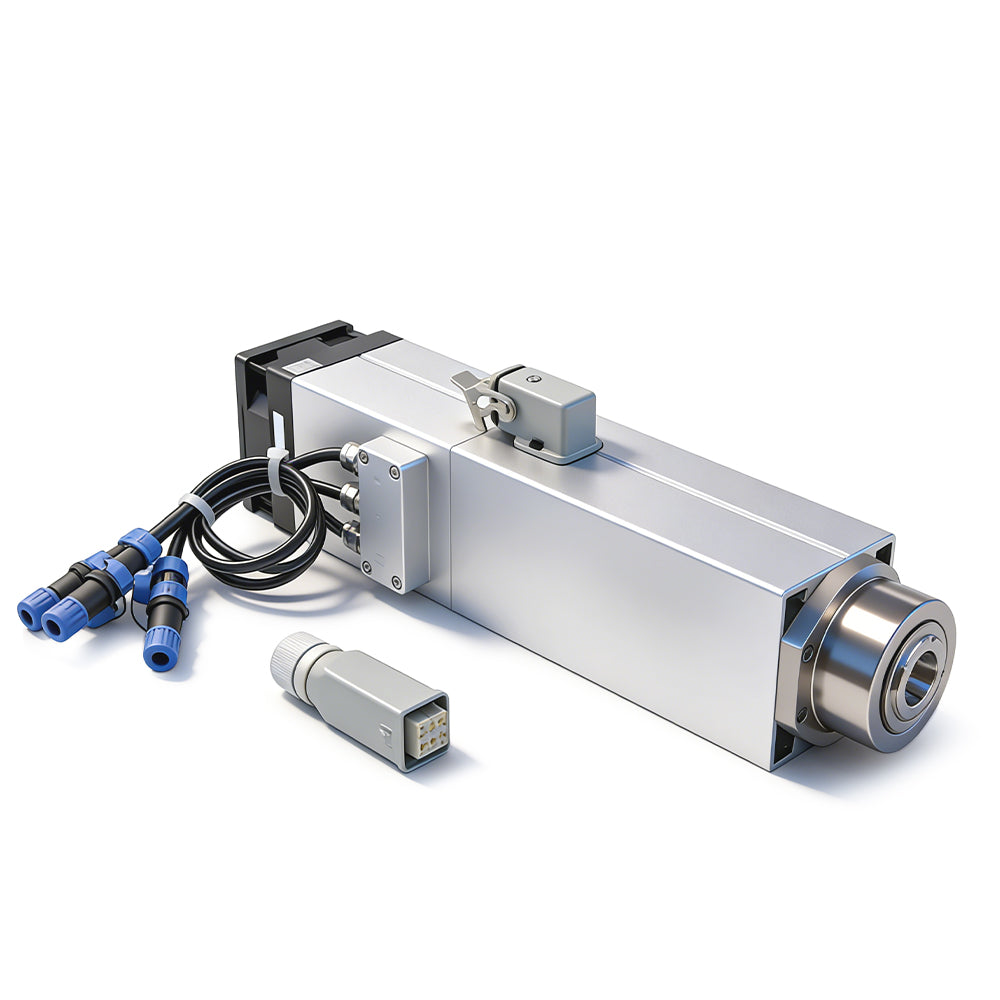

G-Penny 2.2KW ISO20 ER20 ATC Spindle Water Cooled 18000-24000rpm Automatic Tool Change CNC Spindle Motor for Metal Wood Milling

Basic parameter:

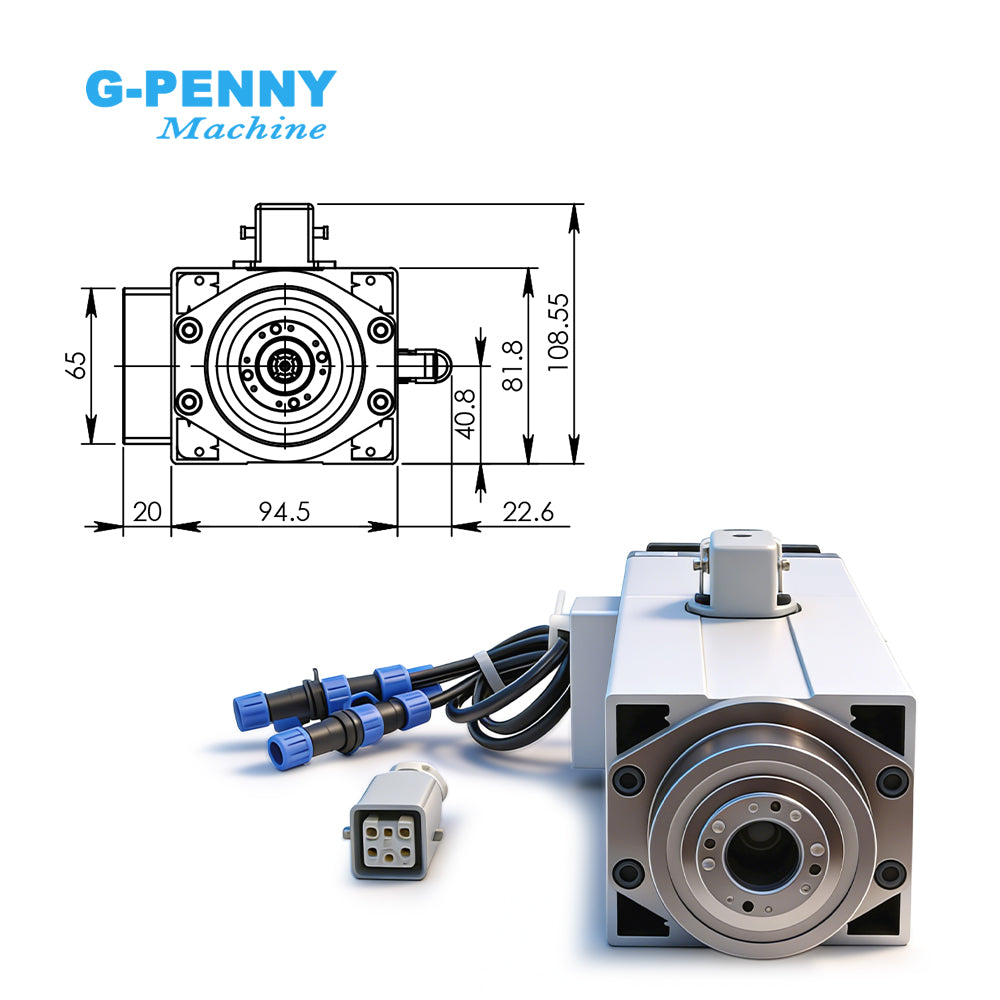

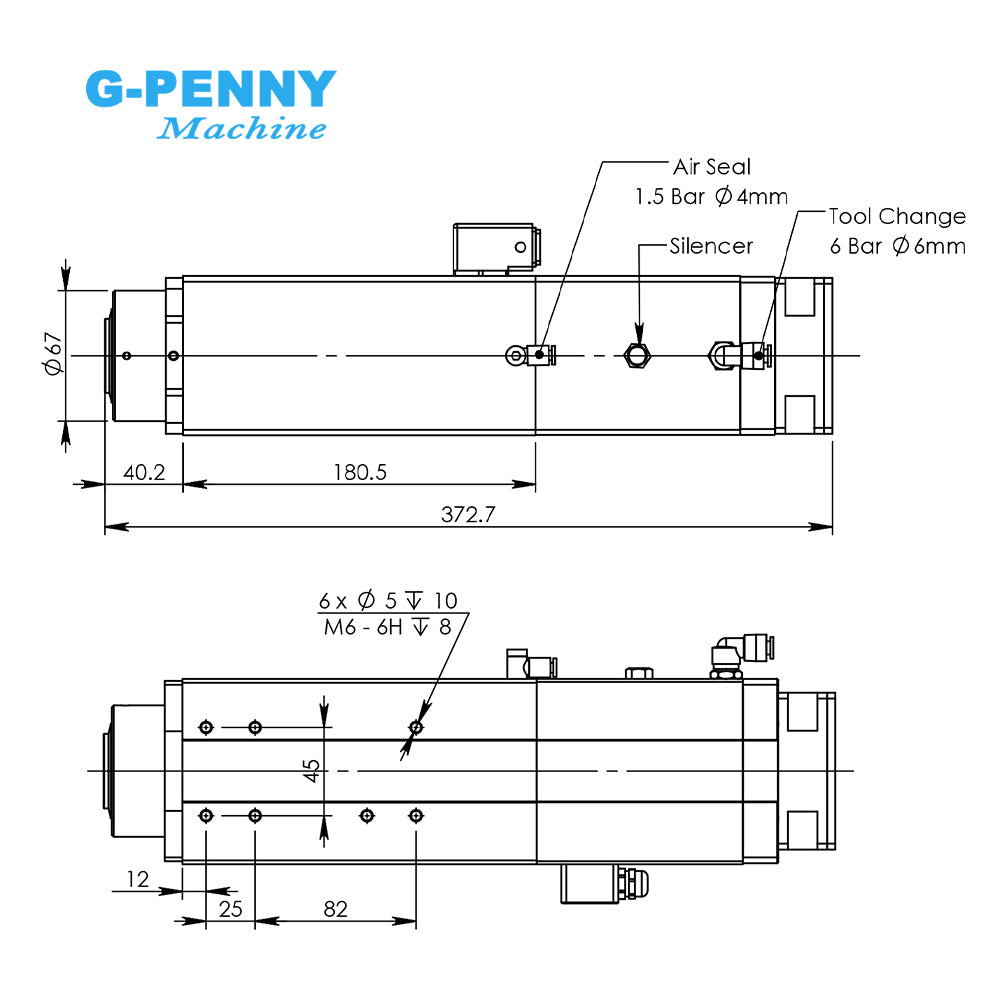

Size: 372.7*94.5*81.8mm

Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

Cooling: Air cooling

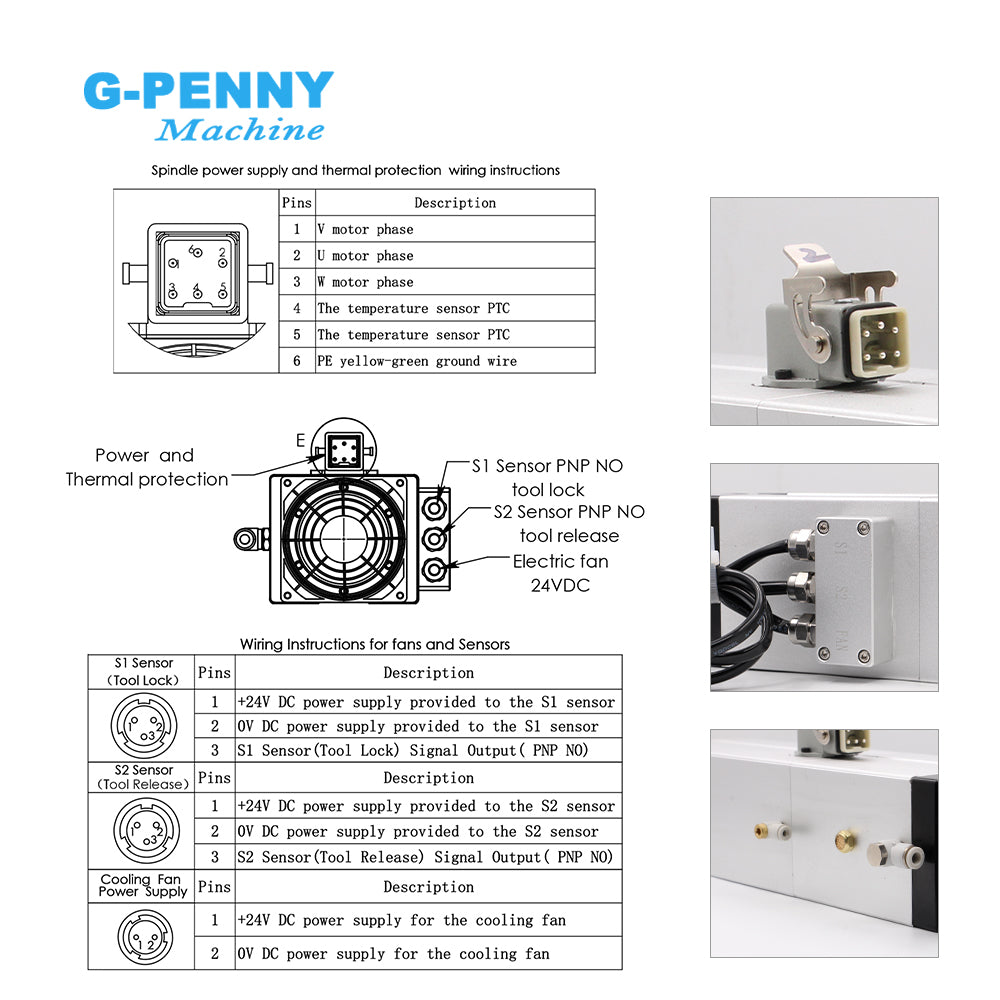

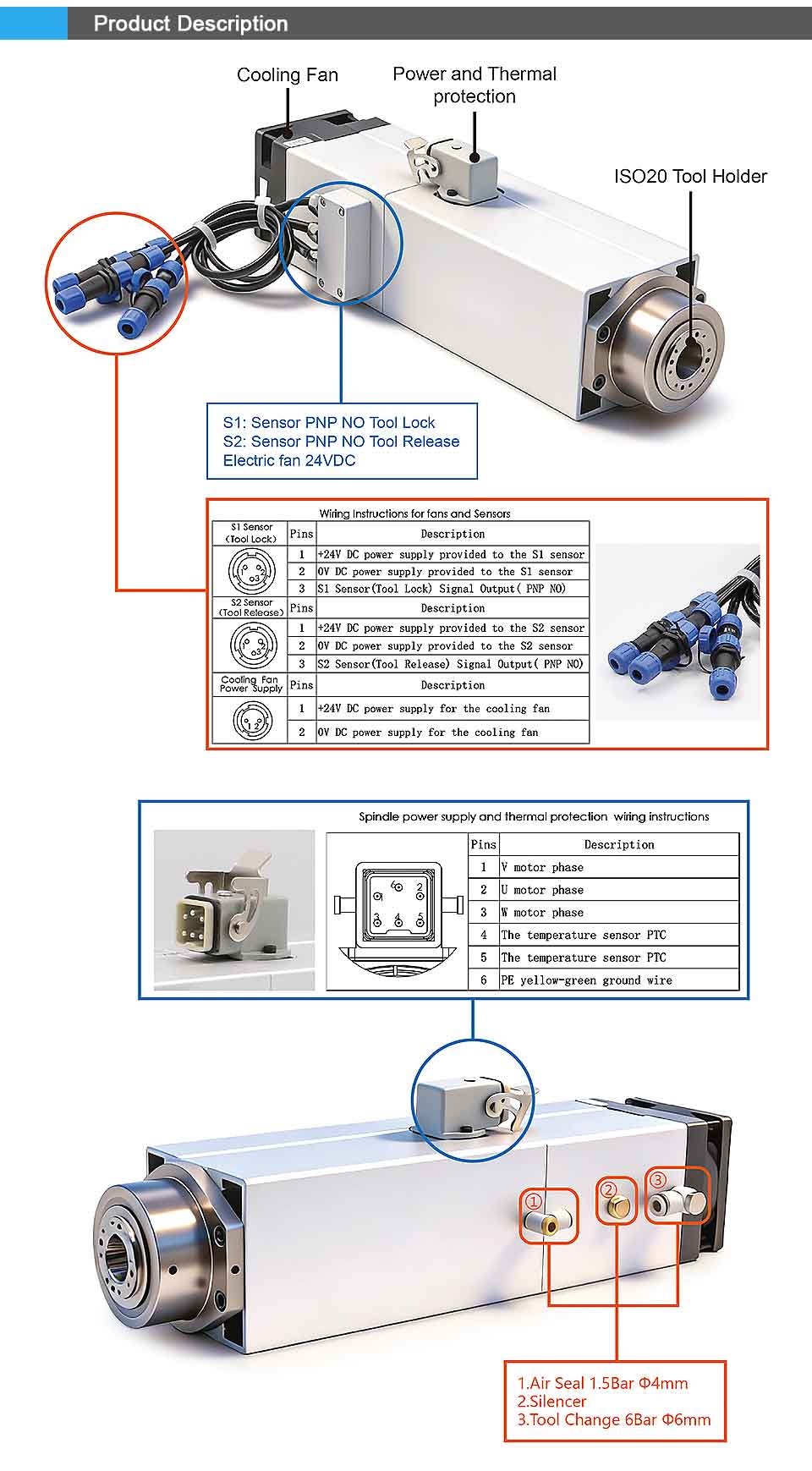

Power Interface: Optional 5 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4" "5" "GND". "1 ","2 ","3" were connected to inverter (U, V, W), "GND" connected inverter ground.
(Pay attention! our spindle connecting to GND,promised personal safety!!)

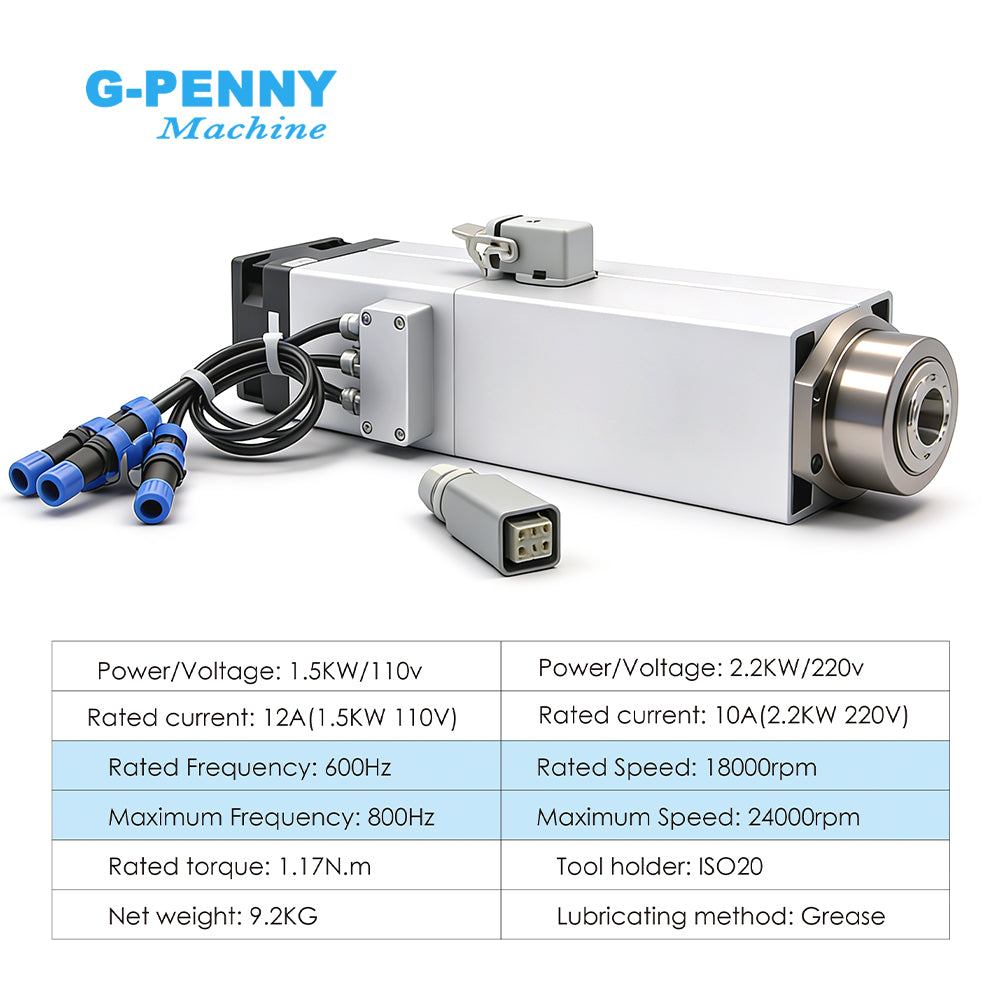

Power: 1.5KW / 2.2KW

Voltage: 110V / 220v

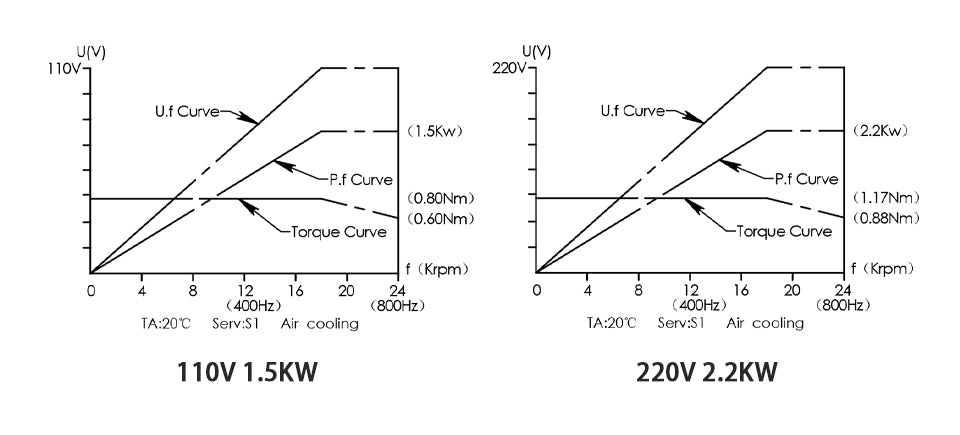

Rated Frequency: 600HZ, Rated Speed: 18000rpm

Maximum Frequency: 800HZ, Maximum Speed: 24000rpm

Rated torque: 1.17N.m

Tool holder: ISO20

Rated Current: 12A(110V 1.5KW) , 10A(220V 2.2KW)

Cooling method: Air cooled
Net weight: 9.2KG

Lubricating method: Grease

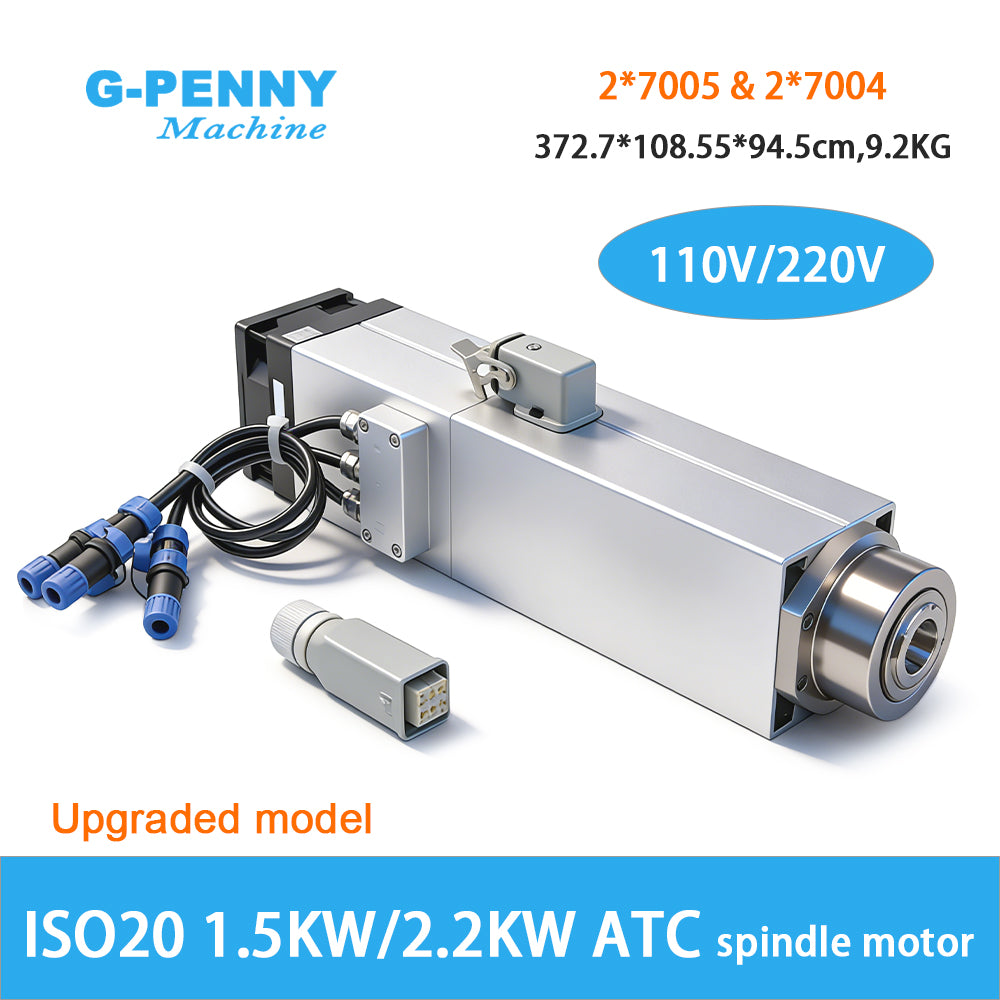

Bearings type: 2*7005 & 2*7004 (Ceramic ball bearings)

Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.
