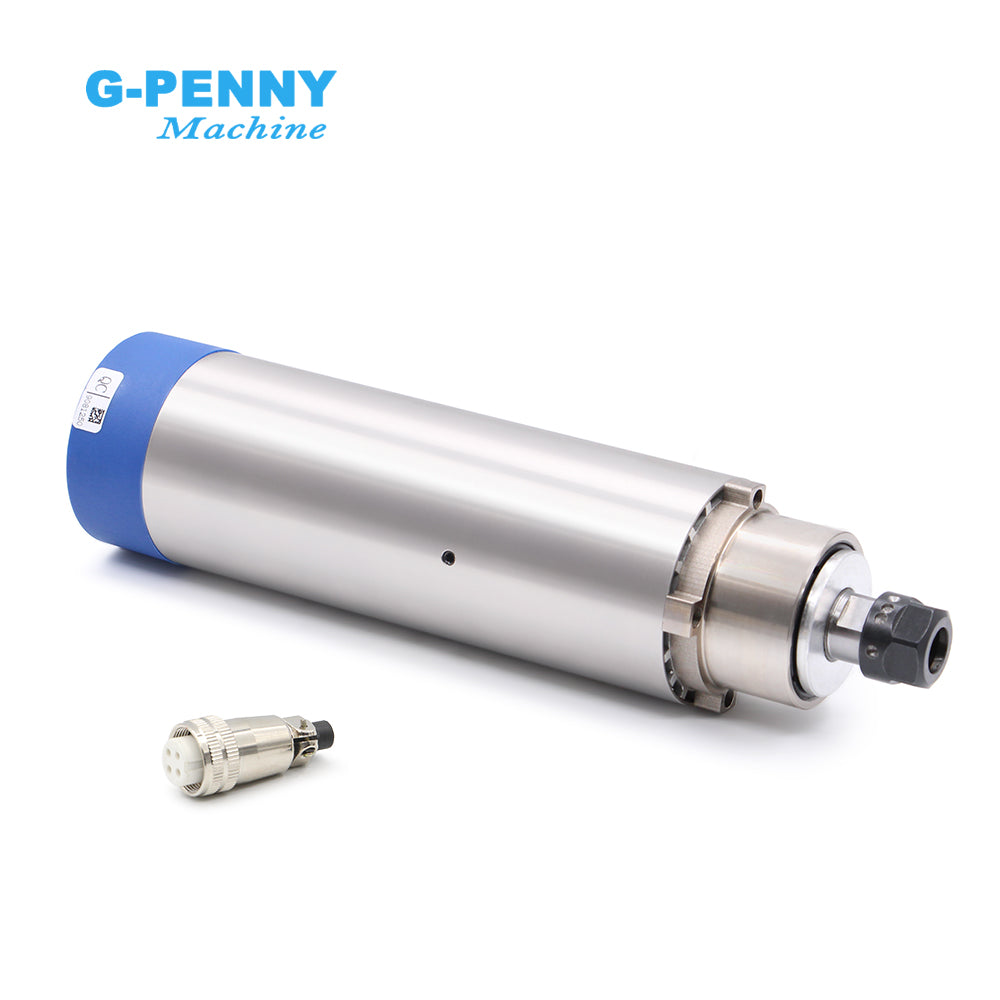

G-Penny 1.5KW ER16 D65 110/220/380V Air cooled spindle motor Used for cnc milling machine

Basic parameter:

Size: 65 x 258mm ( Body diameter:65mm; Length:258mm)

Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

Cooling: Air cooling

Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)

Power: 1.5kw (1HP=0.735kw)

Voltage: 110vAC

Current: 12.5A

Frequency: 0-400Hz

Speed: 0-24000rpm

Runout Off: 0.01mm

Bearing Type: 2X7004 P4 DT and 2X7000 P4 DT

Full sealed angular contact bearings

Collet: ER16

Clip Knifediameter: 10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm

Air Cooling ER16 collet chunk

Grease Lubrication

Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
