G-penny 1.5kw ER11 D65 110V/220V Water cooled spindle motor 400hz 24000rpm for Cnc Milling Machine

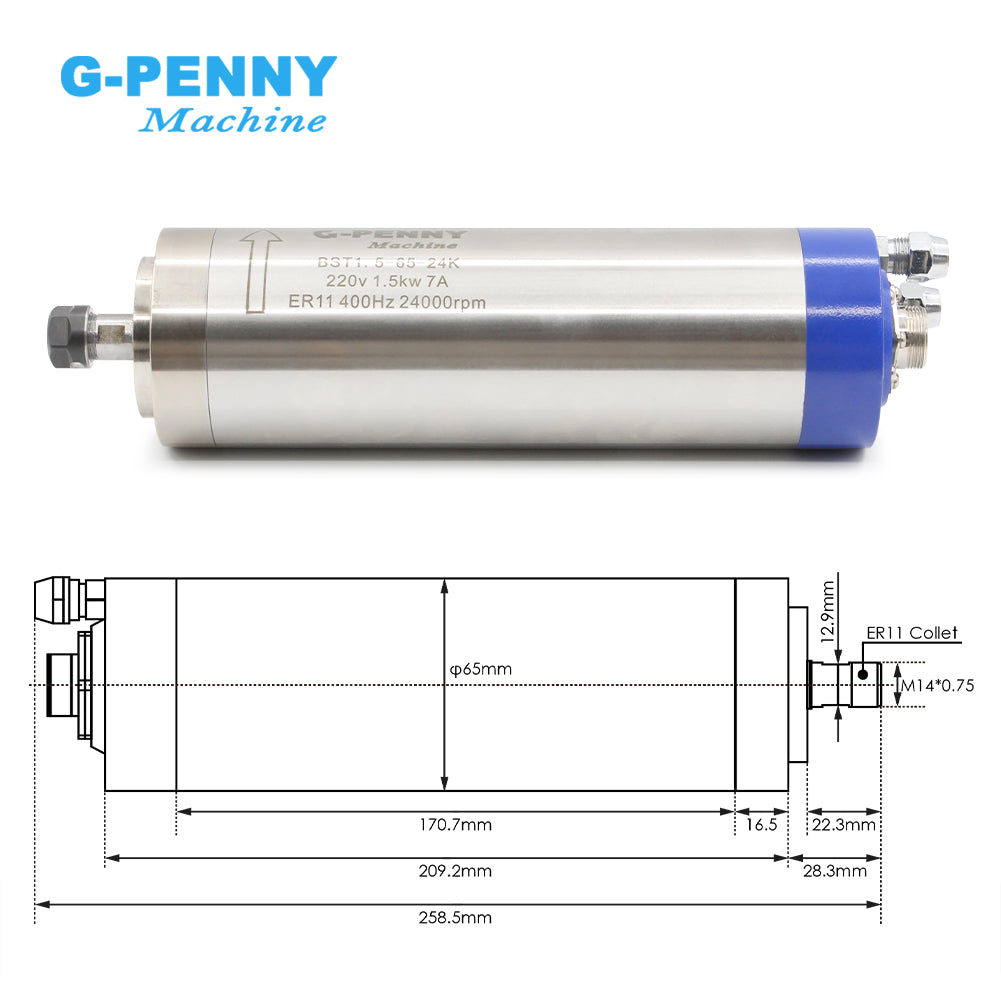

Size: 65 x 209mm (Middle body diameter:65mm;Length:209mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling

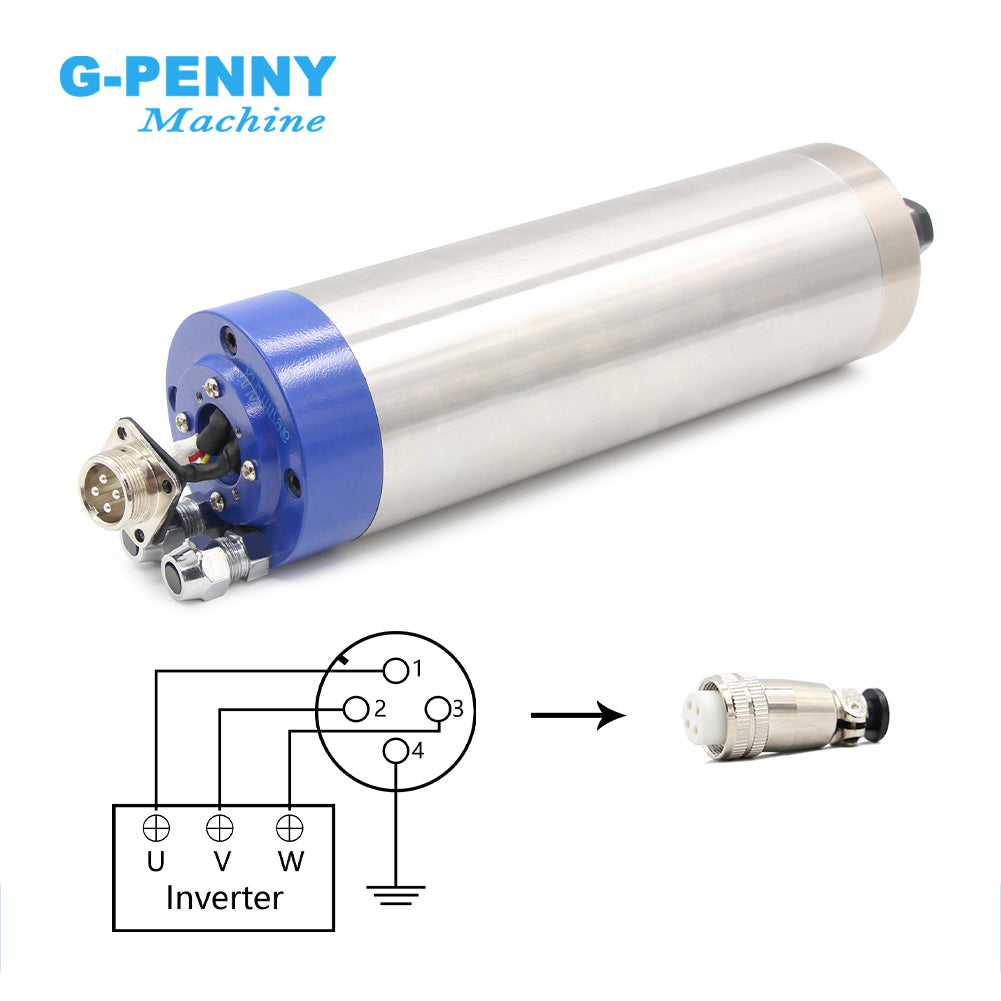

Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to

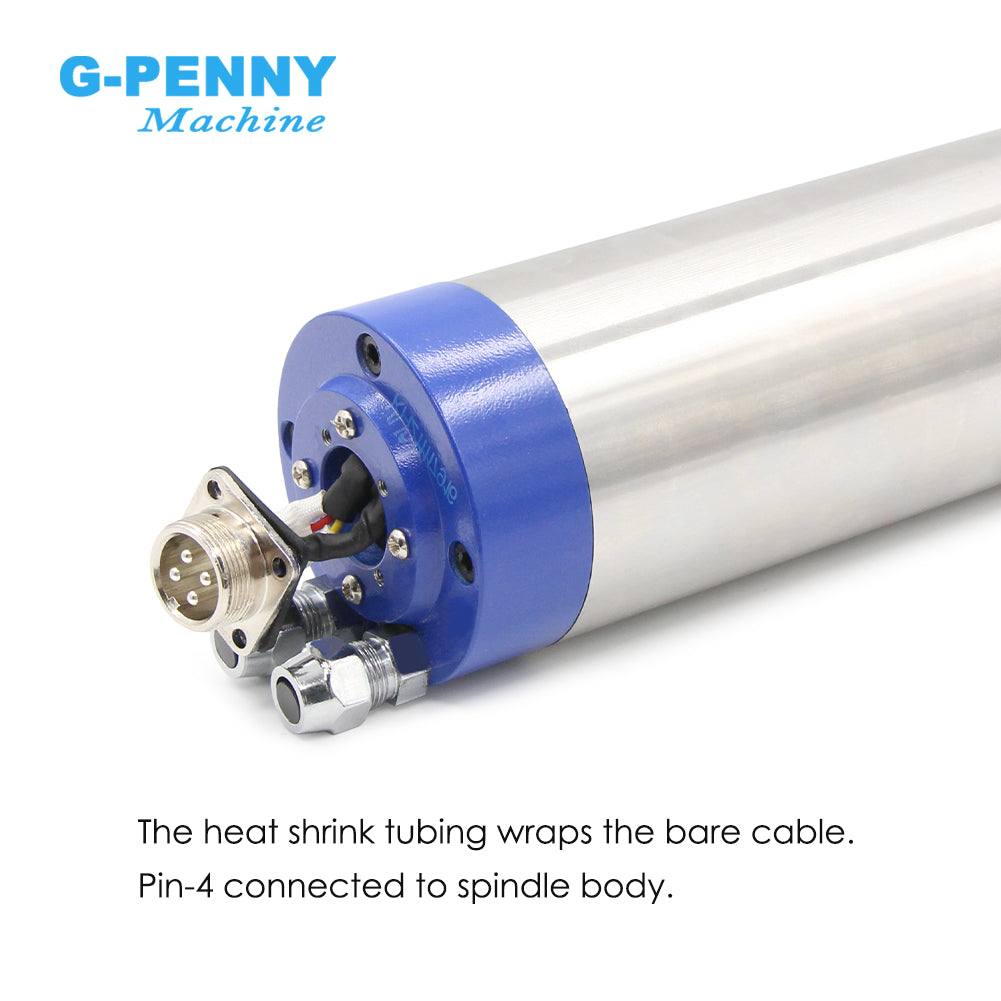

inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)

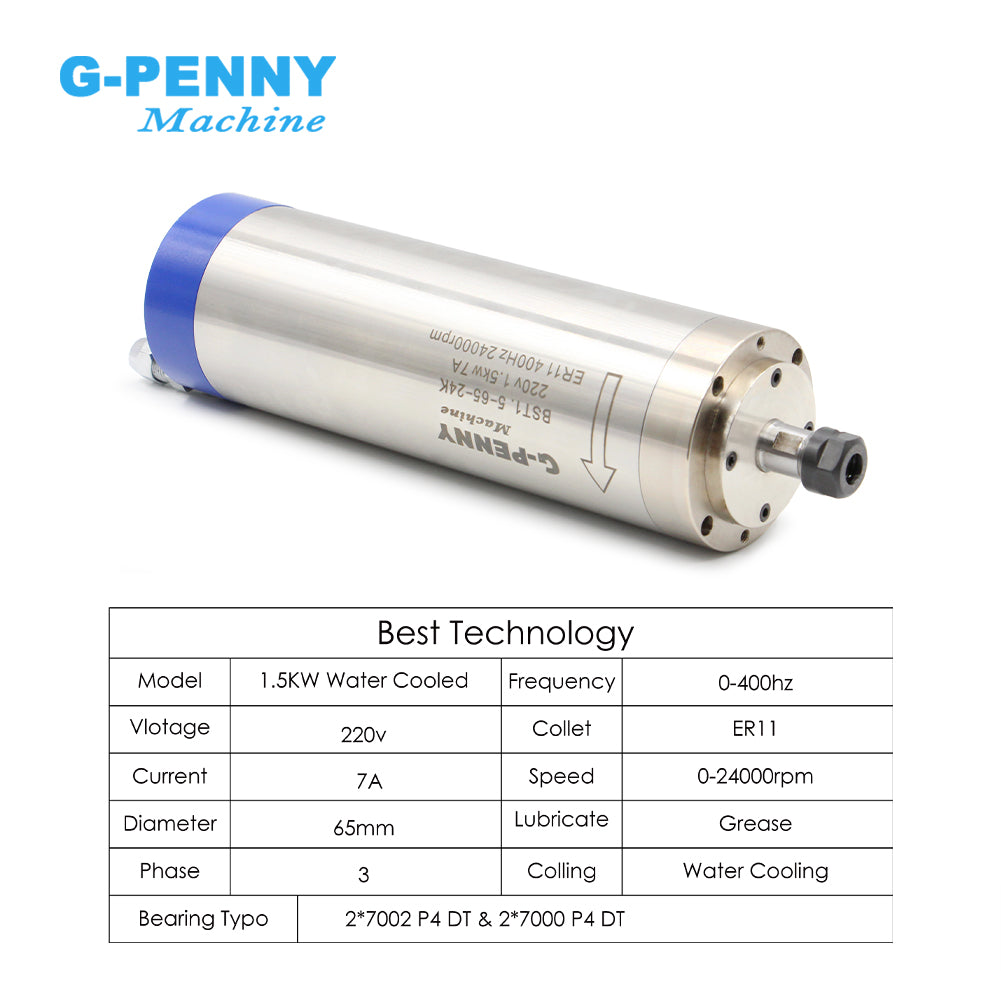

Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC (If you need 110v spindle ,please leave message to us,thank you)
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
Fully sealed P4 angular contact bearings
Bearing Type: 2×7002C P4 DT & 2 ×7000C P4 DT
4 pcs angular contact bearings
Water Cooling ER11 collet chunk
Grease Lubrication

Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on
gold,silver,copper, aluminium,Pb etc soft metal surface working.
