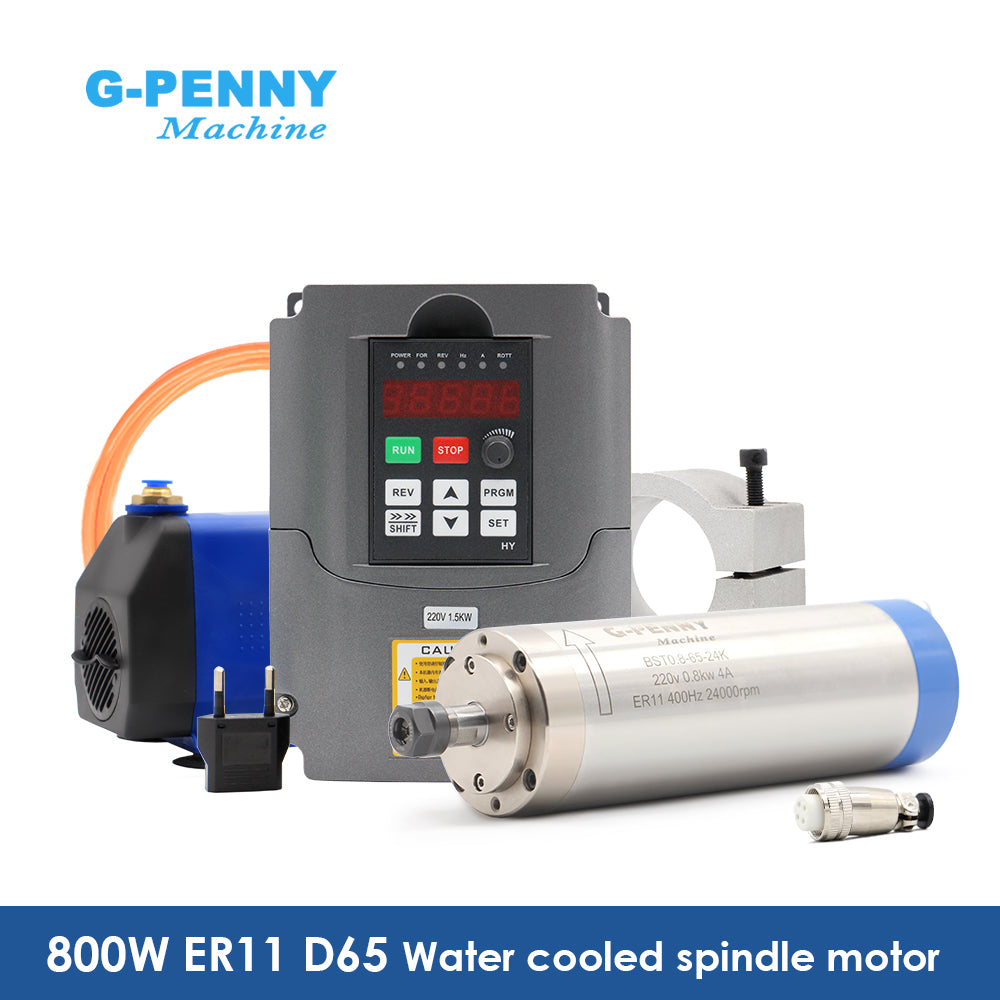

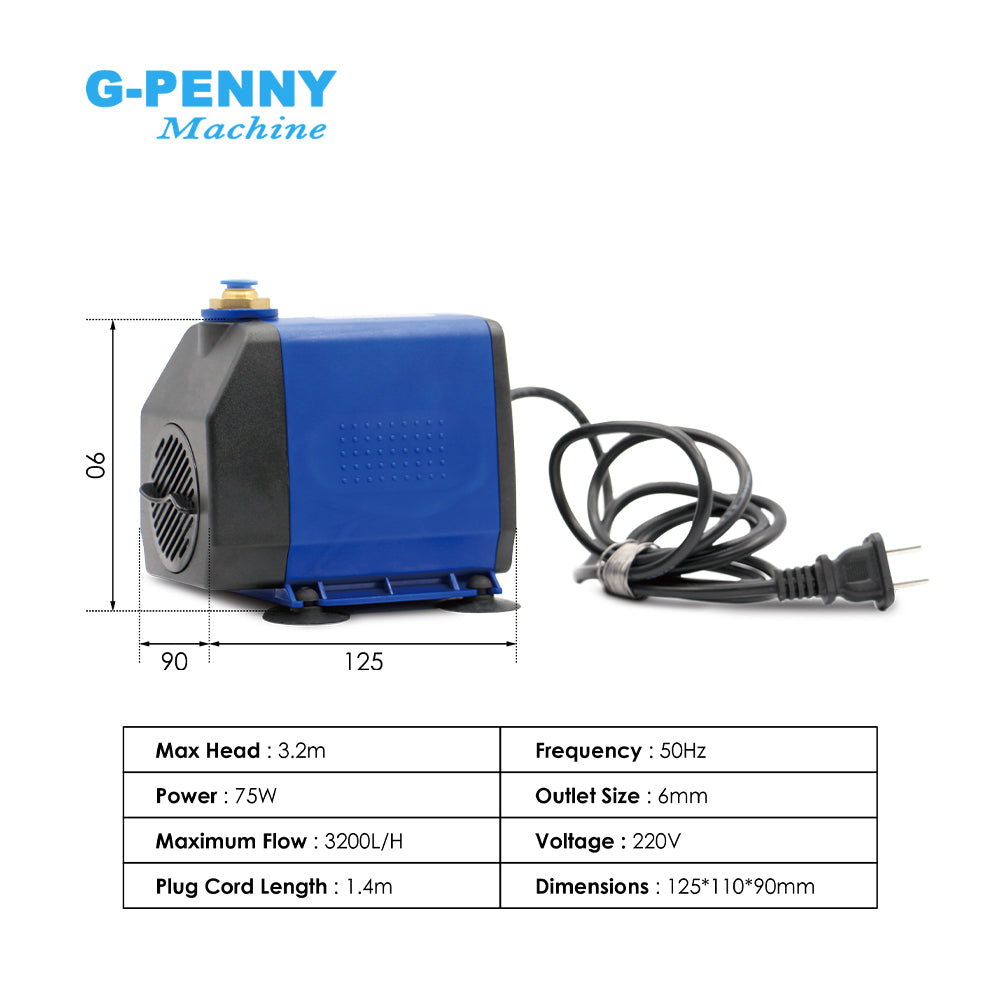

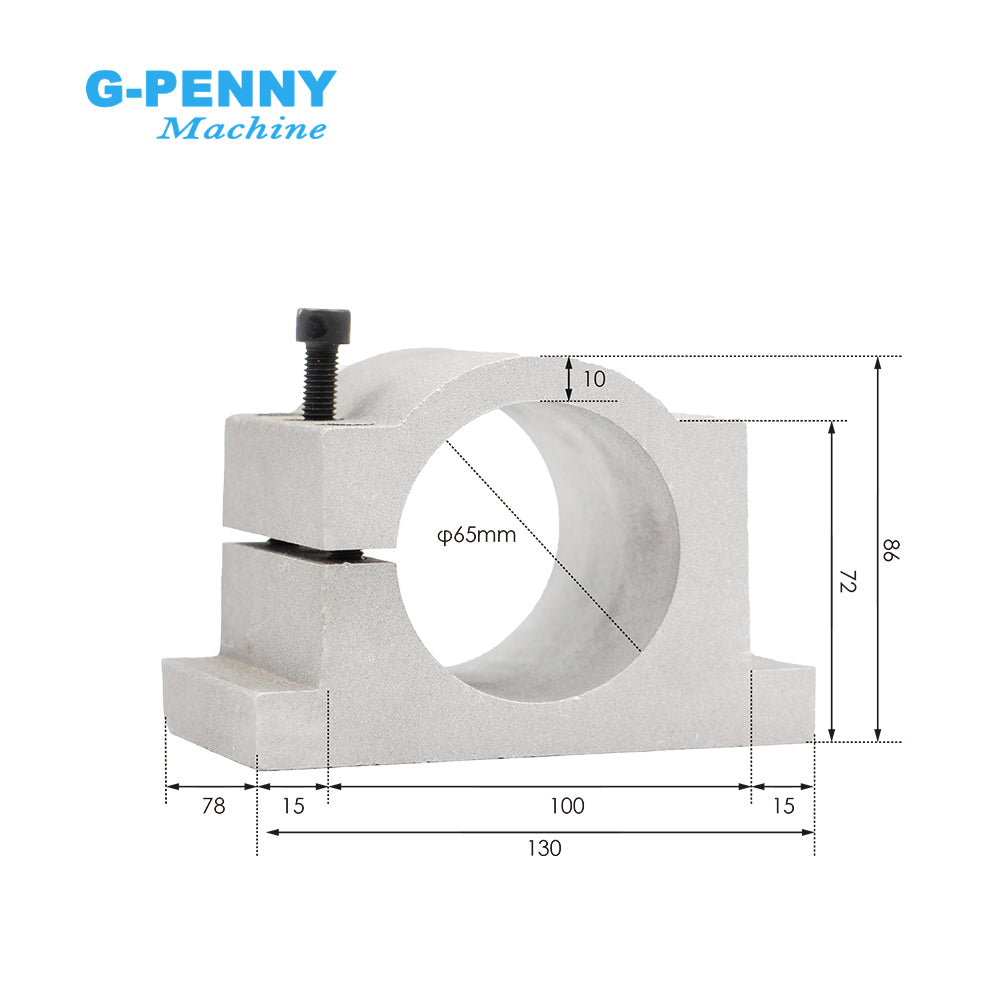

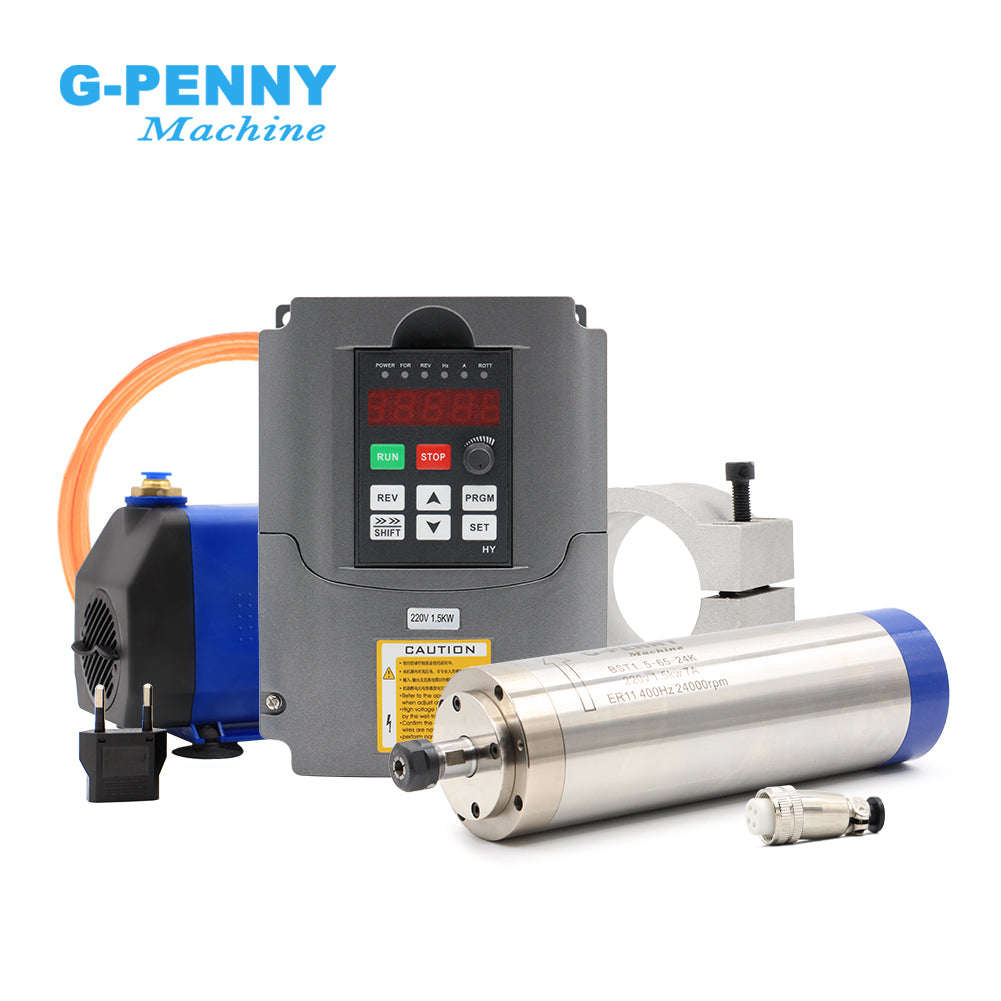

G-penny 0.8KW ER11 D65 220v Water Cooled Spindle Motor with HuanYang Inverter, water pump, bracket kit
G-penny 0.8KW ER11 D65 220v Water Cooled Spindle Motor with HuanYang Inverter, water pump, bracket kit
Regular price
$298.00 USD
Regular price
Sale price
$298.00 USD
Unit price
per
Couldn't load pickup availability

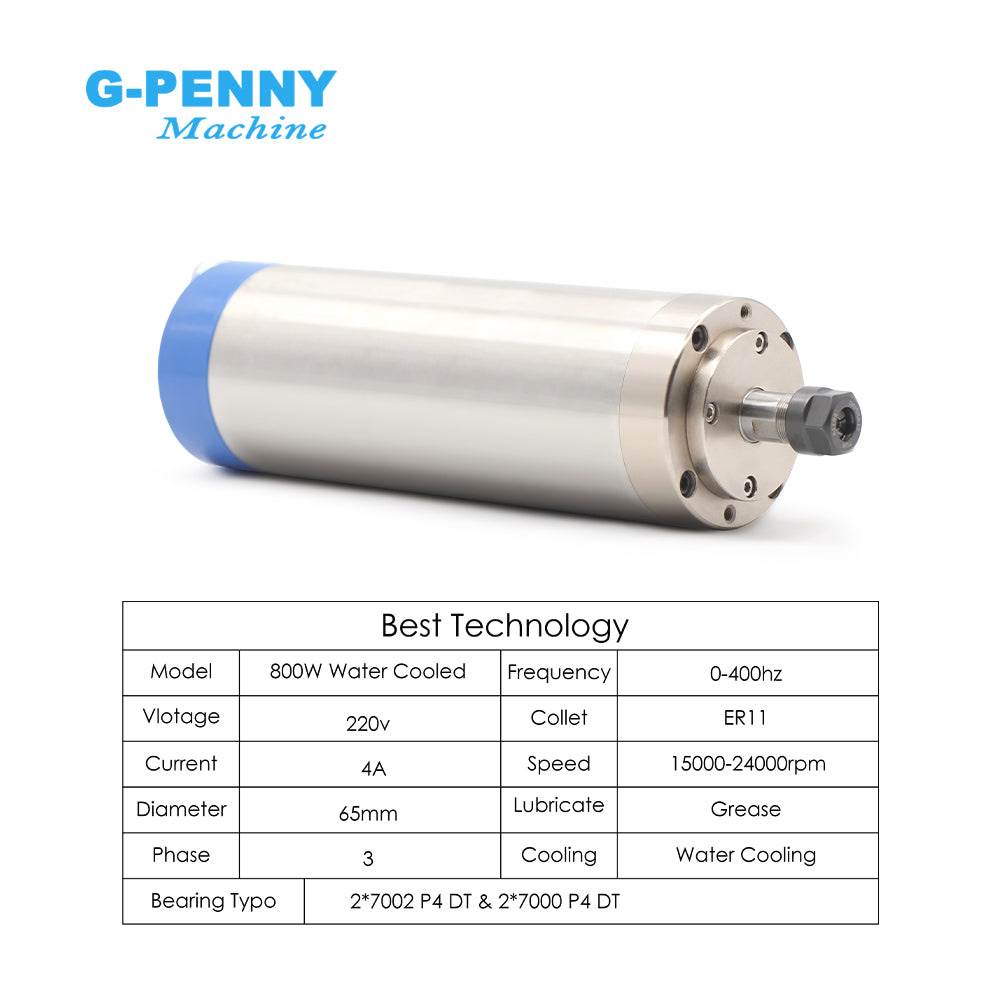

Basic parameter:

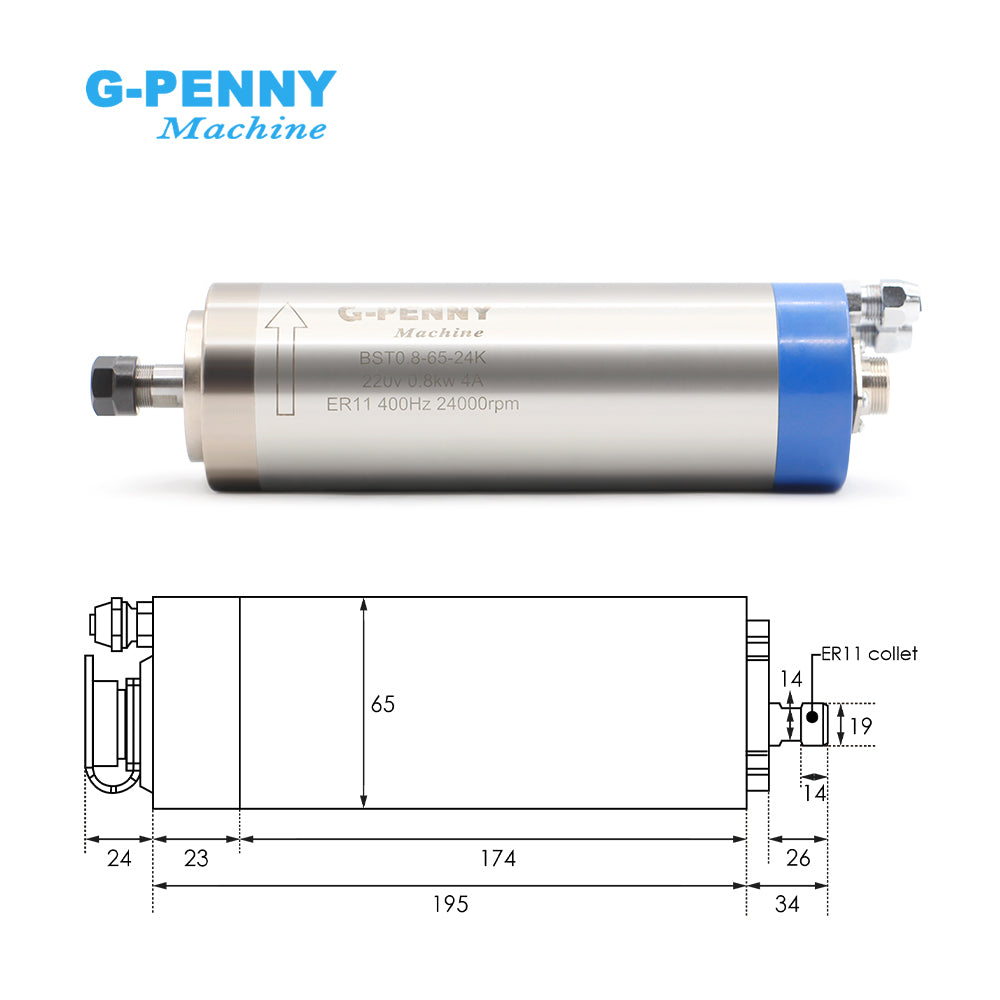

* Size: 65x195mm ( Body diameter:65mm; Length:195mm )
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling: Water cooling
* Power Interface:Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power: 0.8kw (1HP=0.735kw)
* Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
* Frequency: 0-400Hz
* Speed: 15000-24000rpm
* Runout Off: 0.01mm
* 4pcs fully sealed angular contact ball bearings
* Bearing Type: 2×7002C P4 DT& 2 ×7000C P4 DT
* Water Cooling ER11 collet chunk
* Grease Lubrication
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling: Water cooling
* Power Interface:Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power: 0.8kw (1HP=0.735kw)
* Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
* Frequency: 0-400Hz
* Speed: 15000-24000rpm
* Runout Off: 0.01mm
* 4pcs fully sealed angular contact ball bearings
* Bearing Type: 2×7002C P4 DT& 2 ×7000C P4 DT
* Water Cooling ER11 collet chunk
* Grease Lubrication
Basic parameter:

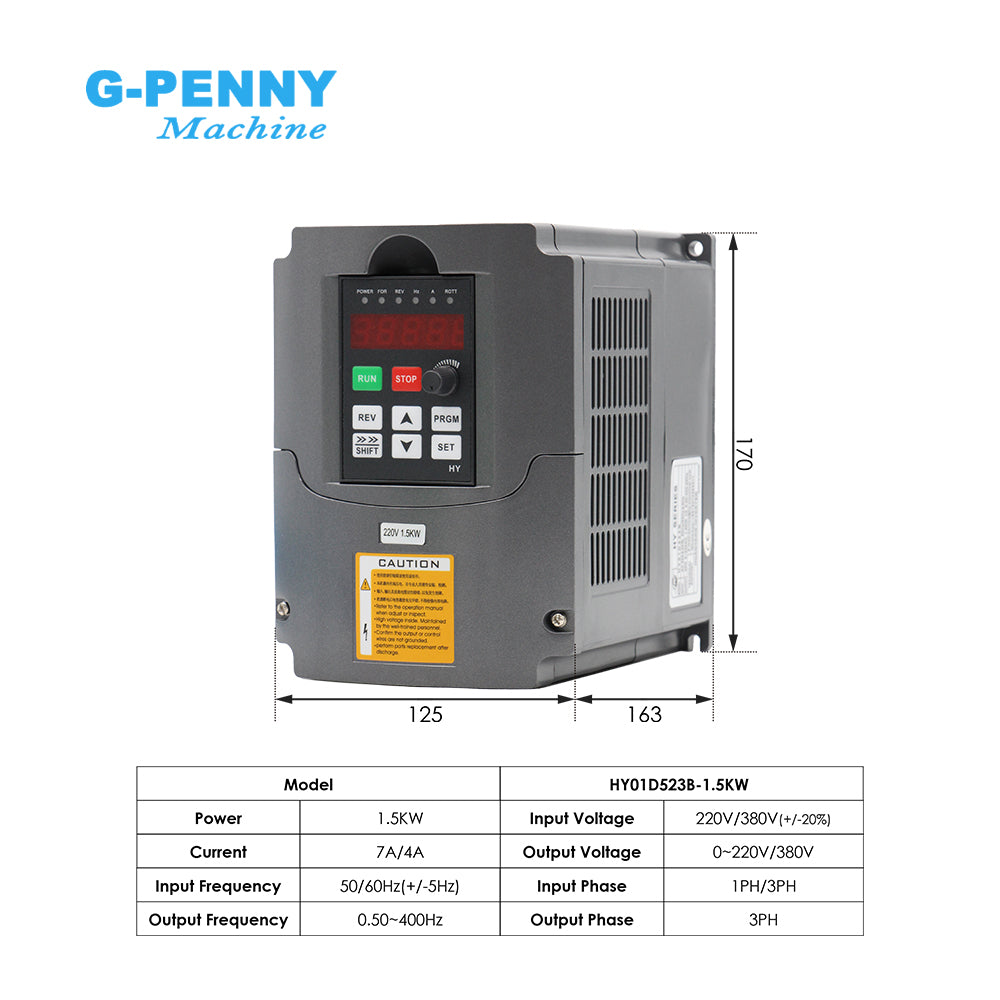

Huangyang 220v 1.5kw inverter
Length:125mm Width:163mm Height:175mm
Inverter Type: 220v (HY01D523B)
Input Voltage: 220V(+/-15%)
Output Voltage: 220vAC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 phase
Output Phase: 3 phase
Huangyang 220v 1.5kw inverter
Length:125mm Width:163mm Height:175mm
Inverter Type: 220v (HY01D523B)
Input Voltage: 220V(+/-15%)
Output Voltage: 220vAC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 phase
Output Phase: 3 phase
