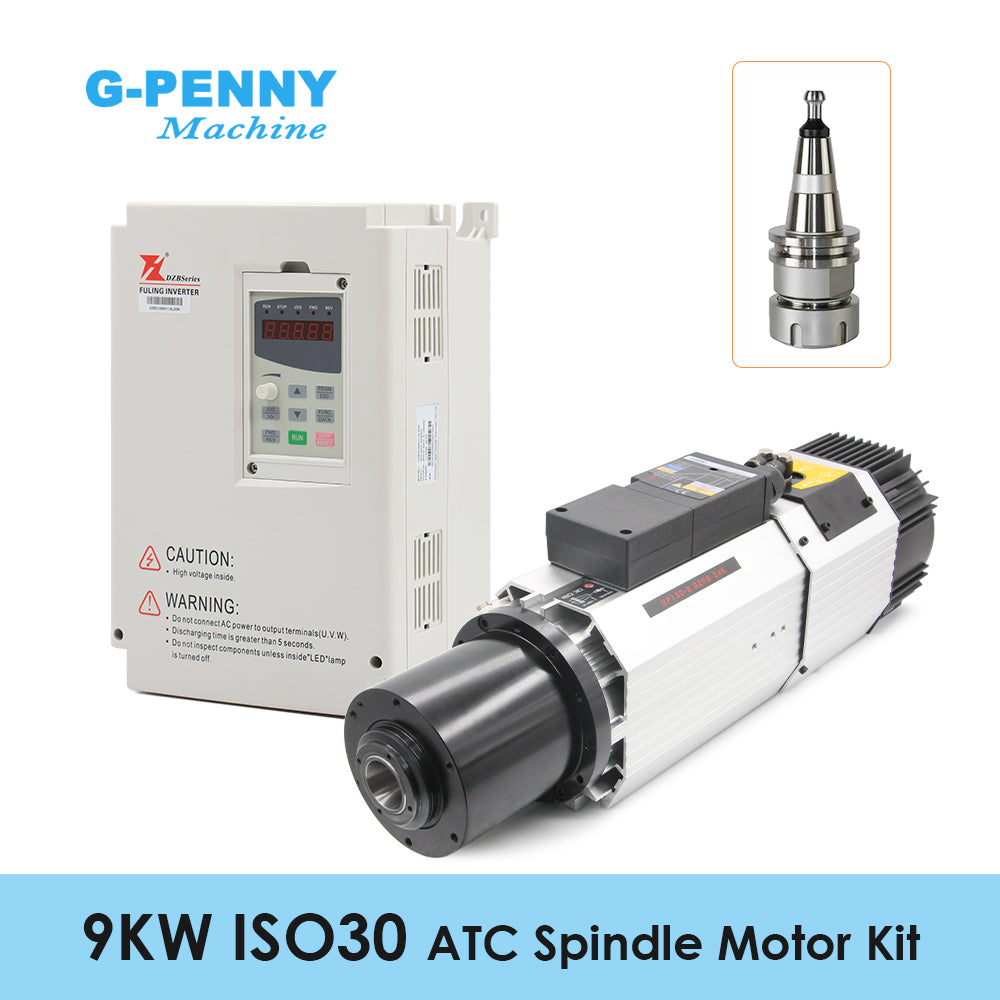

G-Penny 9.0KW ISO30 ATC Spindle motor 220v/380v 800hz-24000rpm 11KW BD612 Inverter spindle motor kit
G-Penny 9.0KW ISO30 ATC Spindle motor 220v/380v 800hz-24000rpm 11KW BD612 Inverter spindle motor kit
Couldn't load pickup availability

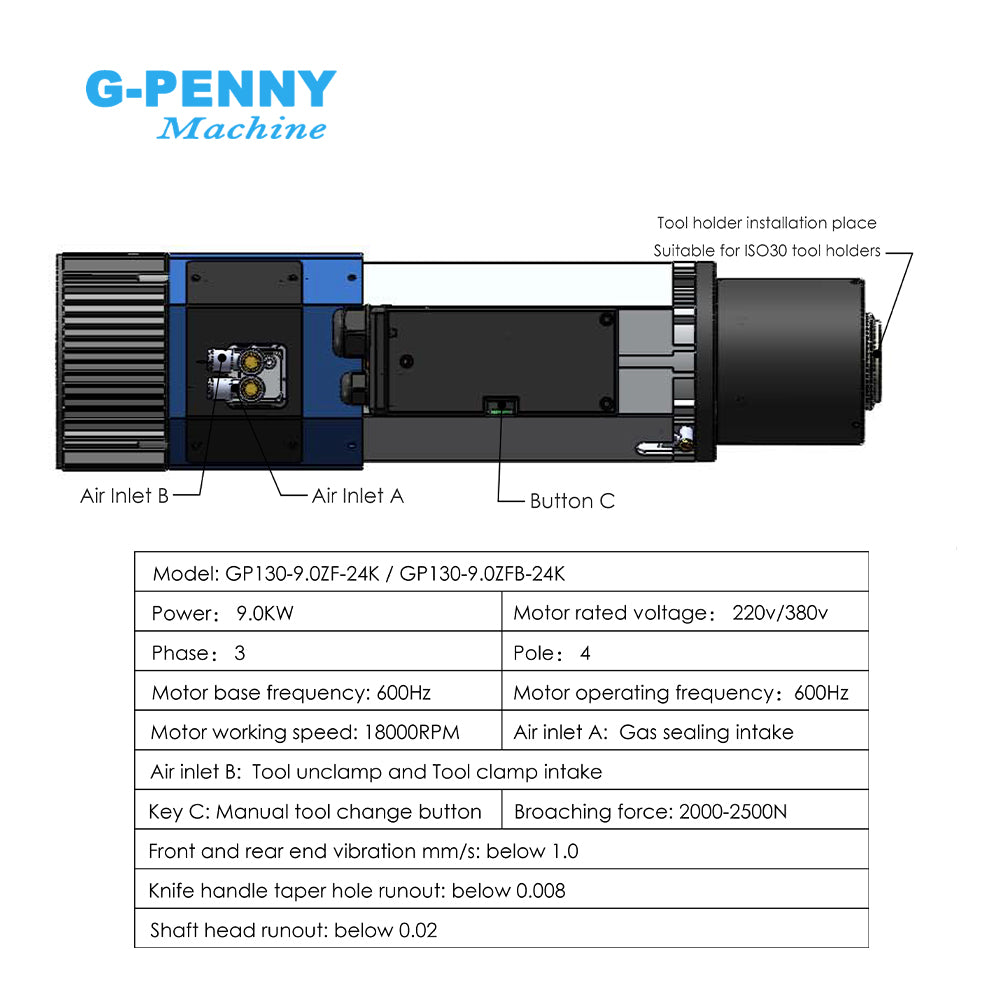

Spindle motor basic parameter:

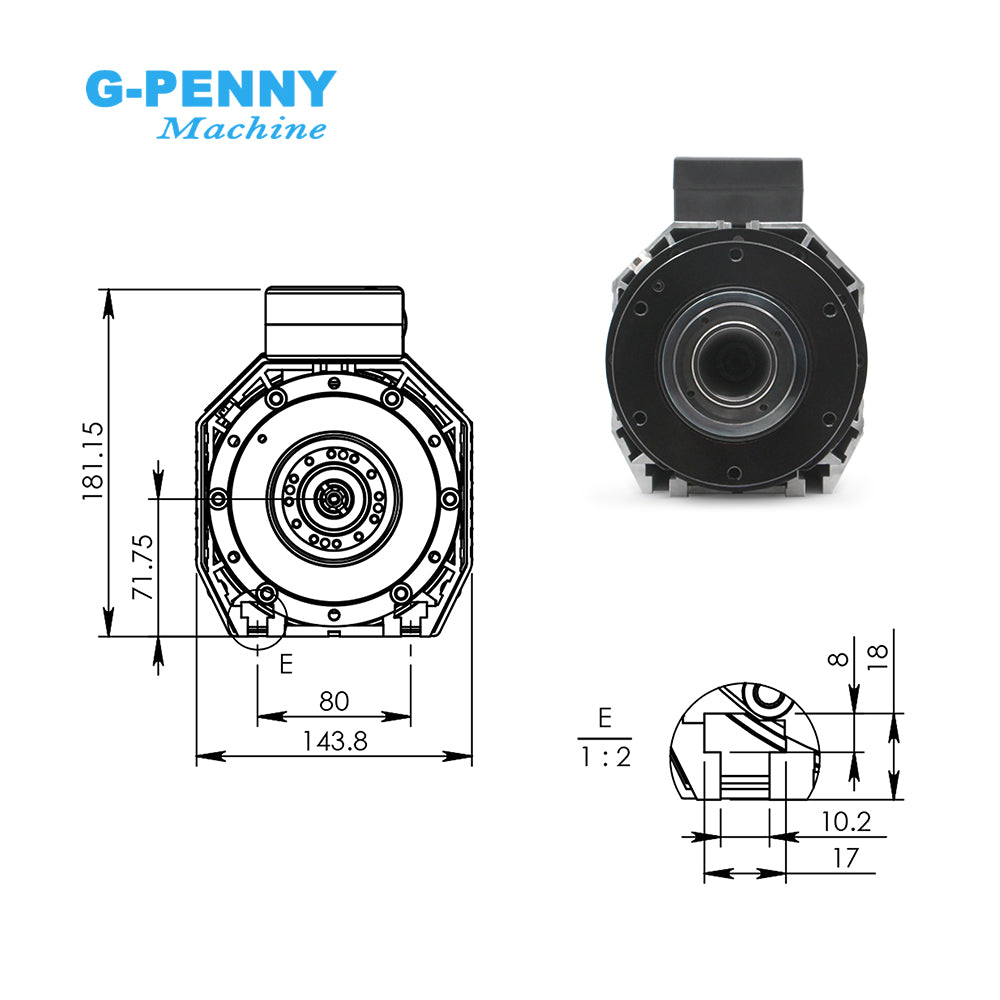

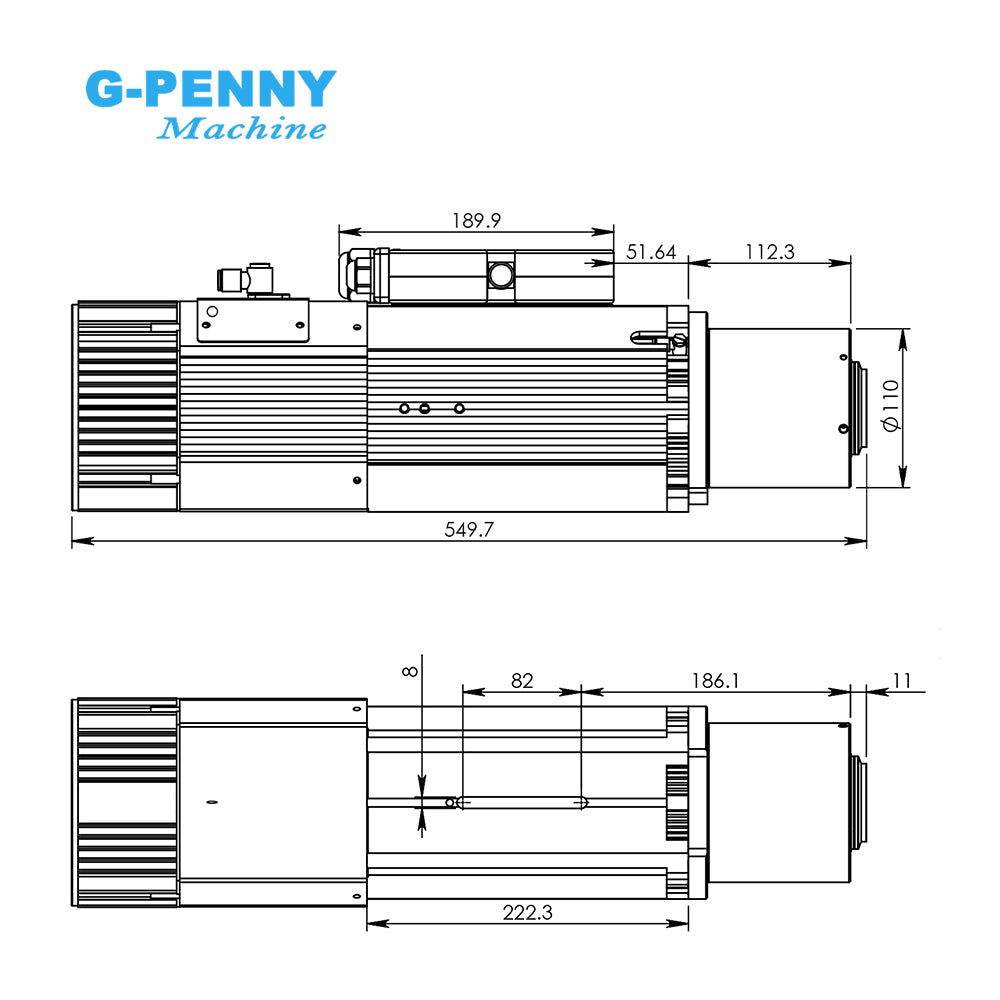

Size: 549.7x178.25x143.8mm
Power: 9.0kw
Voltage: 220v/380v
Speed: 24000rpm
Frequency: 800Hz
Current: 40A/23A
Pole: 4
Bearings Type: 2x7008C DB & 2x7006C DB (4 pcs ceramic ball bearings)
Cooling Way: 230vAC cooling fan
Chunk: ISO30

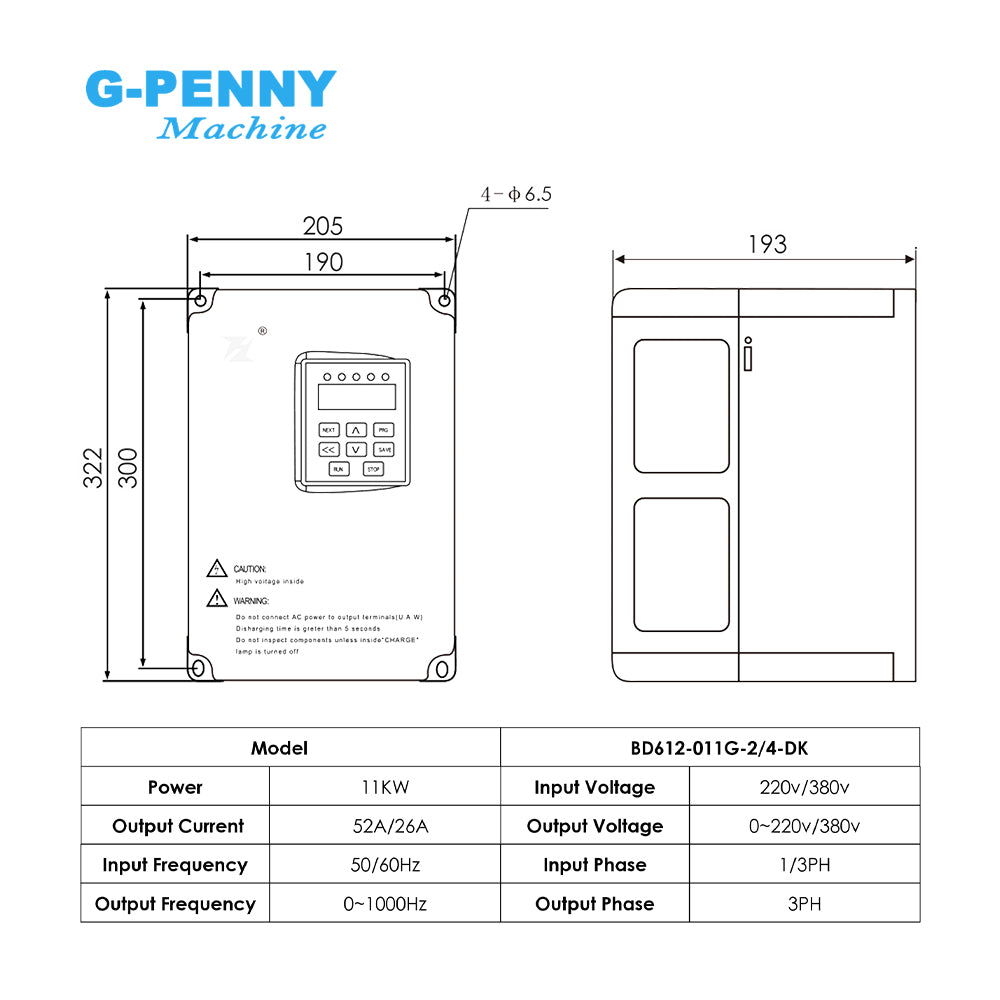

Inverter basic parameter:
Power: 11.0kw
Input Voltage: 220v (±20%)
Input Phase: 1 or 3 phase
Input Frequency: 50-60Hz (±5Hz)
Output Voltage: 220v
Output Phase: 3 phase
Output Current: 45A
Output Frequency: 0-1000Hz
Control Method:V/F control; Open-loop flux vector control
