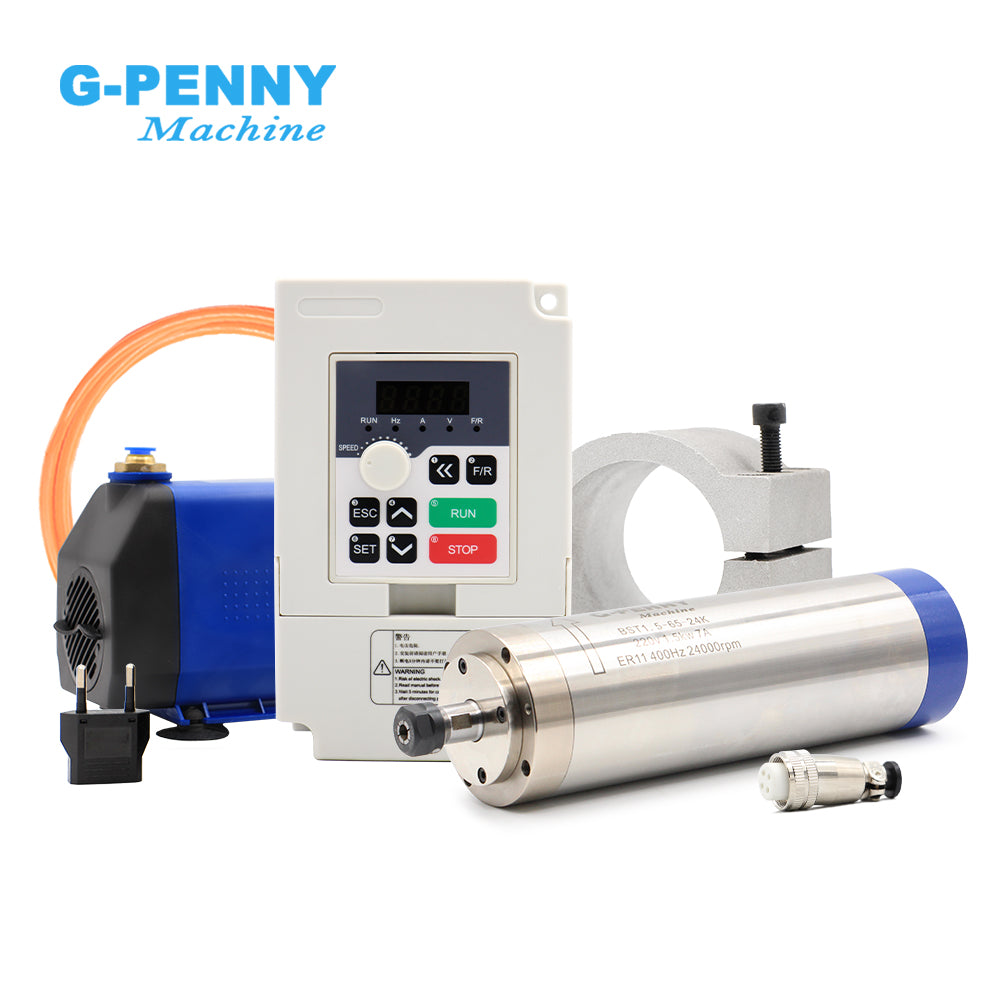

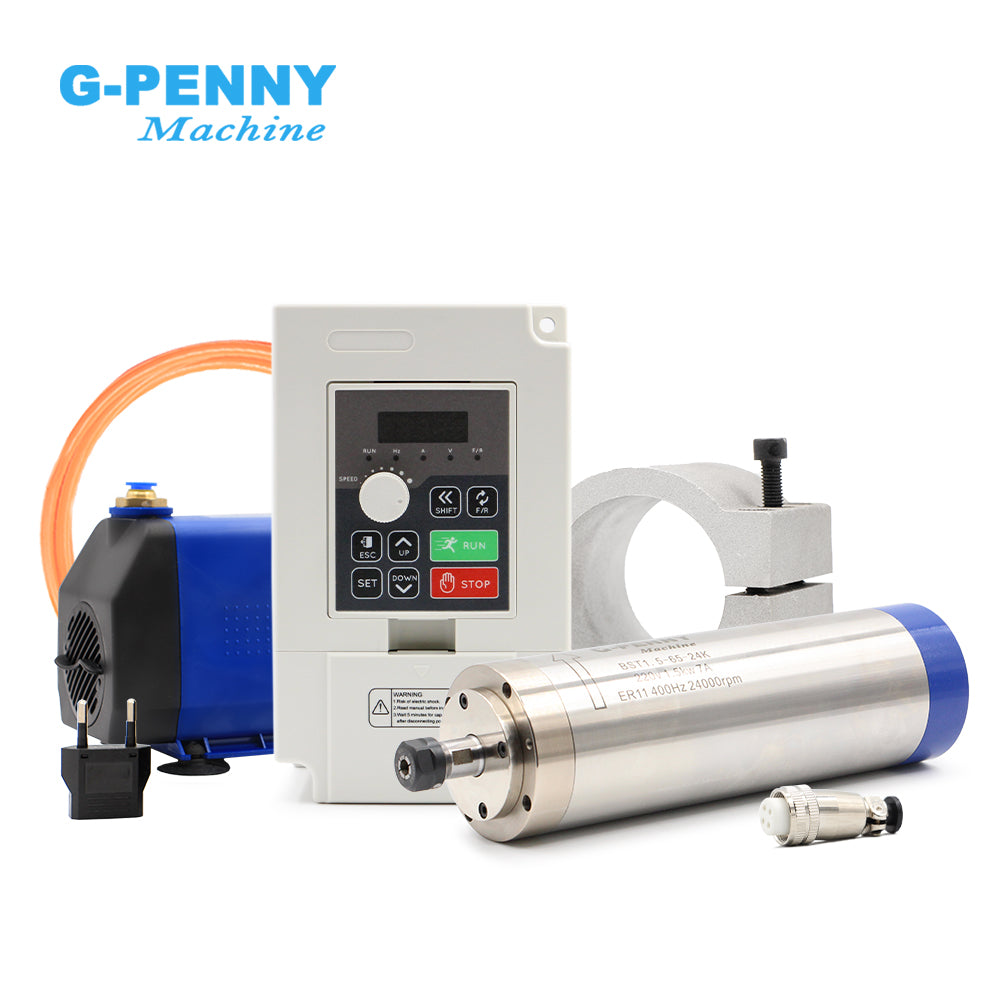

G-penny 1.5KW ER11 110v/220v Water Cooled Spindle 65mm Bracket,1.5kw Inverter,75w Water Pump Spindle Motor Kit
G-penny 1.5KW ER11 110v/220v Water Cooled Spindle 65mm Bracket,1.5kw Inverter,75w Water Pump Spindle Motor Kit
Couldn't load pickup availability

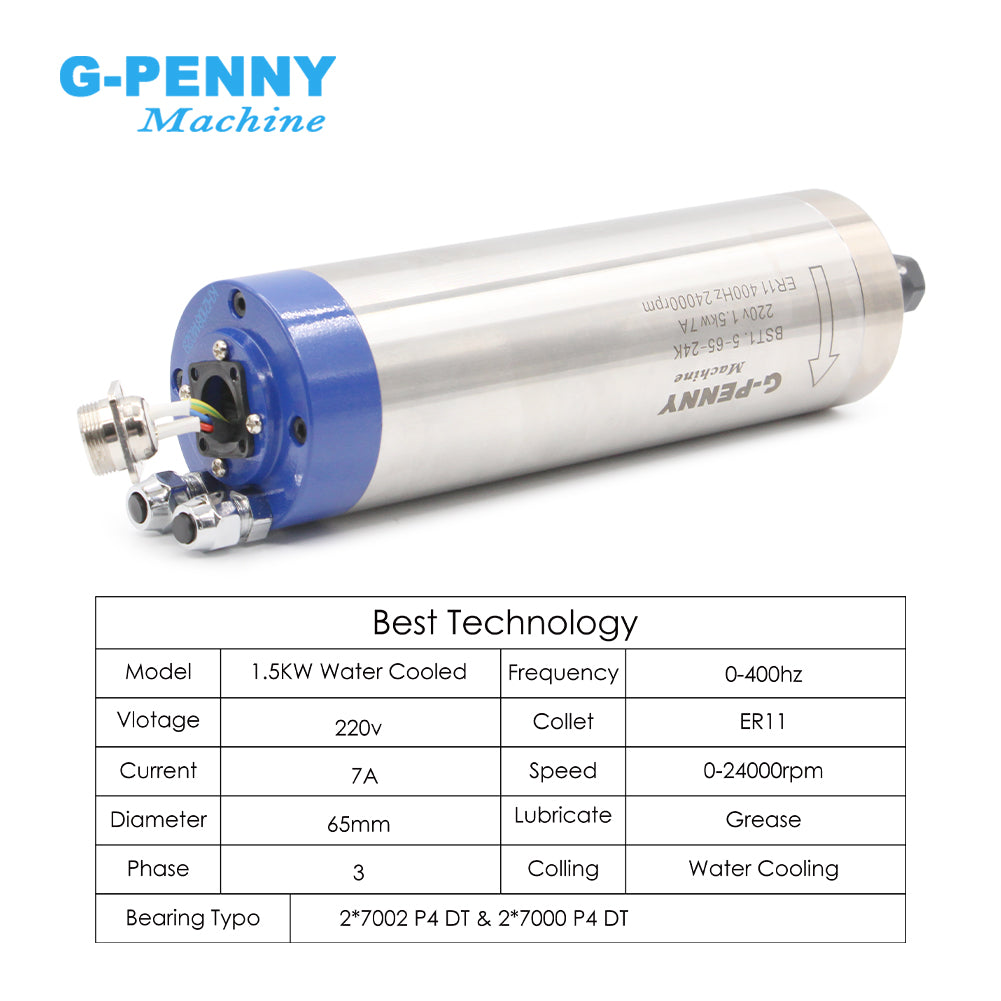

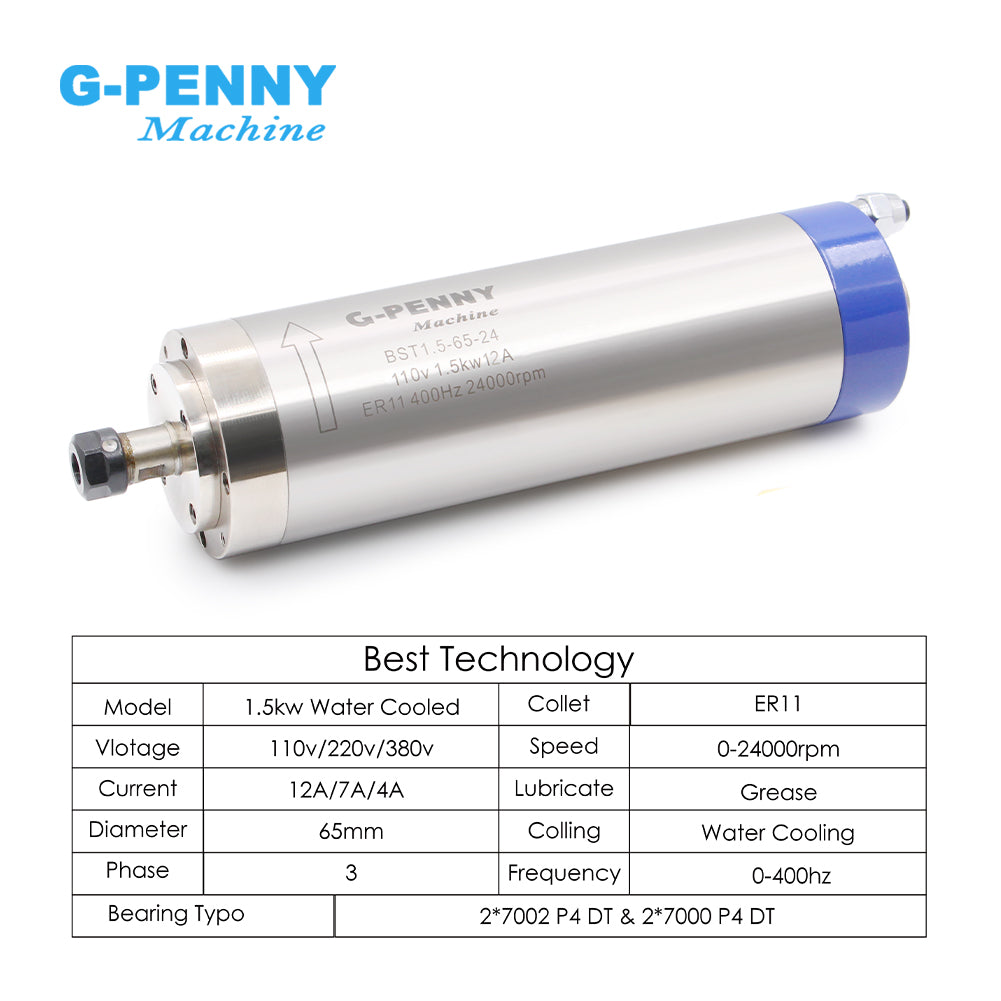

Basic parameter:

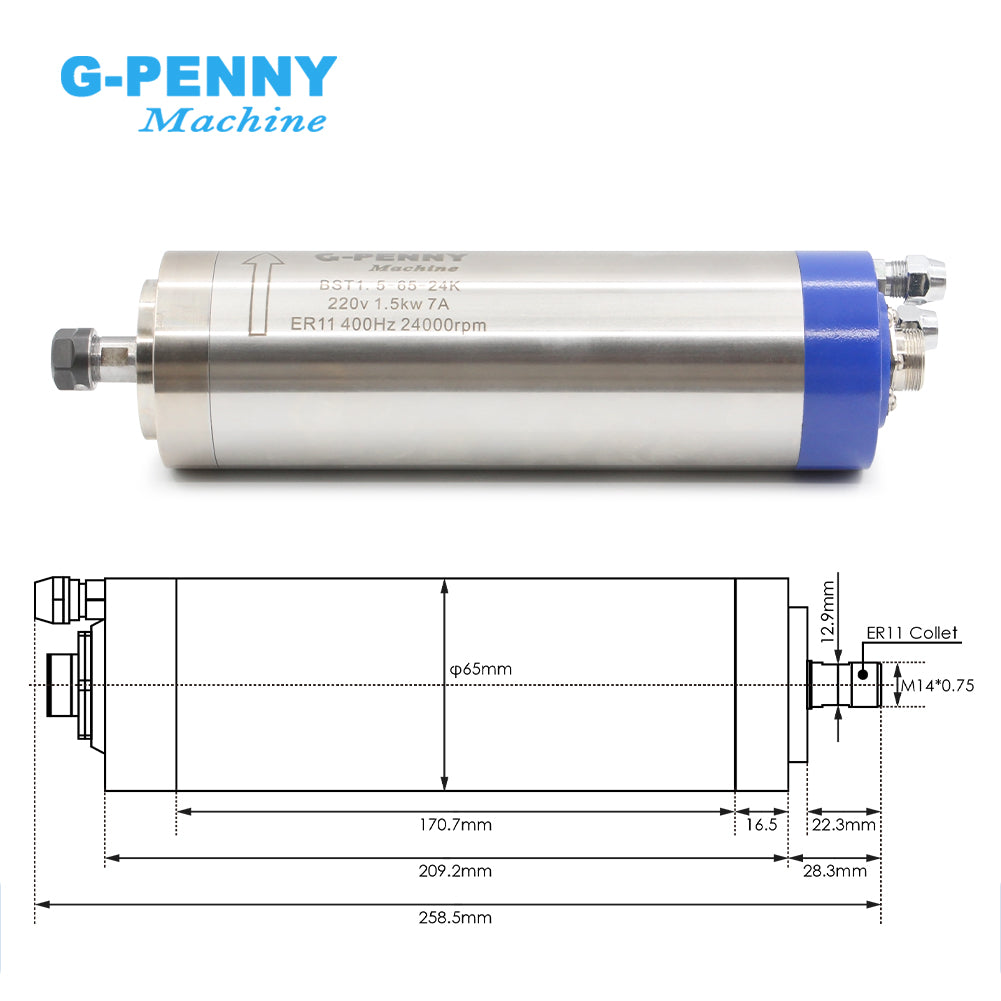

Size: 65 x 209mm (Middle body diameter:65mm;Length:209mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling

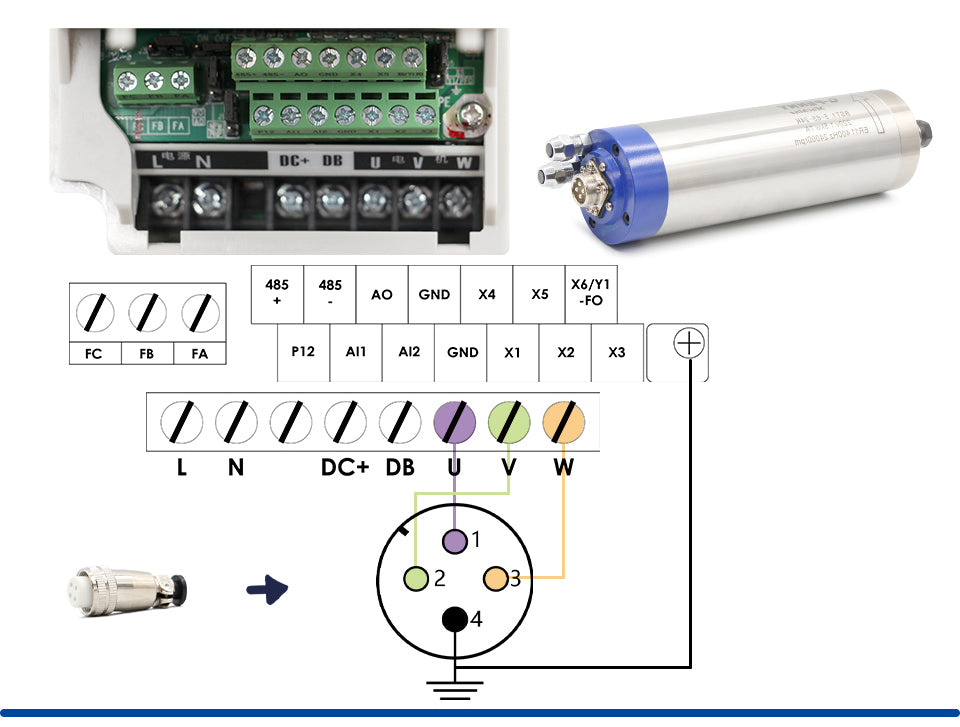

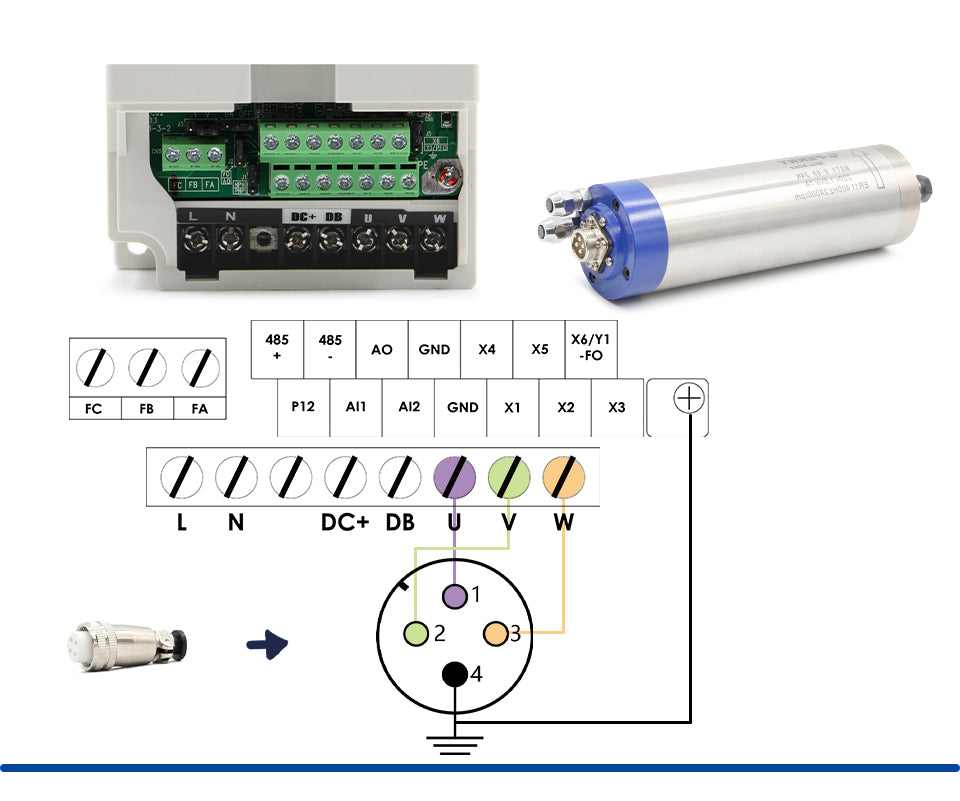

Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to
inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
Fully sealed P4 angular contact bearings
Bearing Type: 2×7002C P4 DT & 2 ×7000C P4 DT
4 pcs angular contact bearings
Water Cooling ER11 collet chunk
Grease Lubrication

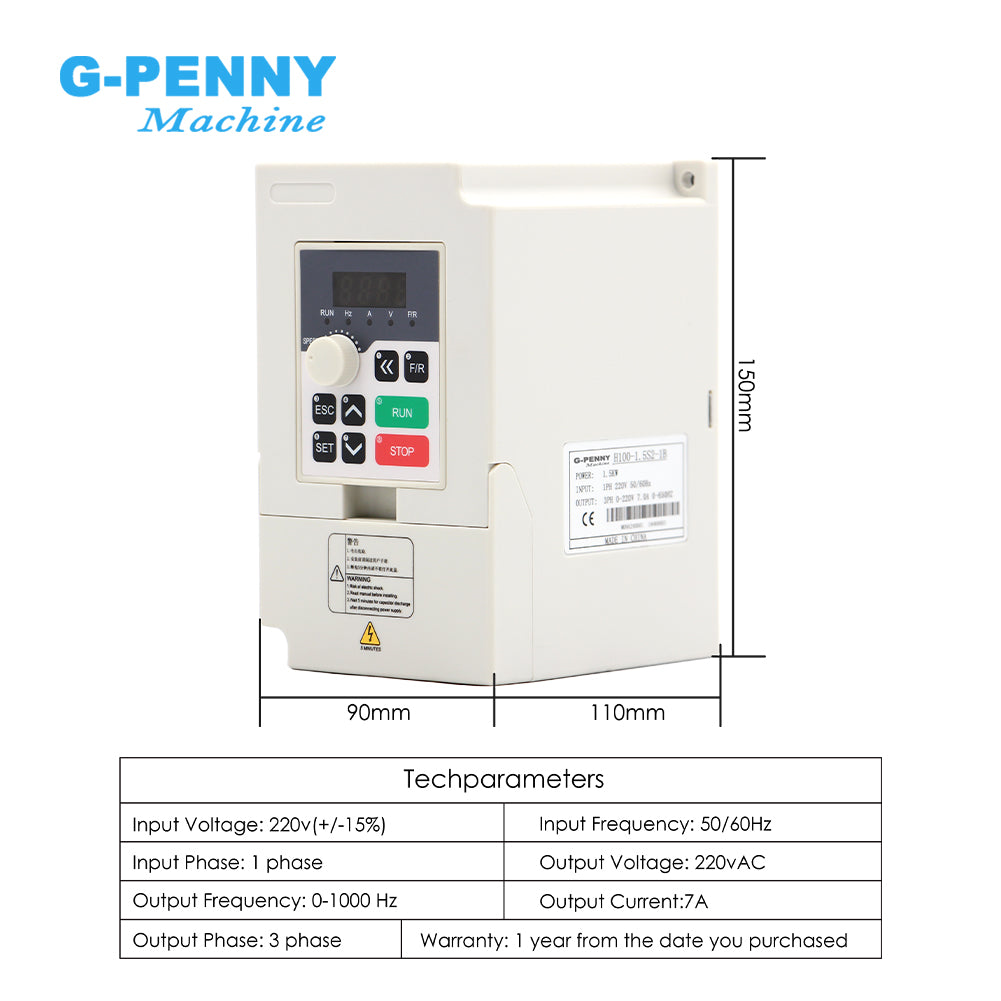

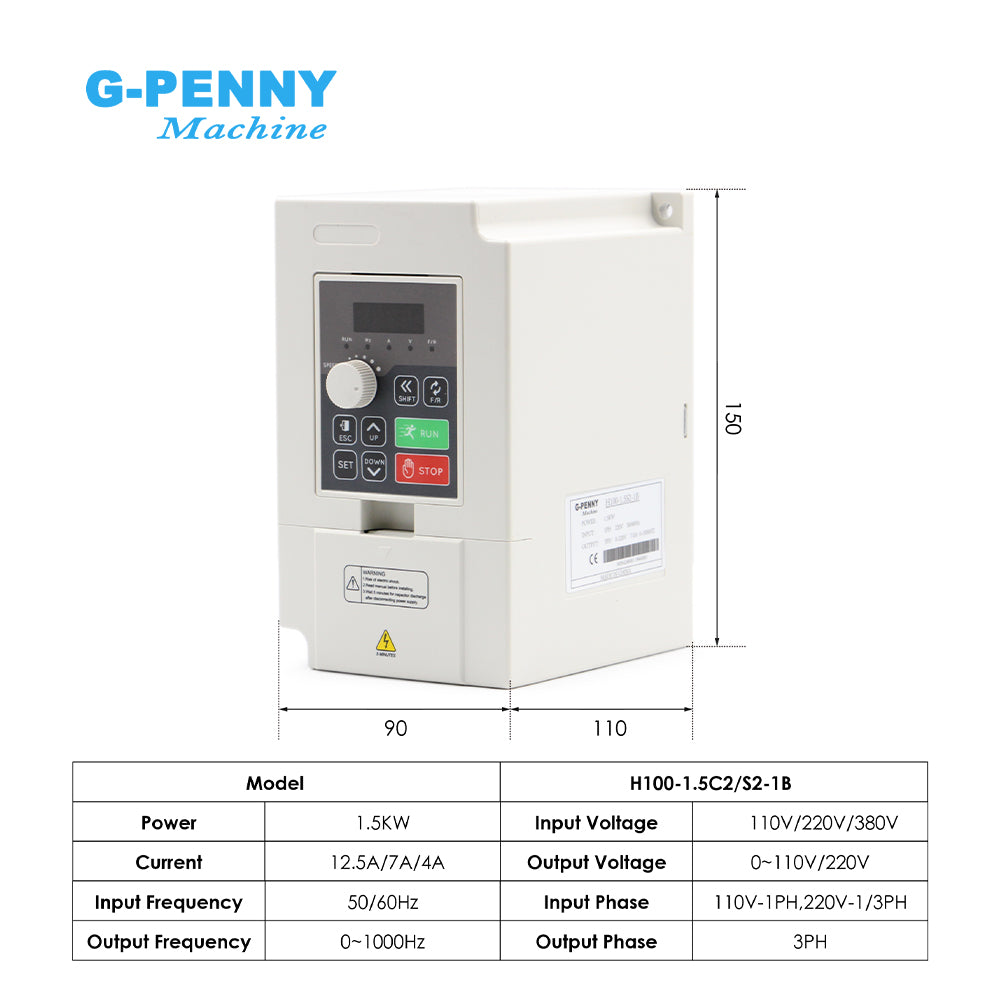

Basic parameter:
Input Voltage: 220V(+/-15%)
Output Voltage: 220VAC
Input Frequency: 50-60 Hz
Output Frequency: 0-1000 Hz
Input Phase: 1 phase
Output Phase: 3 phase
Warranty: 1 year from the date you purchased
