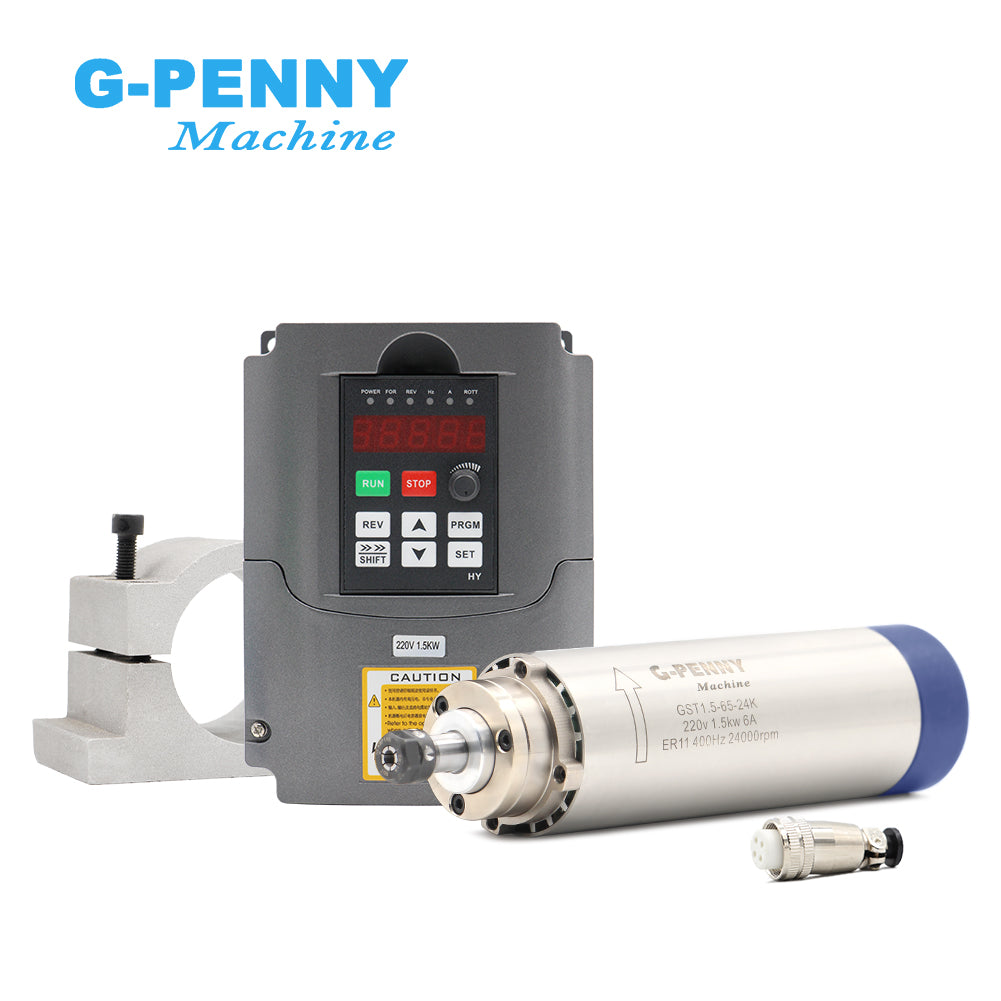

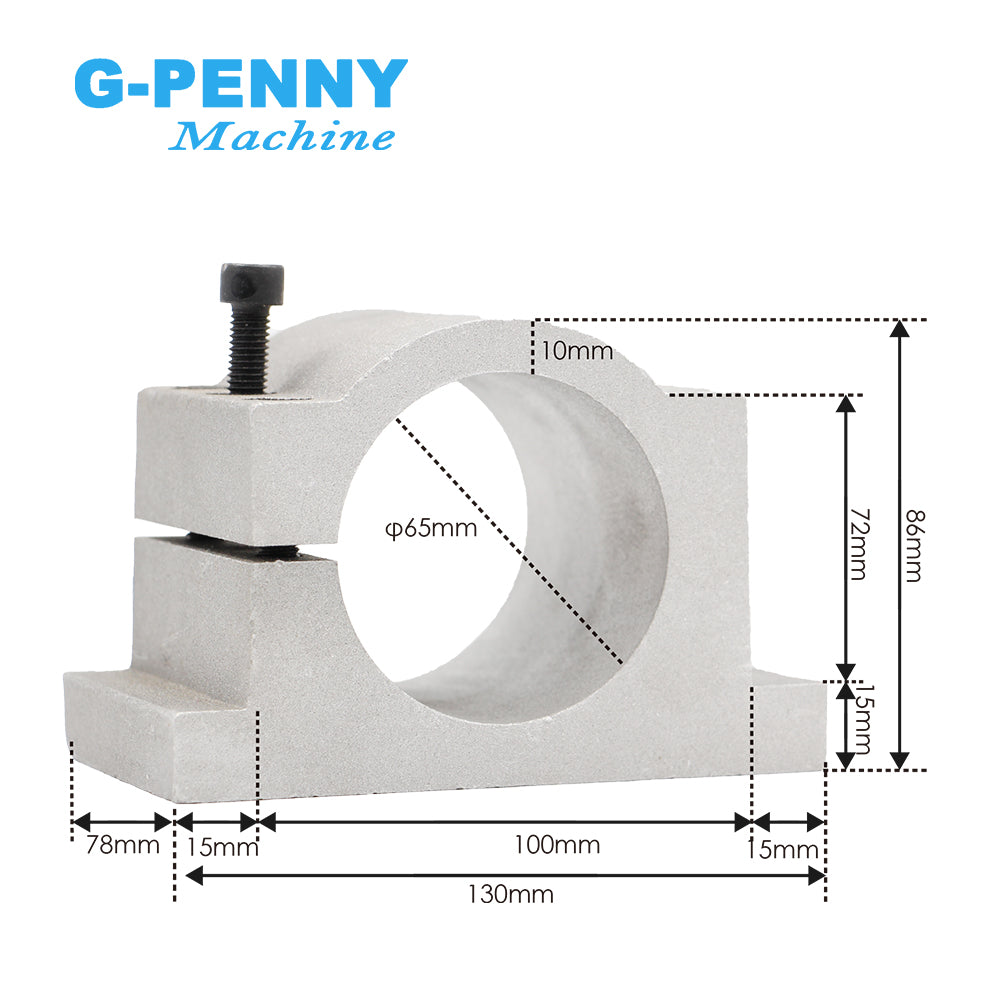

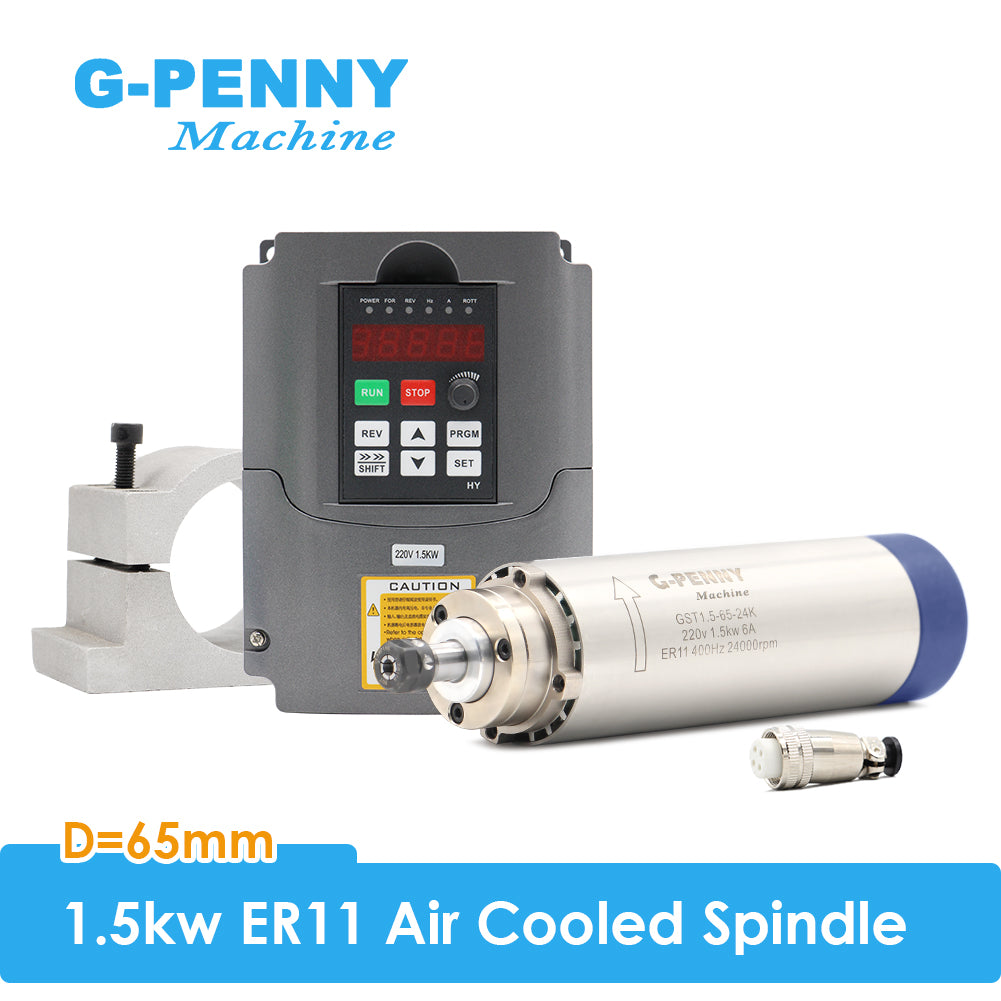

G-Penny 1.5kw ER11 D65 air Cooled Spindle Motor Cnc Router ,1.5kw HY Inverter VFD, 65mm Aluminium Bracket

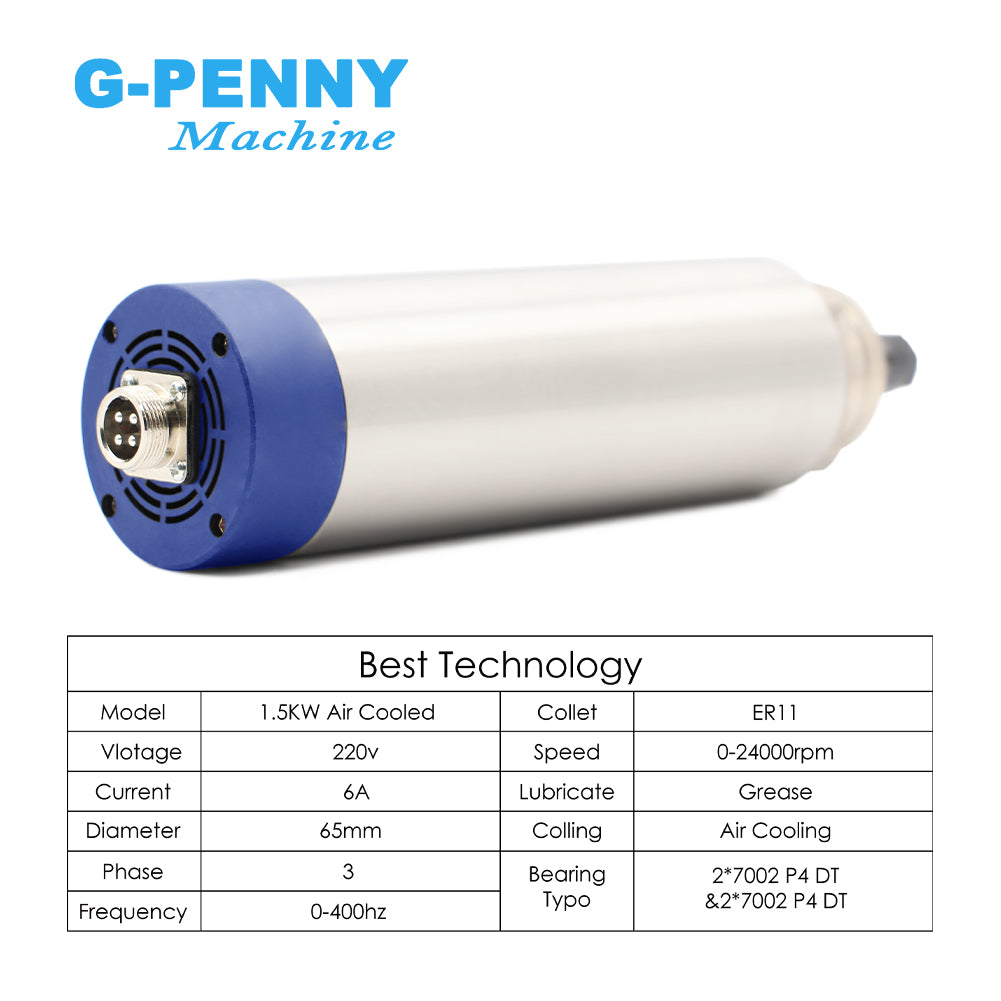

Spindle motor Basic parameter:

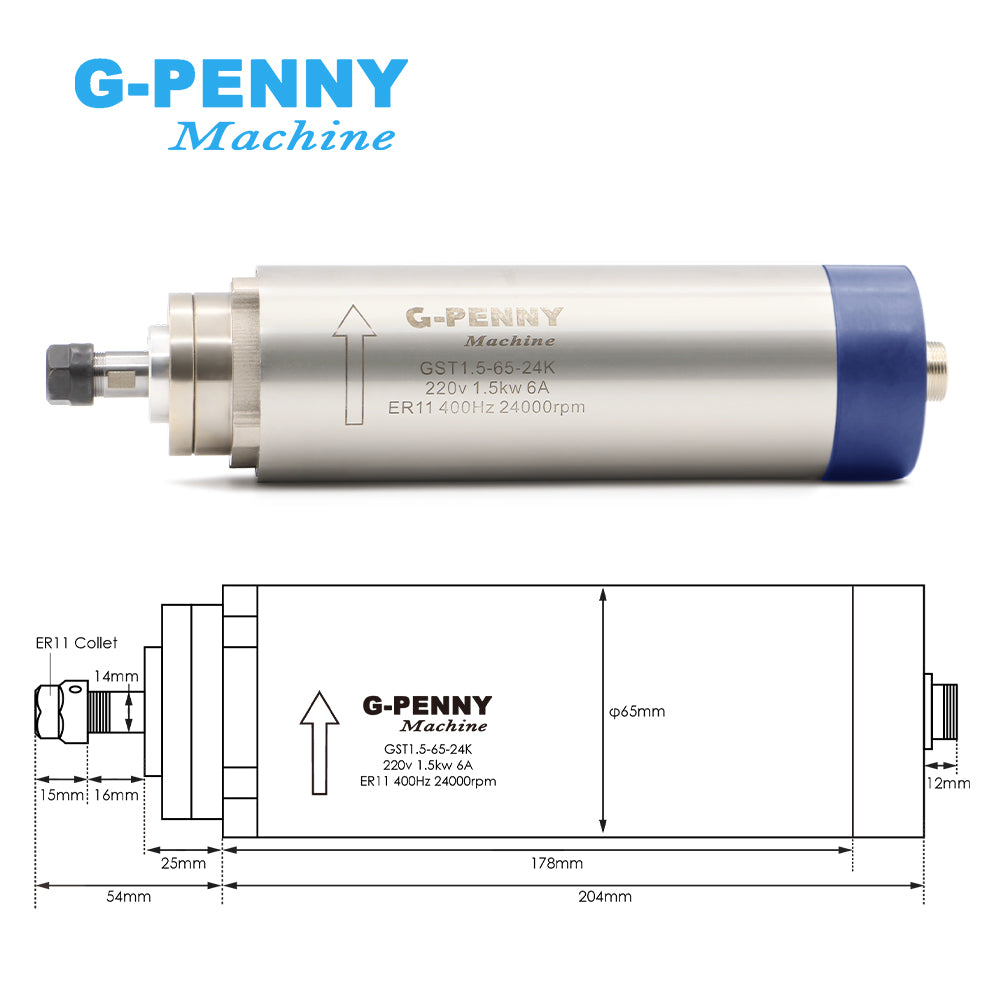

Size:65 x 204mm
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Air cooling

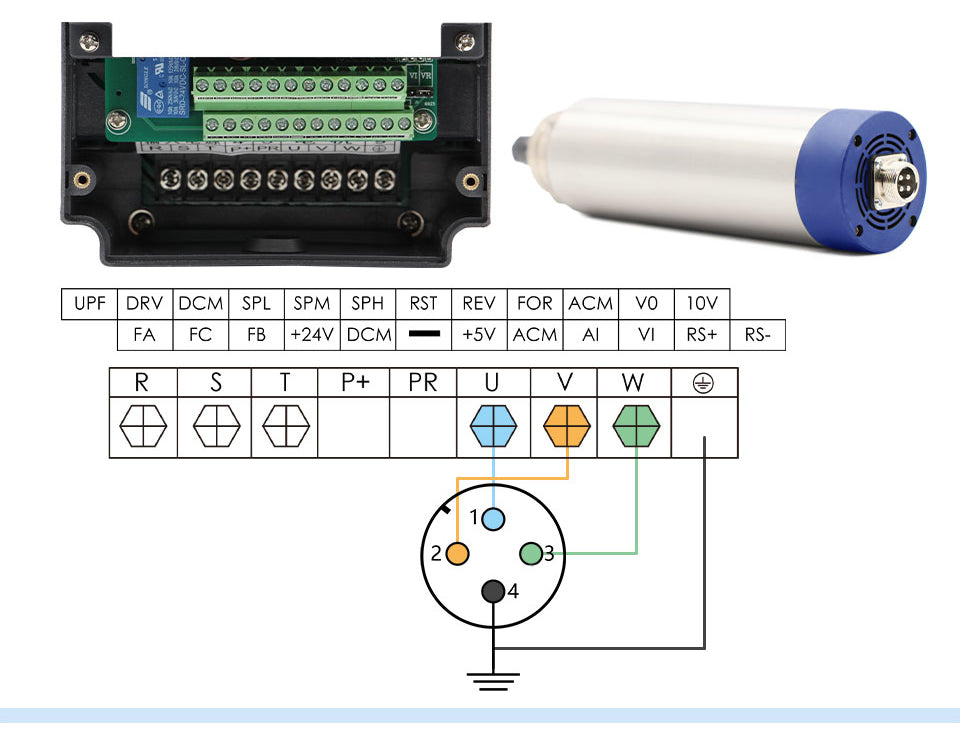

* Power Interface:Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected
to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal
safety!!)
* Power:1.5kw (1HP=0.735kw)
* Voltage:220vAC(If you need 110v/380v spindle ,please leave message to us,thank you)
* Current:6A
* Frequency:0-400Hz
* Speed:0-24000rpm
* Runout Off:0.01mm
* Bearing Type:2X7002C P4 DT and 2X7002C P4 DT
* Full sealed angular contact bearings
* Collet:ER11
* Clip Knifediameter: 7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
* Air Cooling ER11 collet chunk
* Grease Lubrication

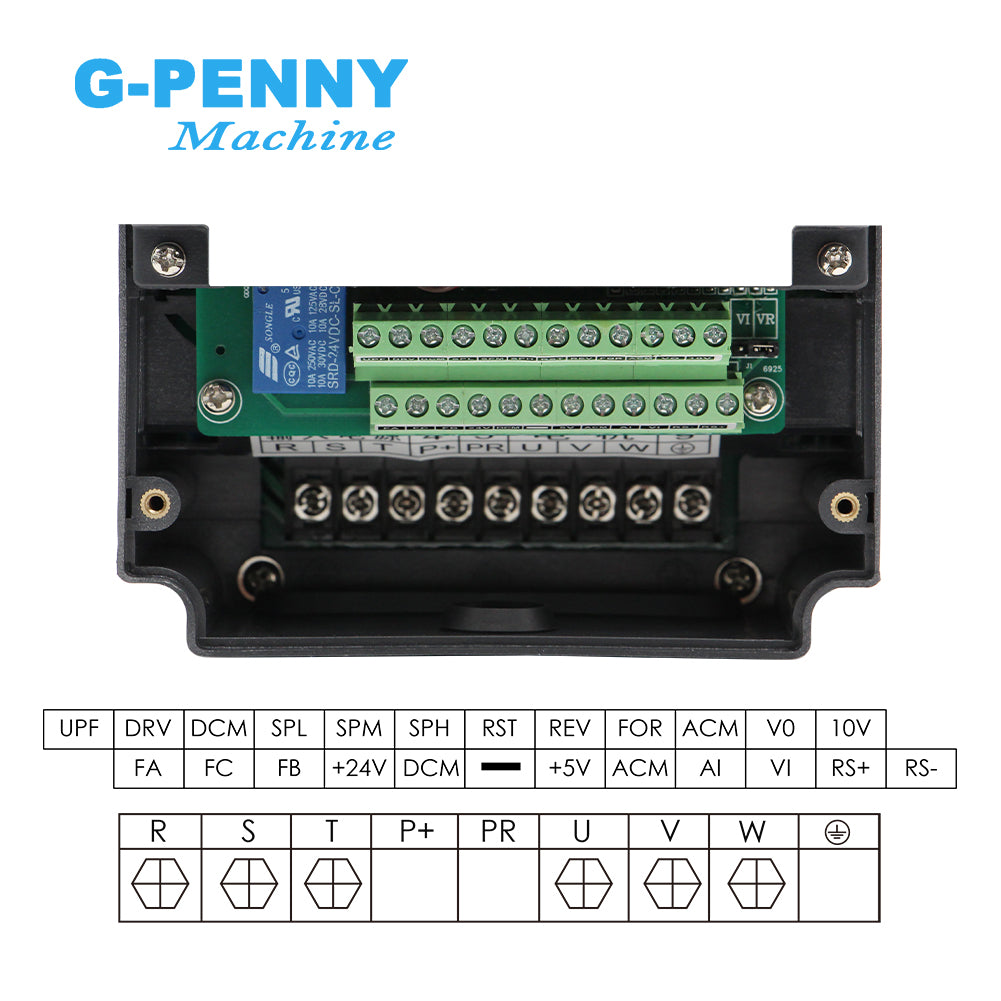

Inverter Basic parameter:

Inverter Type:Huanyang 220v 1.5kw
* Input Voltage:220V(+/-15%)
* Output Voltage:220vAC
* Input Frequency:48-63 Hz
* Output Frequency:0-400 Hz
* Input Phase: 1 or 3 phase
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
