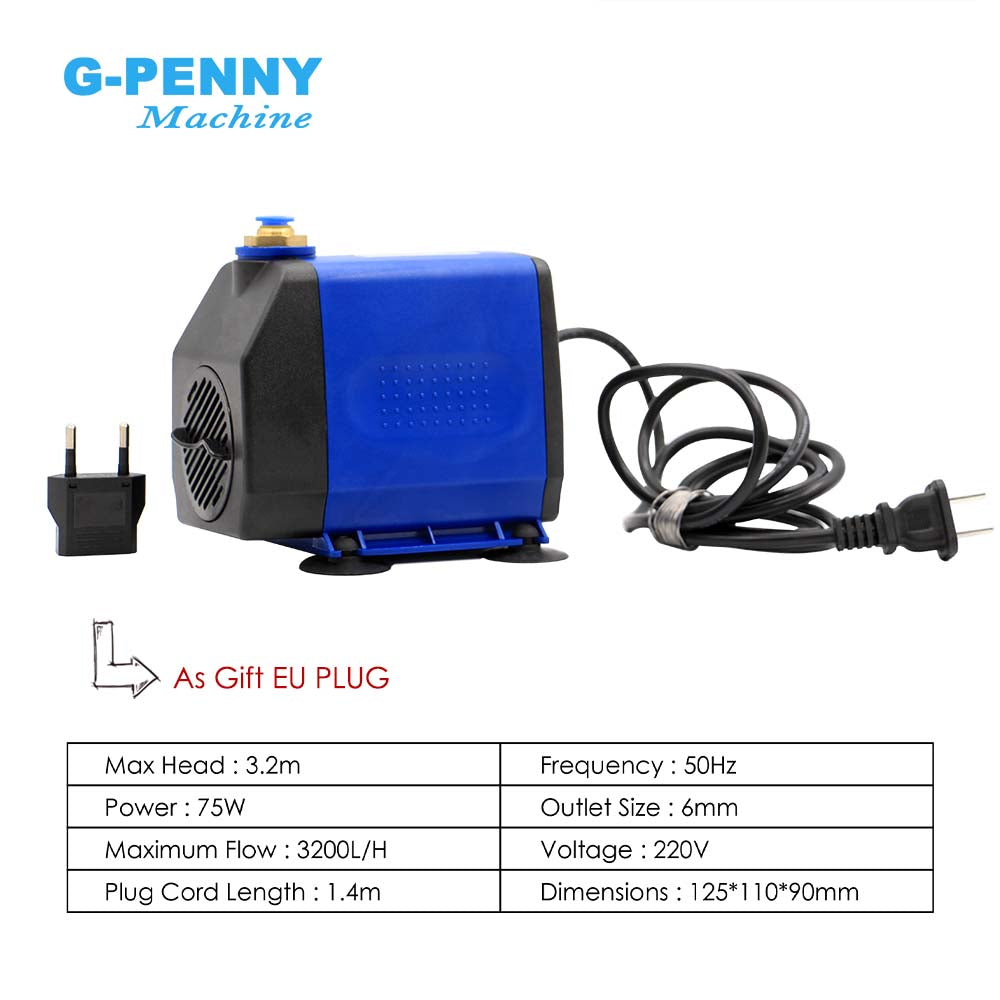

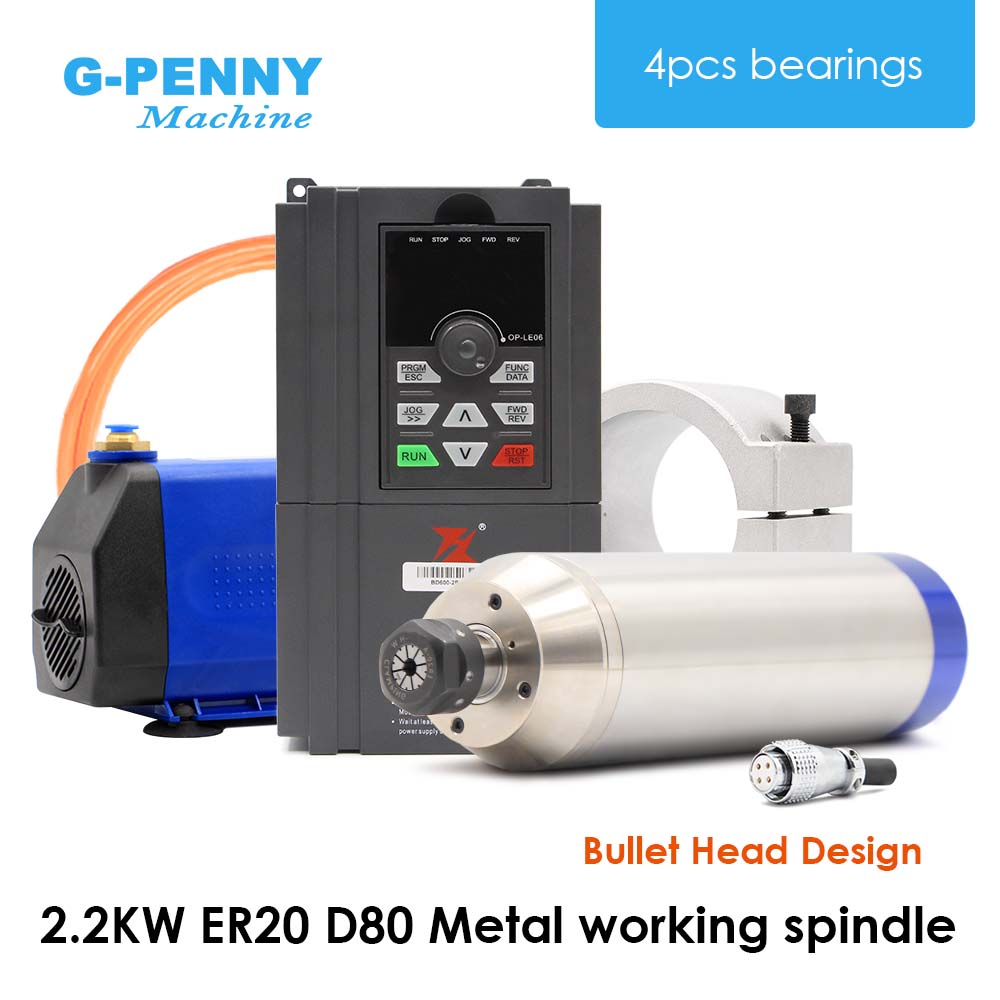

G-Penny 2.2KW ER20 D80 220V/380V Bullet type metal working water cooled spindle motor, 2.2KW BD600 Inverter, 80w water pump, 80mm bracket kit
G-Penny 2.2KW ER20 D80 220V/380V Bullet type metal working water cooled spindle motor, 2.2KW BD600 Inverter, 80w water pump, 80mm bracket kit
Couldn't load pickup availability

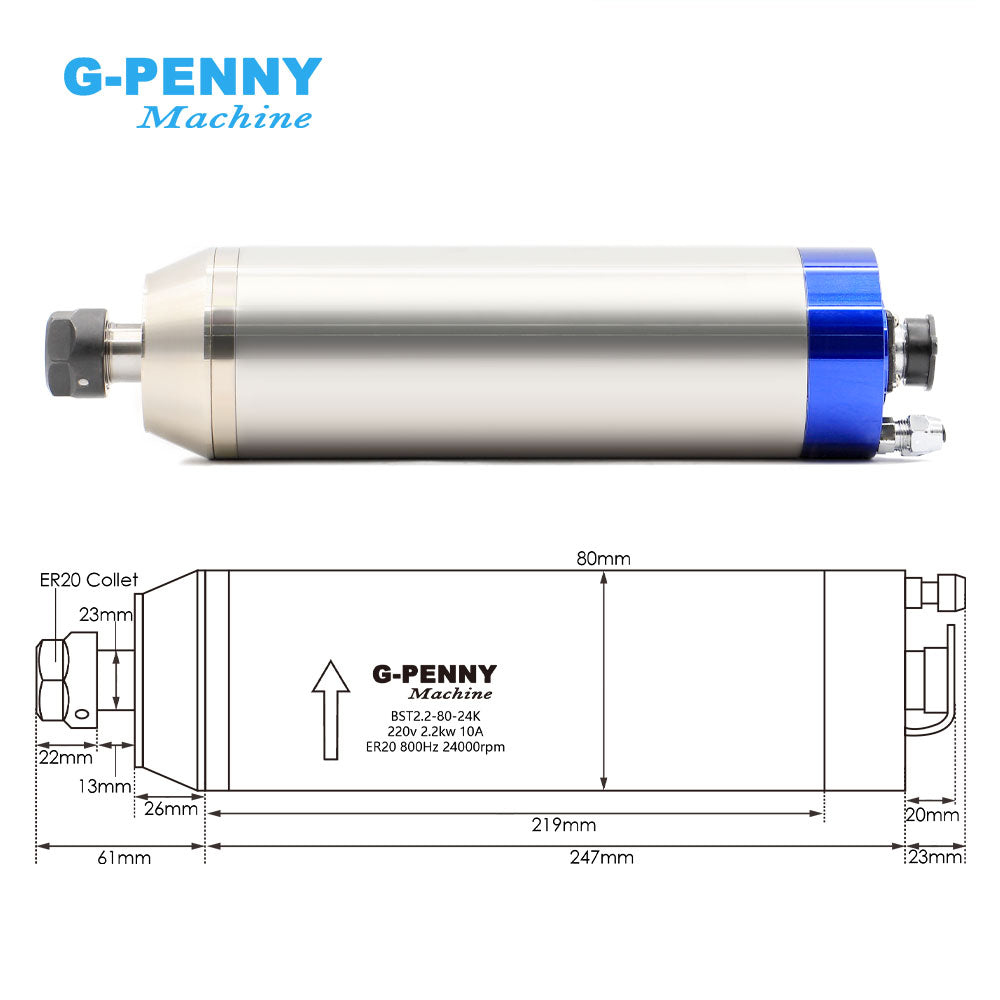

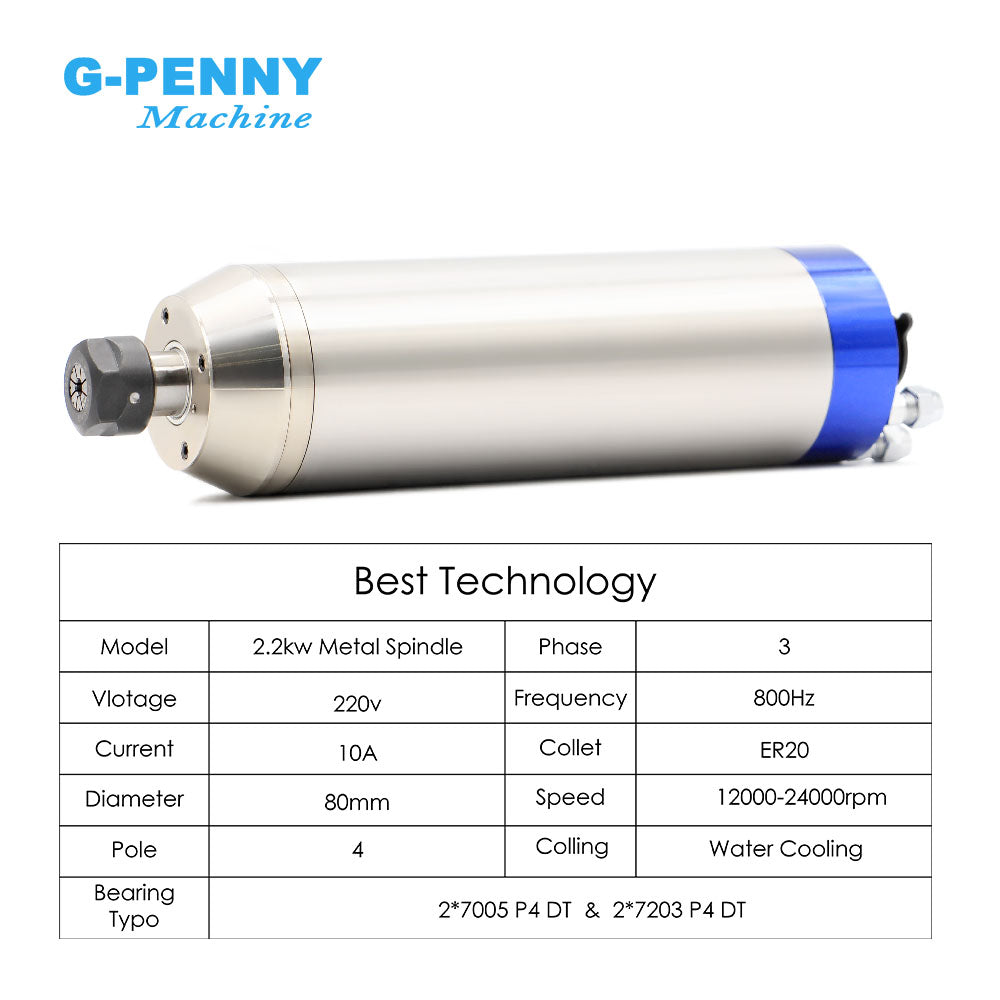

Spindle basic parameter:
Size:80x318mm (Middle body diameter:80mm x Length:272mm)
Cooling: Water cooling
Power: 2.2kw
Voltage: 220v/380v
Current: 10A / 5.5A
Frequency: 400Hz / 800Hz
Speed: 24000rpm
Pole: 2 / 4
Runout Off: Less than 0.01mm
Diameter(mm):80
Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT
4pcs Ceramic Ball Bearings(fully sealed angular contact bearings)
Collet: ER20
Water Cooling ER20 collet chunk
Grease Lubrication
