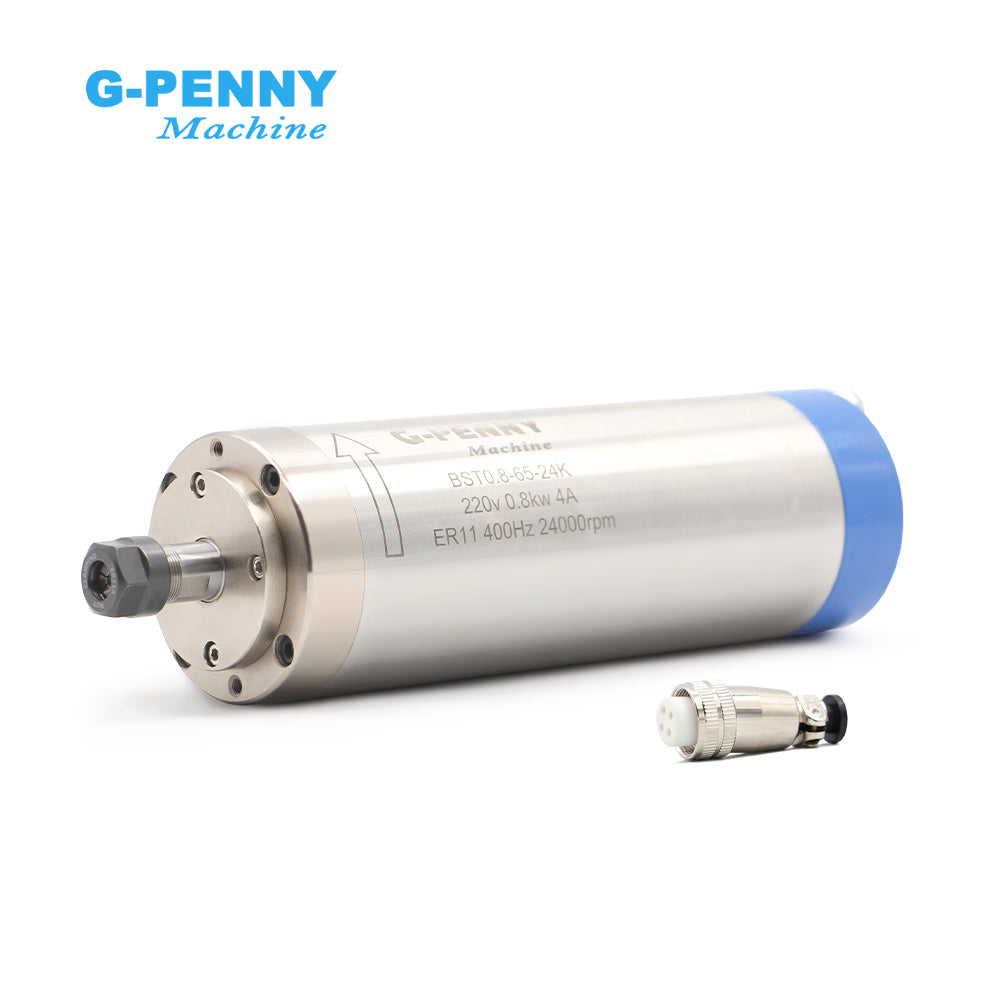

G-Penny 0.8KW ER11 D65 110v/220v water cooled spindle motor Wood Working spindle

Basic parameter:

• Size:65x195mm ( Body diameter:65mm;  Length:195mm )

• Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

• Cooling: Water cooling

• Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)

• Power: 0.8kw (1HP=0.735kw)

• Voltage: 220vAC(If you need 110v/380v spindle ,please leave message to us,thank you)

• Frequency: 0-400Hz

• Speed: 0-24000rpm

• Runout Off: 0.01mm

• 4pcs full sealed P4 angular contact ball bearings

• Bearing Type: 2×7002C P4 DT& 2 ×7000C P4 DT

• Water Cooling ER11 collet chunk

• Grease Lubrication

• Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
