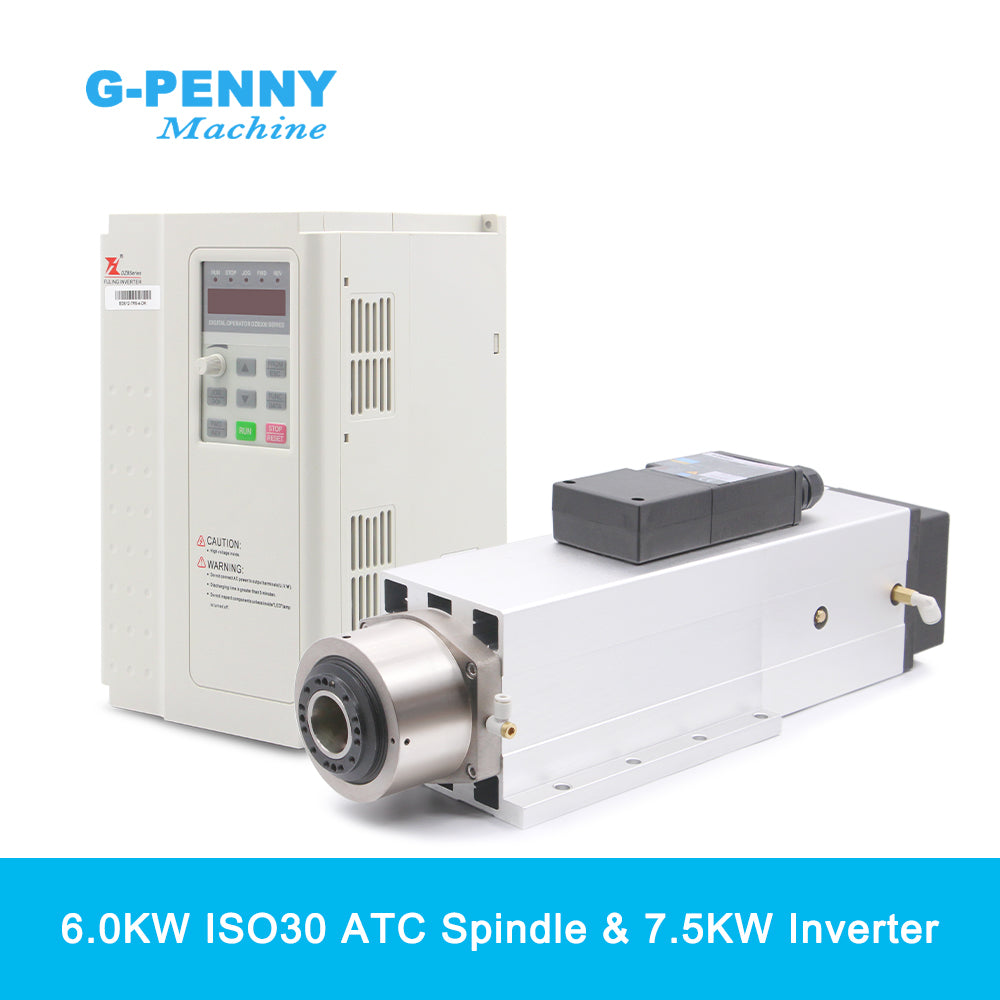

G-Penny Machine 6.0KW ISO30 ATC Spindle motor Air cooled with 7.5KW Inverter

G-Penny Machine 6.0KW ISO30 ATC Spindle motor Air cooled with 7.5KW Inverter

Regular price $1,125.00 USD
Regular price Sale price $1,125.00 USD
Sale Sold out
Voltage

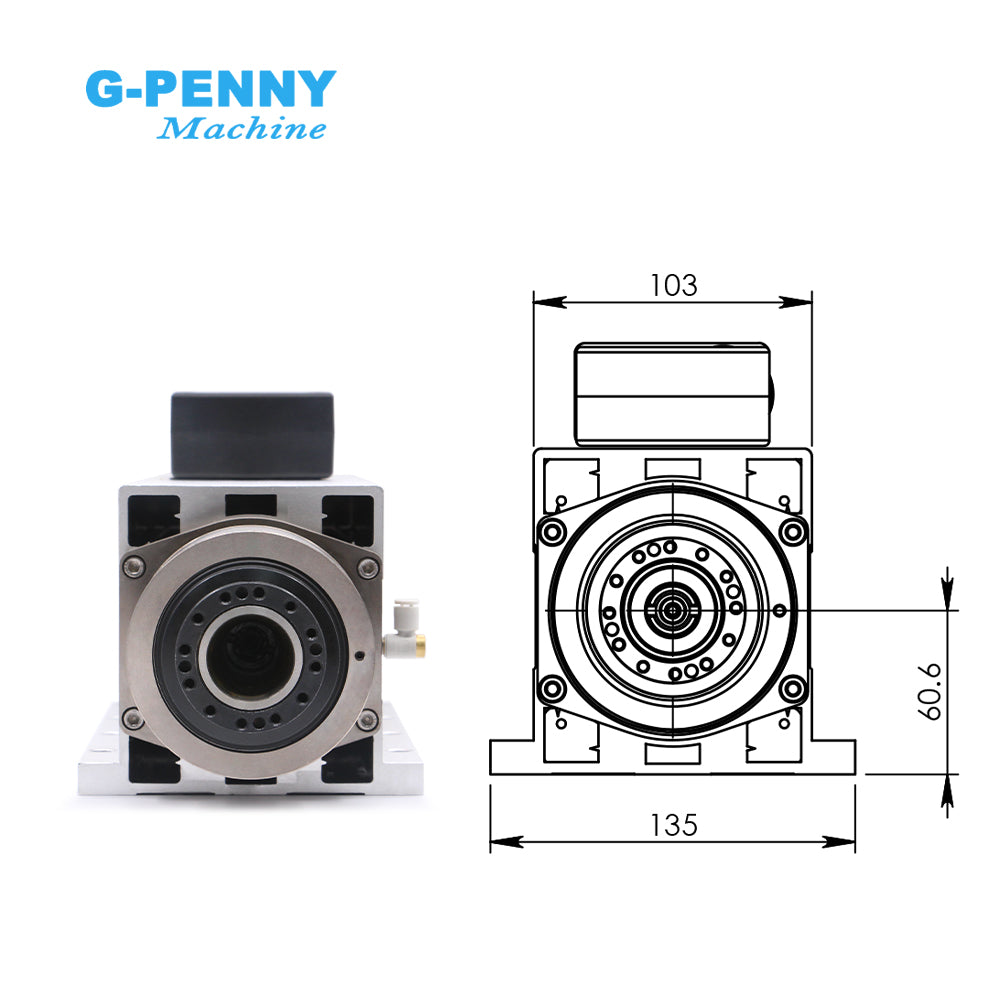

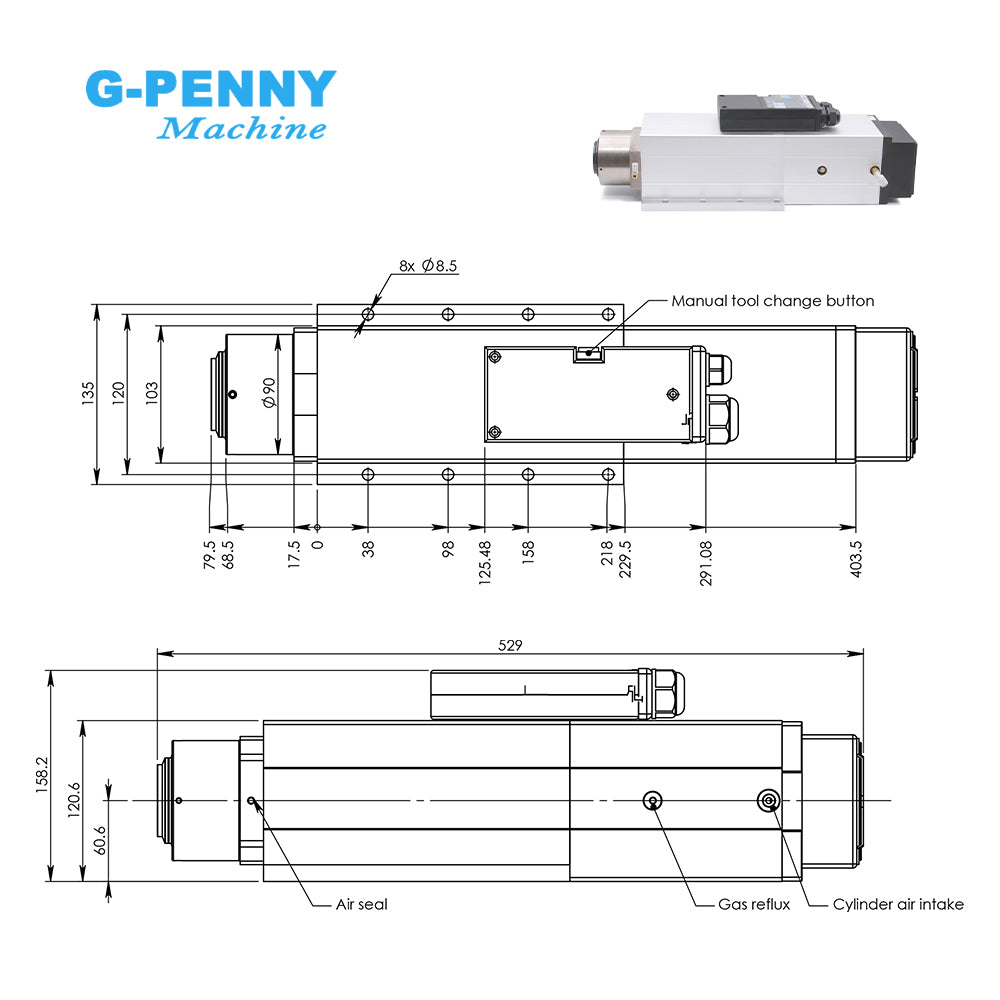

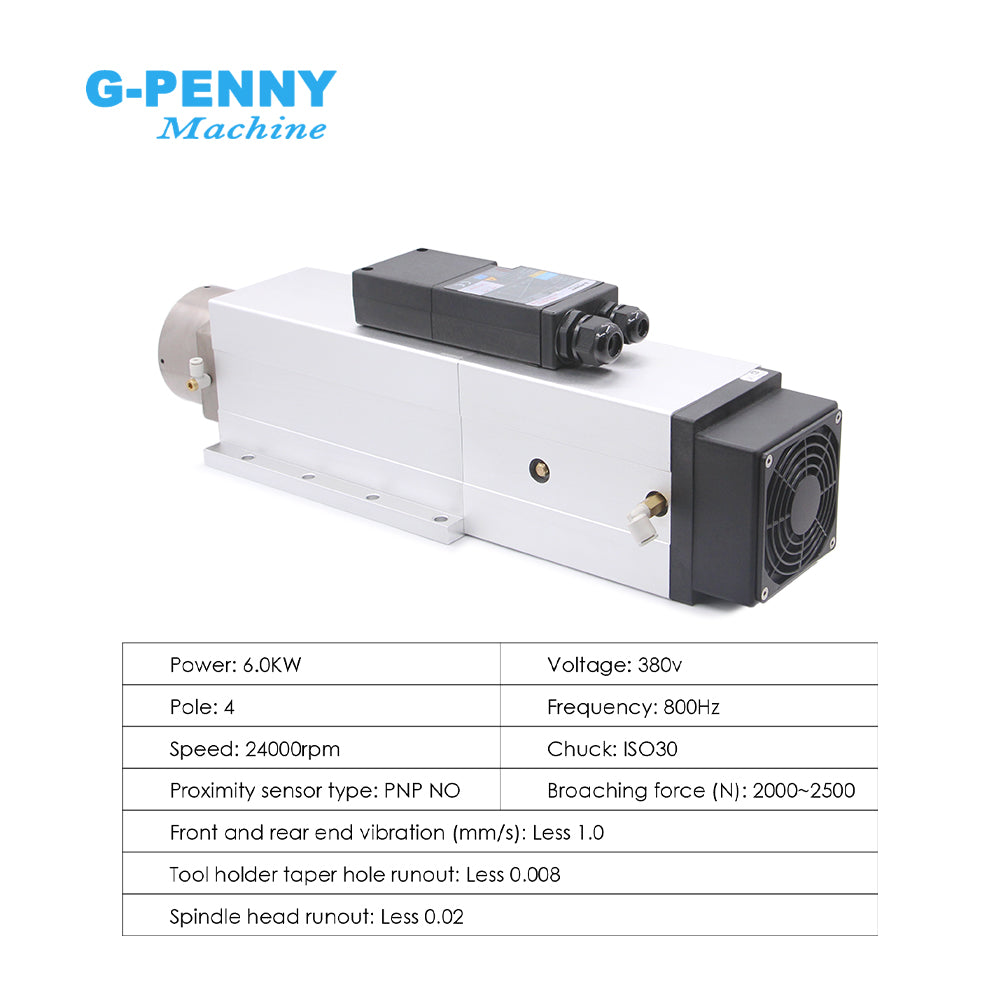

Spindle motor Basic parameter:
Power: 6.0KW
Voltage: 220v/380v
Pole: 4
Frequency: 800Hz
Speed: 24000rpm
Chuck: ISO30
Proximity sensor type: PNP NO
Broaching force (N): 2000~2500
Bearings Type: 2x7008C DB & 2x7006C DB (4pcs Ceramic ball bearings)
Front and rear end vibration (mm/s): Less 1.0
Tool holder taper hole runout: Less 0.008
Spindle head runout: Less 0.02

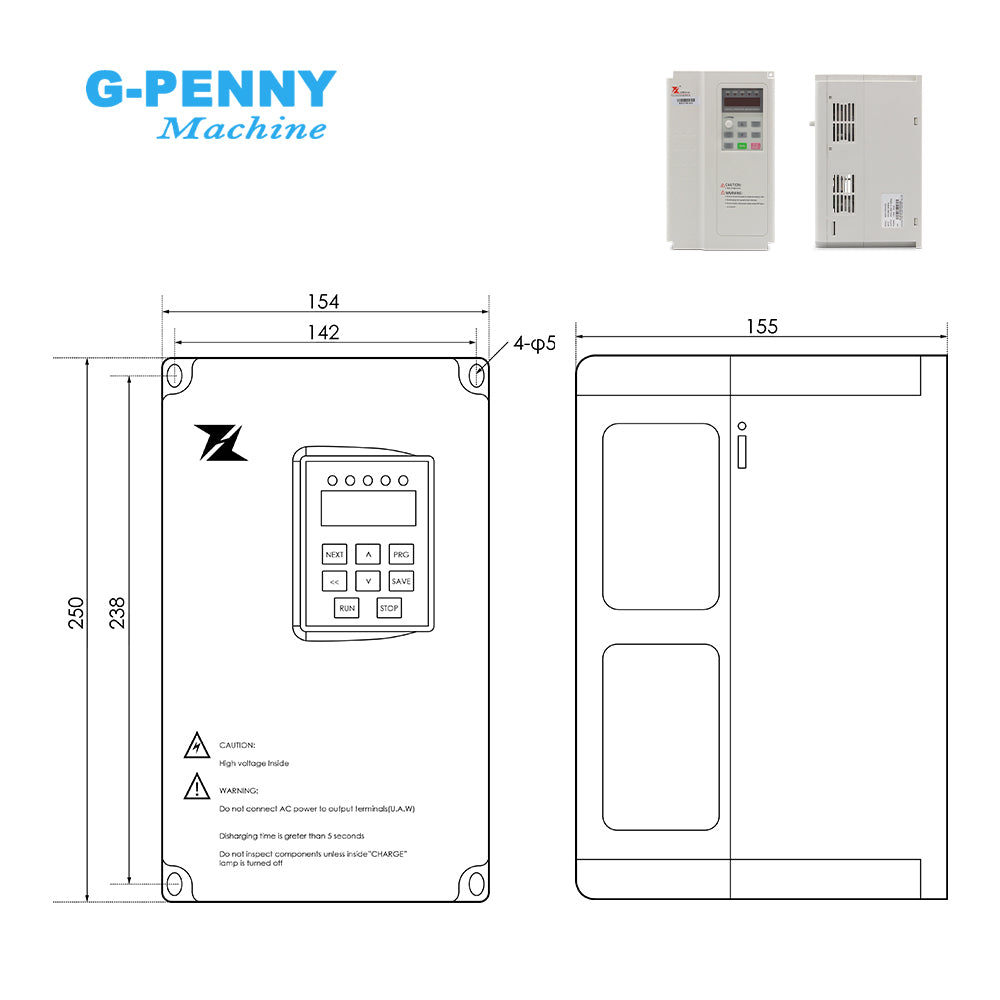

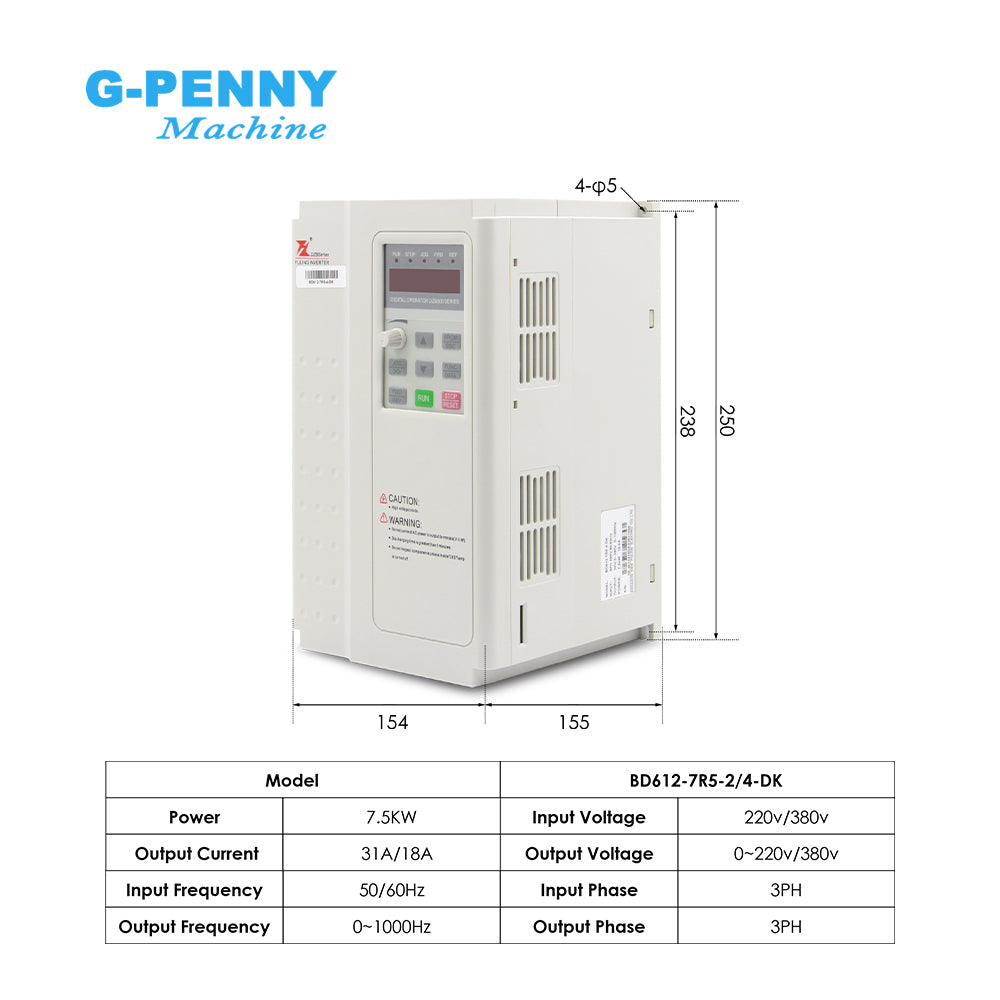

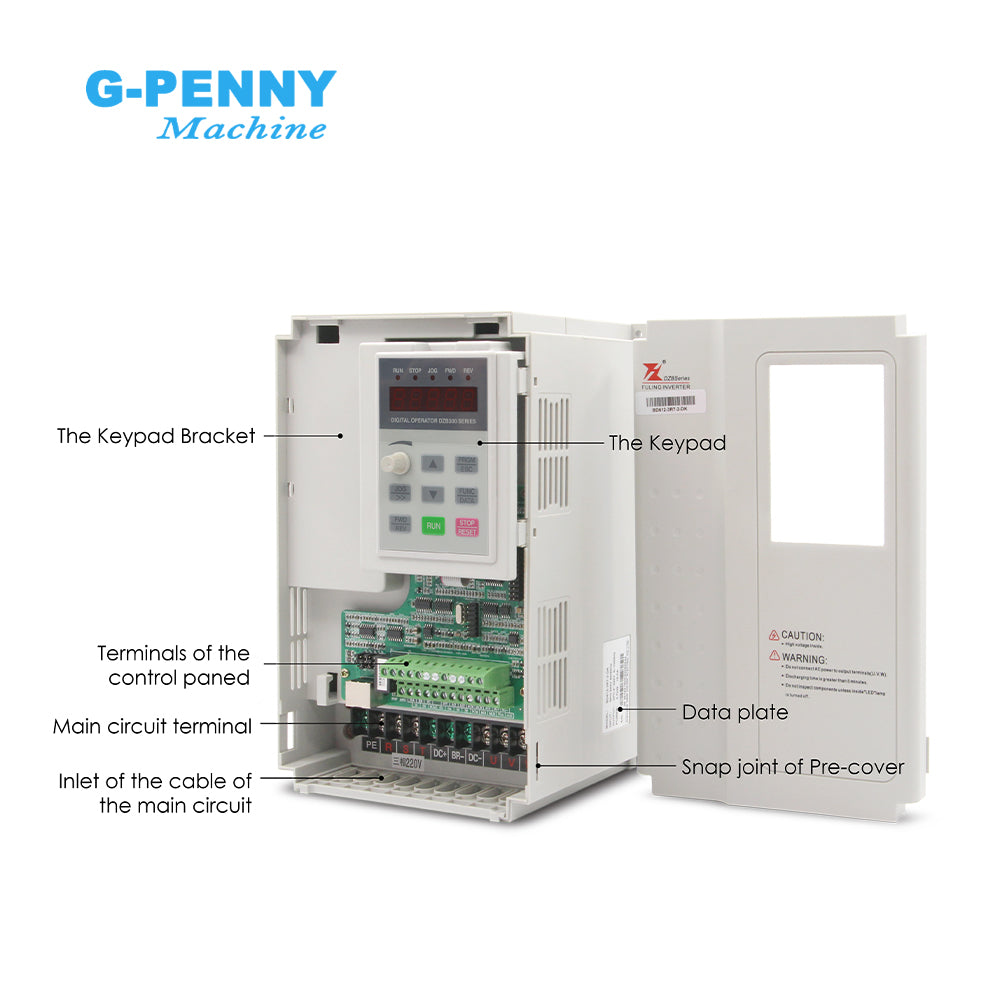

Inverter Basic parameter:
Power: 7.5kw
Input Voltage: 380v (±20%)
Input Phase: 3 phase
Input Frequency: 50-60Hz (±5Hz)
Output Voltage: 220v/380v
Output Phase: 3 phase
Output Current: 31A/18A
Output Frequency: 0-1000Hz
Control Method: V/F control
