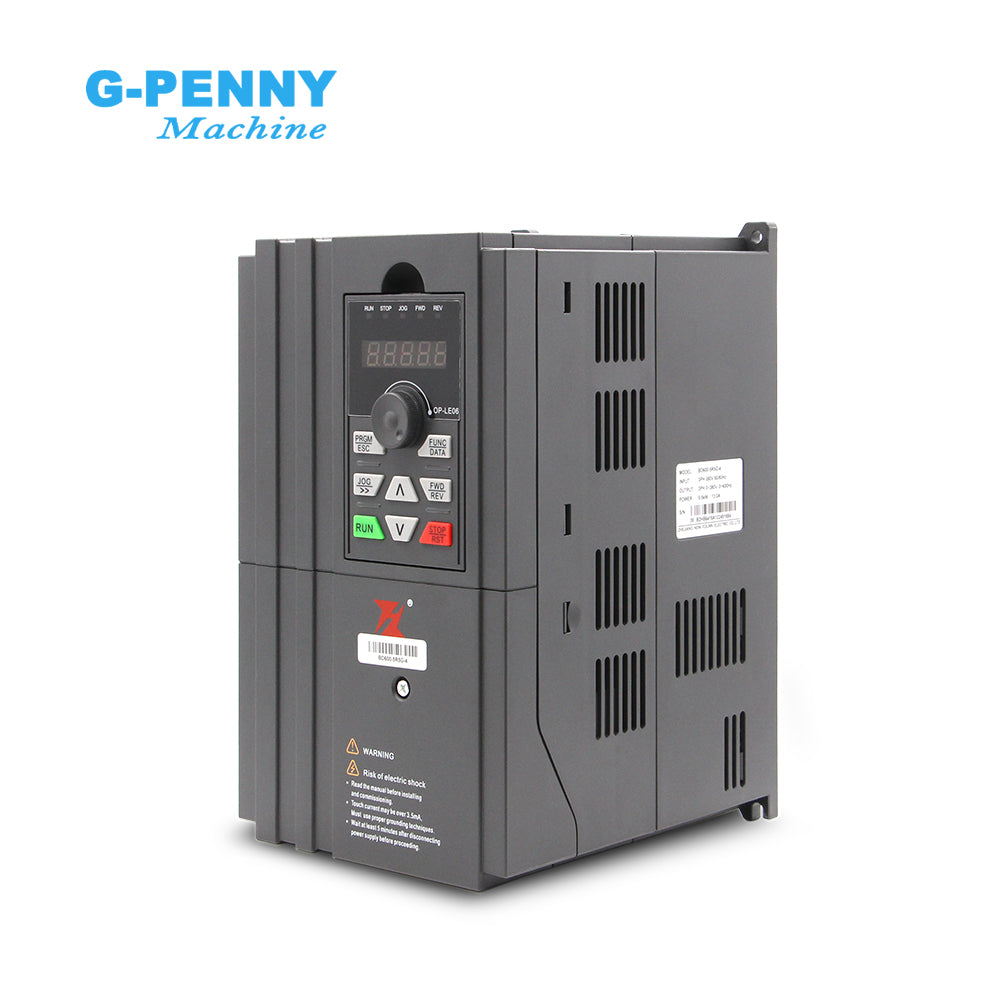

FuLing 5.5KW BD600 Inverter 220V/380V 0~1000Hz Frequency Driver for spindle motor speed control V/F Vector control

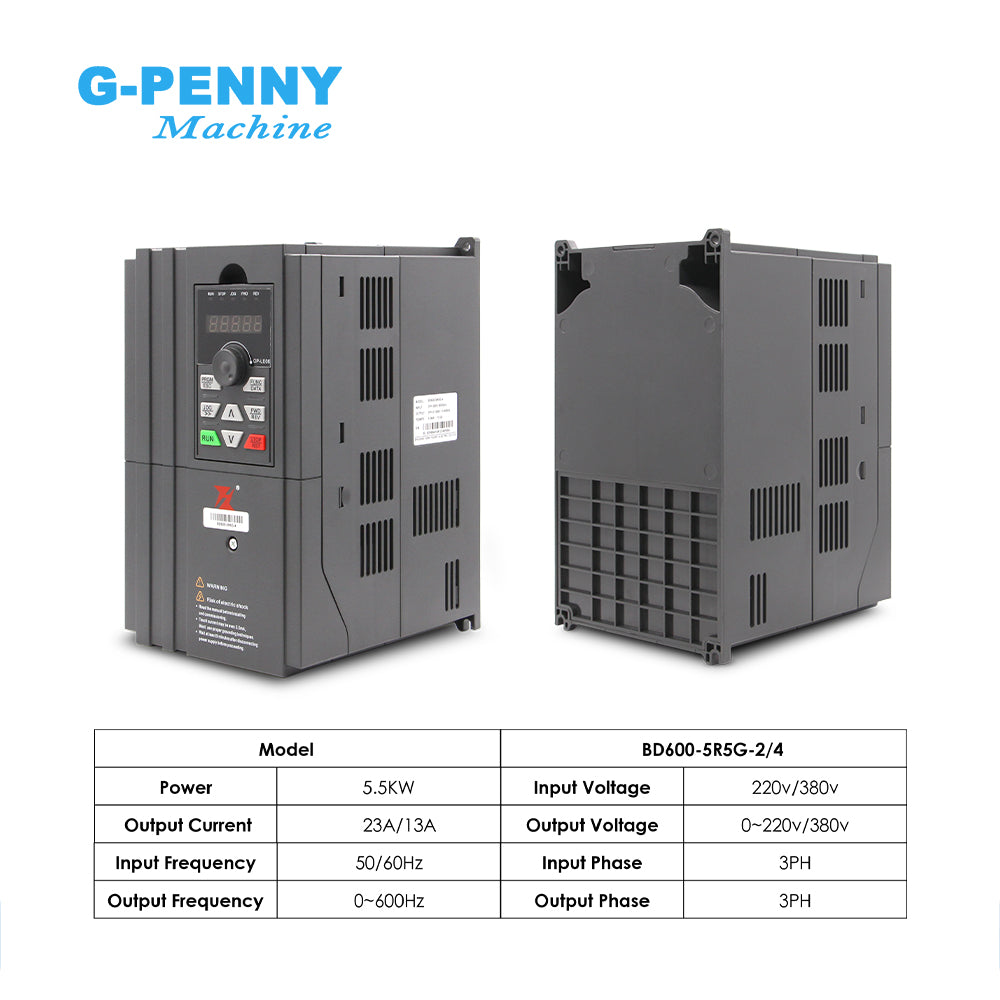

Basic parameter:

Power: 5.5kw

Input Voltage: 220v/380v (±20%)

Input Phase: 1 or 3 phase

Input Frequency: 50-60Hz (±5Hz)

Output Voltage: 220v/380v

Output Phase: 3 phase

Output Current: 23A/13A

Output Frequency: 0-1000Hz

Control Method: V/F control

Advantage:

◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation.
