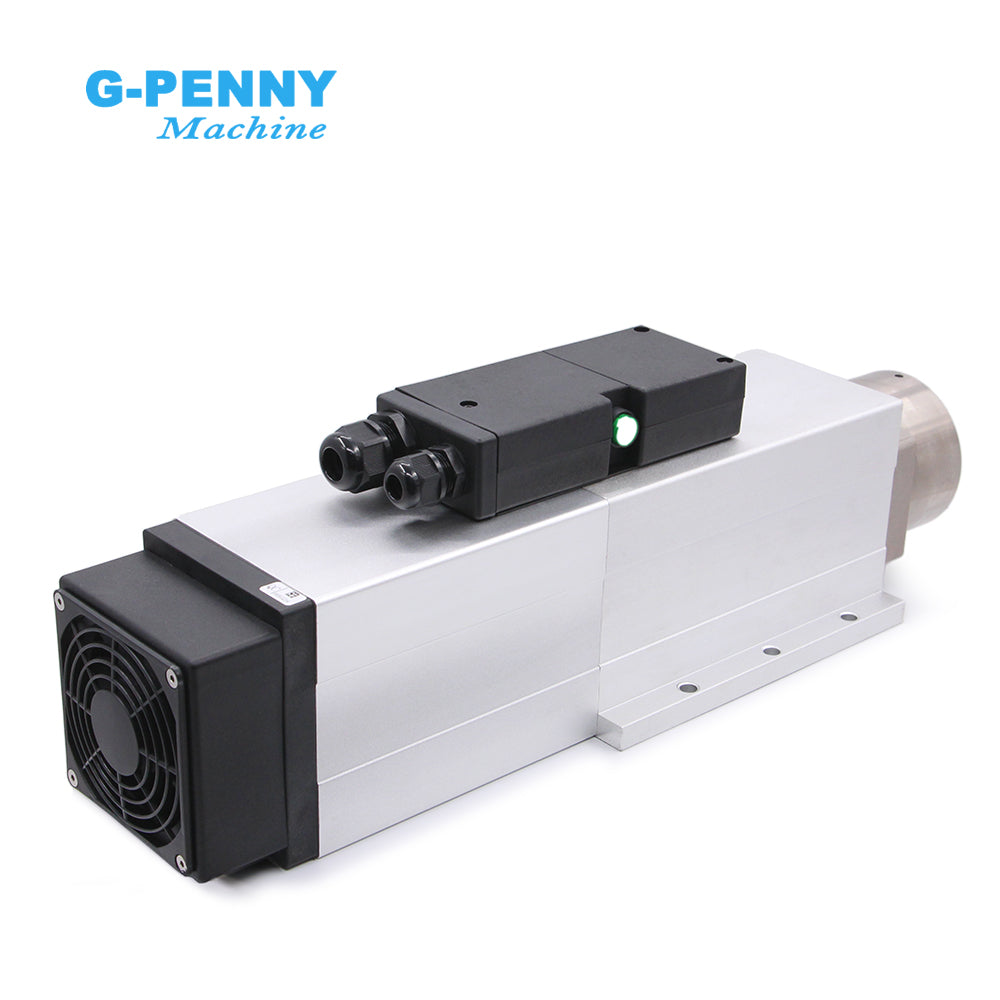

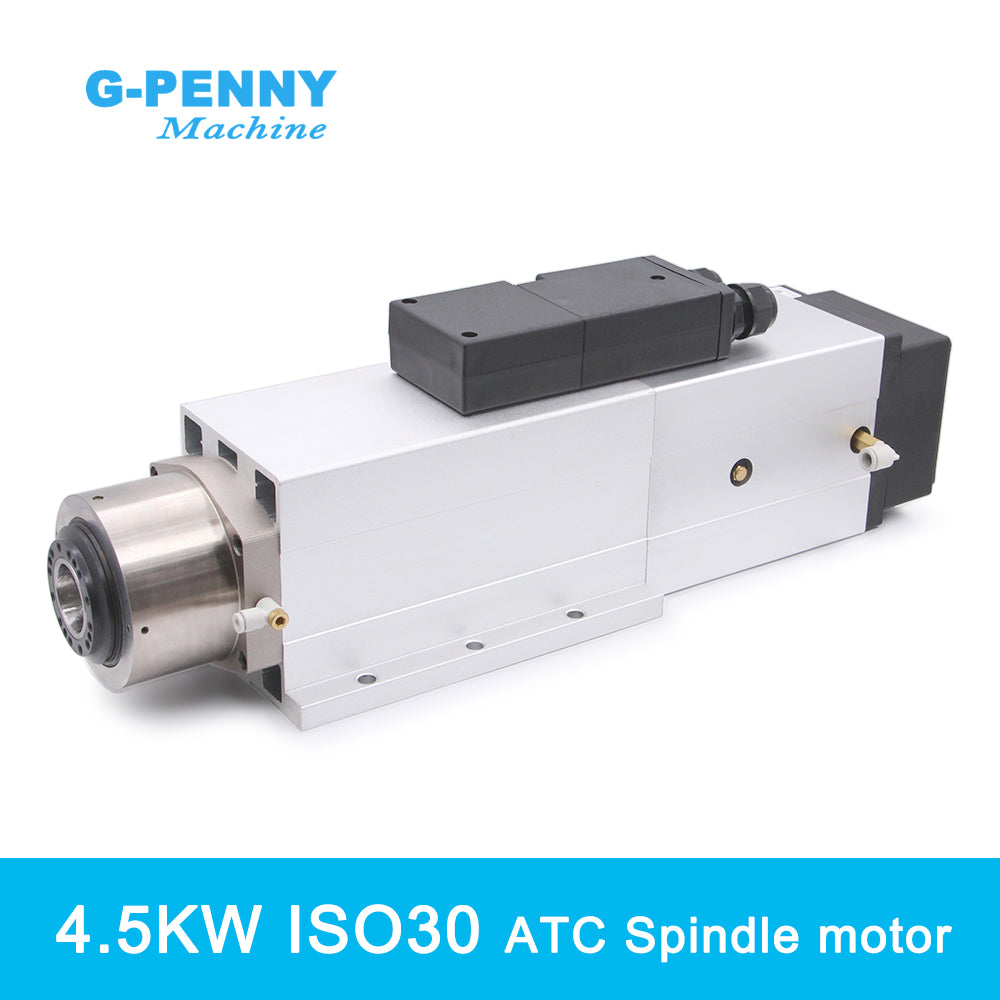

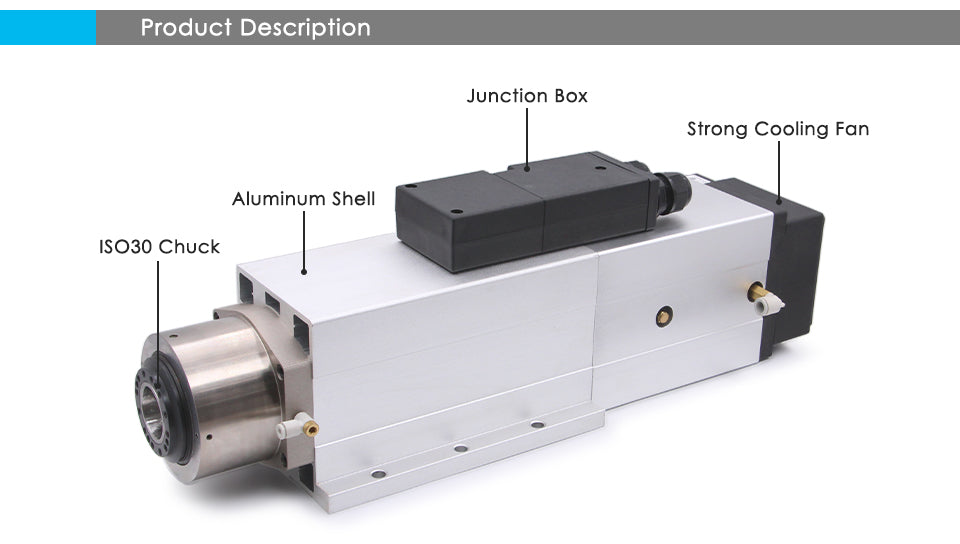

G-Penny 4.5kw ATC Spindle Automatic Tool Change Spindle 220v / 380v Air Cooled Instead Of 4.5kw ATC GDZ Woodworking
G-Penny 4.5kw ATC Spindle Automatic Tool Change Spindle 220v / 380v Air Cooled Instead Of 4.5kw ATC GDZ Woodworking
Couldn't load pickup availability

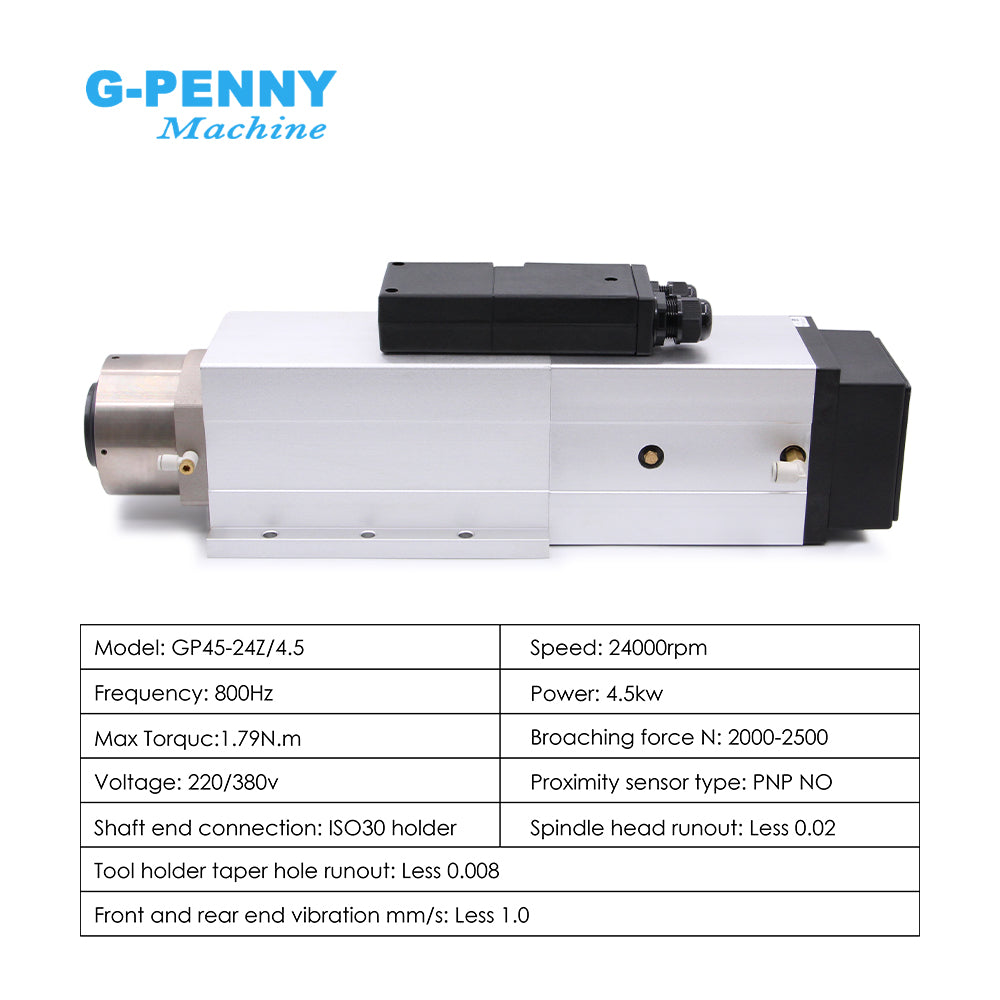

Basic parameter:
Power: 4.5KW
Voltage: 220v/380v
Pole: 4
Frequency: 800Hz
Speed: 24000rpm
Chuck: ISO30

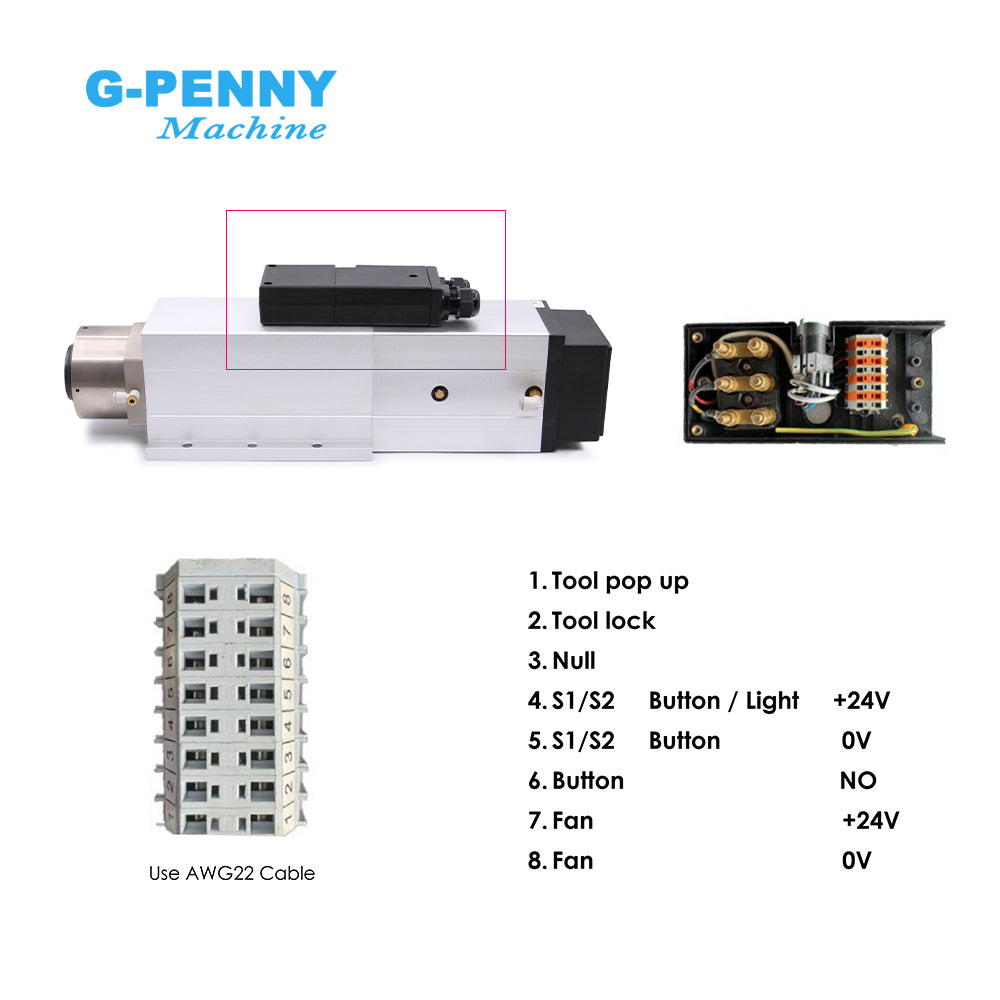

Proximity sensor type: PNP NO
Broaching force (N): 2000~2500
Bearings Type: 2x7008C DB & 2x7006C DB (4pcs Ceramic ball bearings)
Front and rear end vibration (mm/s): Less 1.0
Tool holder taper hole runout: Less 0.008
Spindle head runout: Less 0.02
