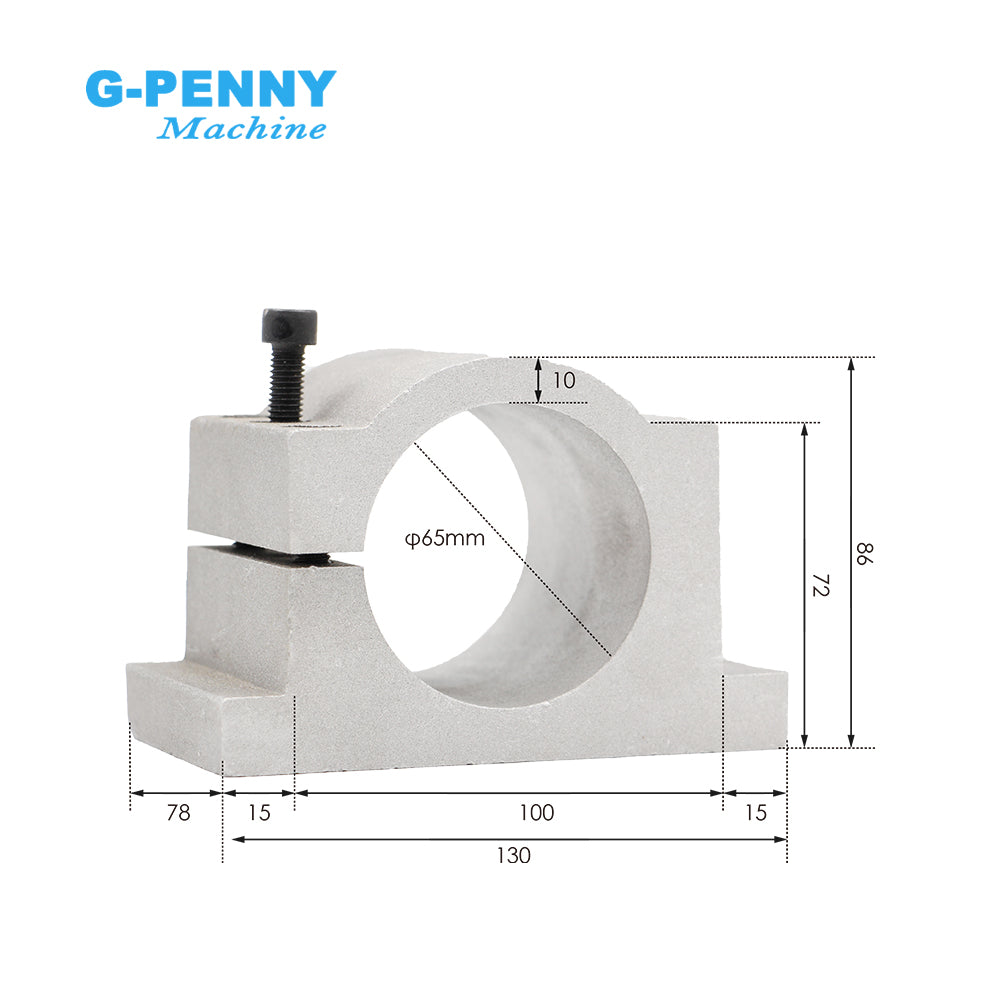

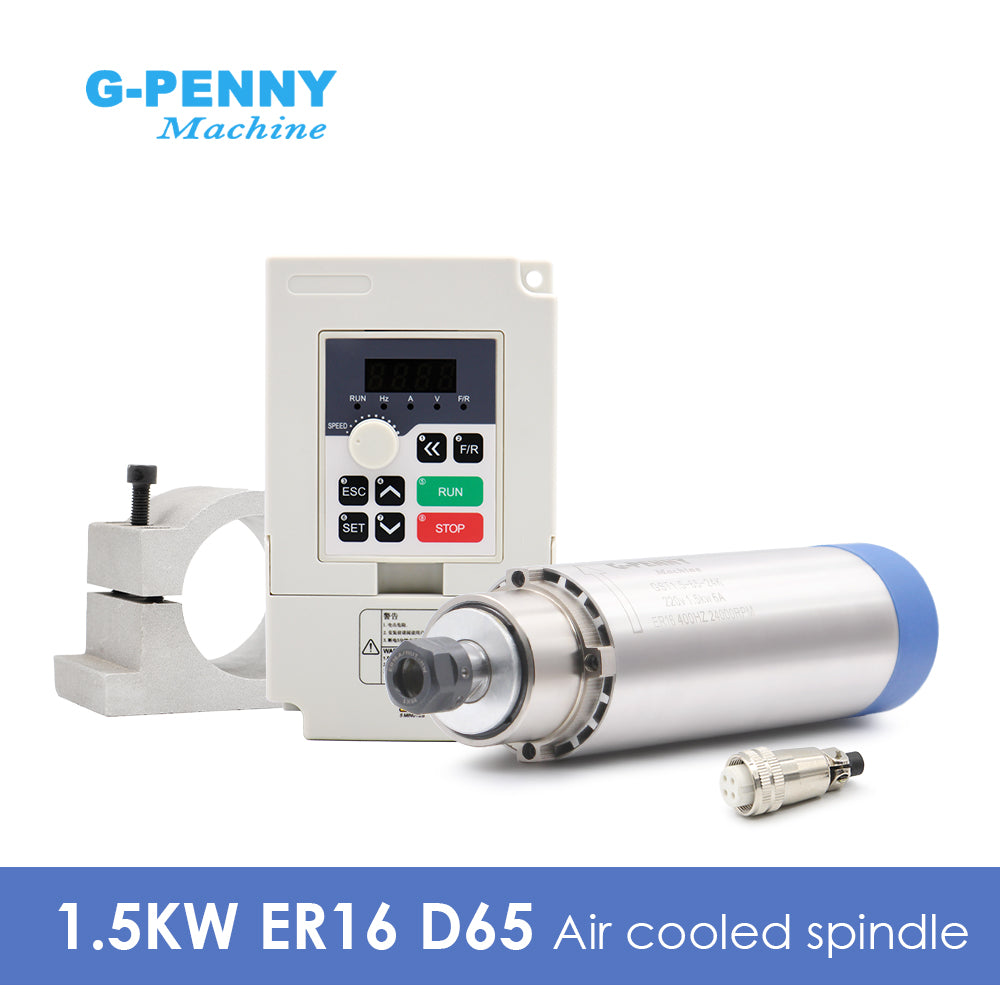

G-PENNY 1.5kw ER16 D65mm 400Hz Air Cooled Spindle 4pcs Bearings 24000rpm with QL 1.5KW Inverter, 65mm Bracket Spindle Motor Kit

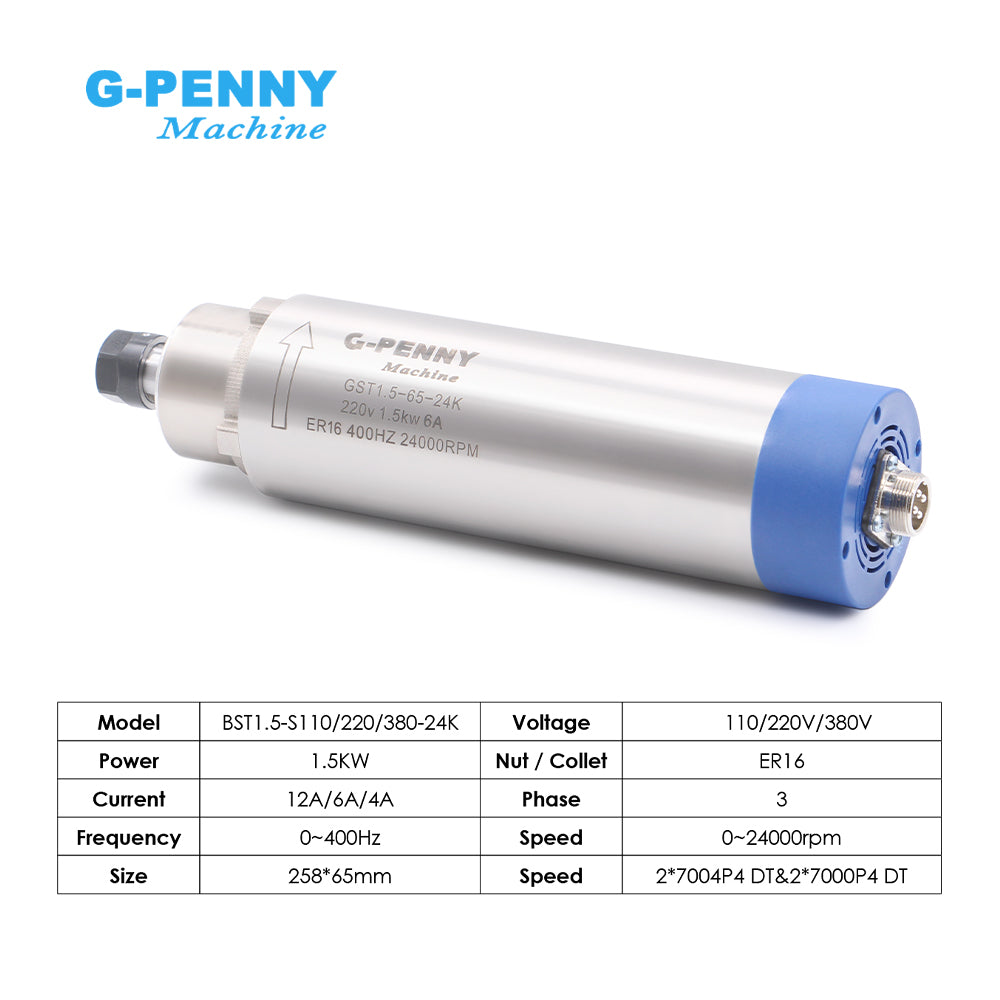

Spindle Basic Parameter:

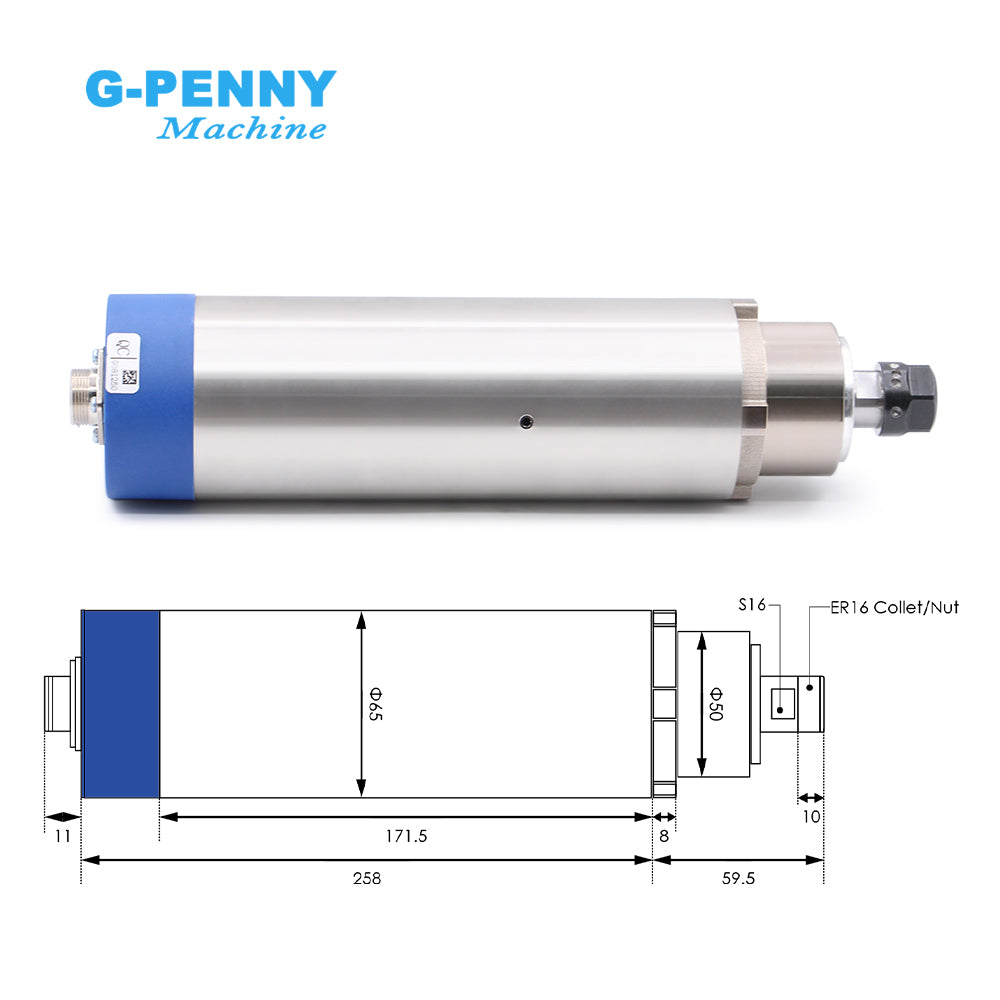

Size: 65 x 258mm ( Body diameter:65mm; Length:258mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Air cooling
Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
Power: 1.5kw (1HP=0.735kw)
Voltage: 220v/ 380v (If you need 110v pindle ,please leave message to us,thank you)
Current: 6A/4A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
Bearing Type: 2X7004 P4 DT and 2X7000 P4 DT
Full sealed angular contact bearings
Collet: ER16
Clip Knifediameter: 10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
Air Cooling ER16 collet chunk
Grease Lubrication
Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.

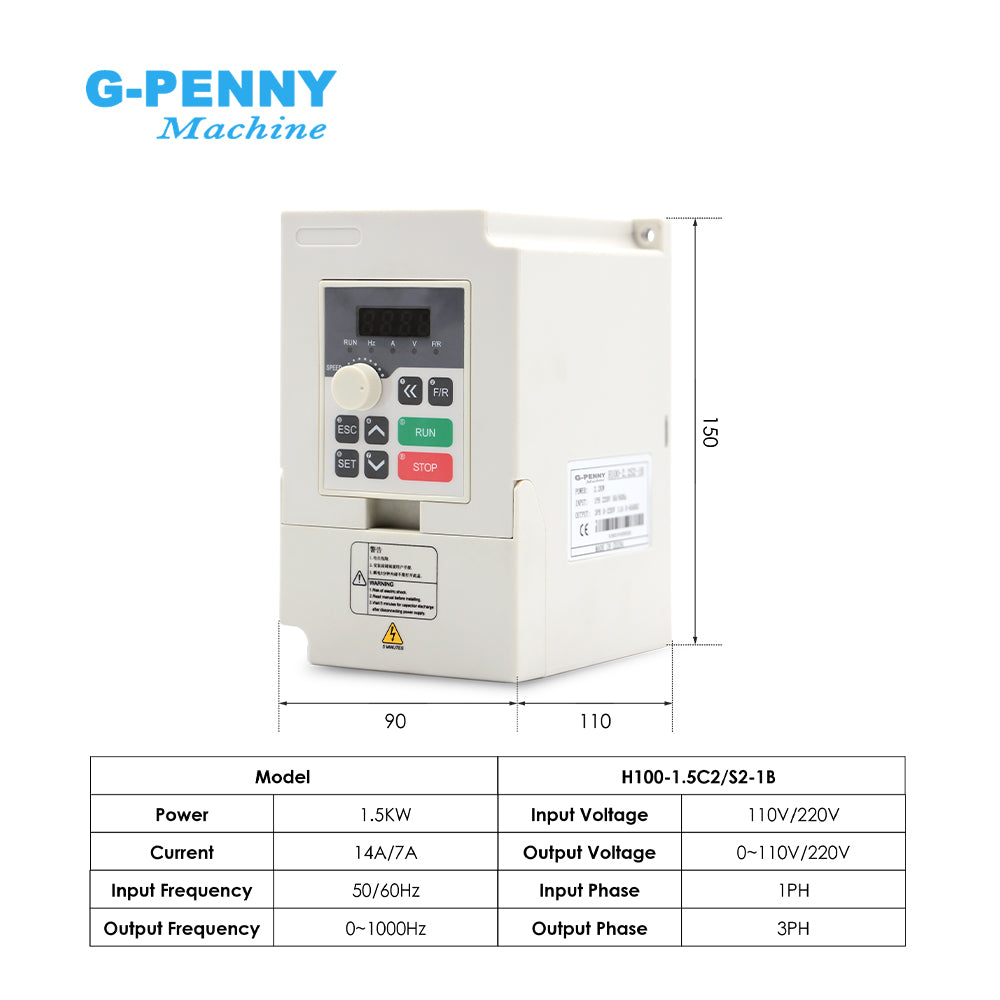

Inverter Basic Parameter:
Power: 1.5KW
Input Voltage: 110v/220v
Curent: 14A(110V) / 7A(220V)
Output Voltage: 0~110v/220v
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Input Phase: 1 phase
Output Phase: 3 phase
Warranty: 1 year from the date you purchased
