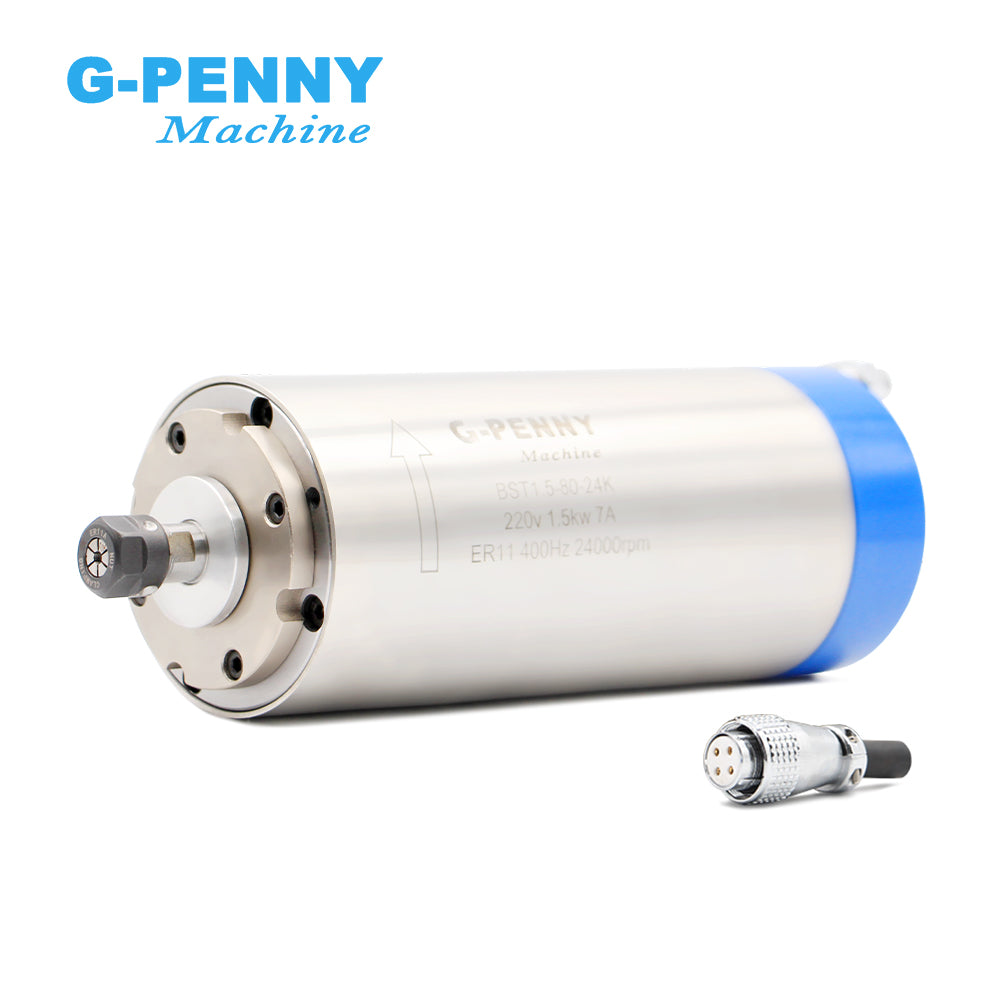

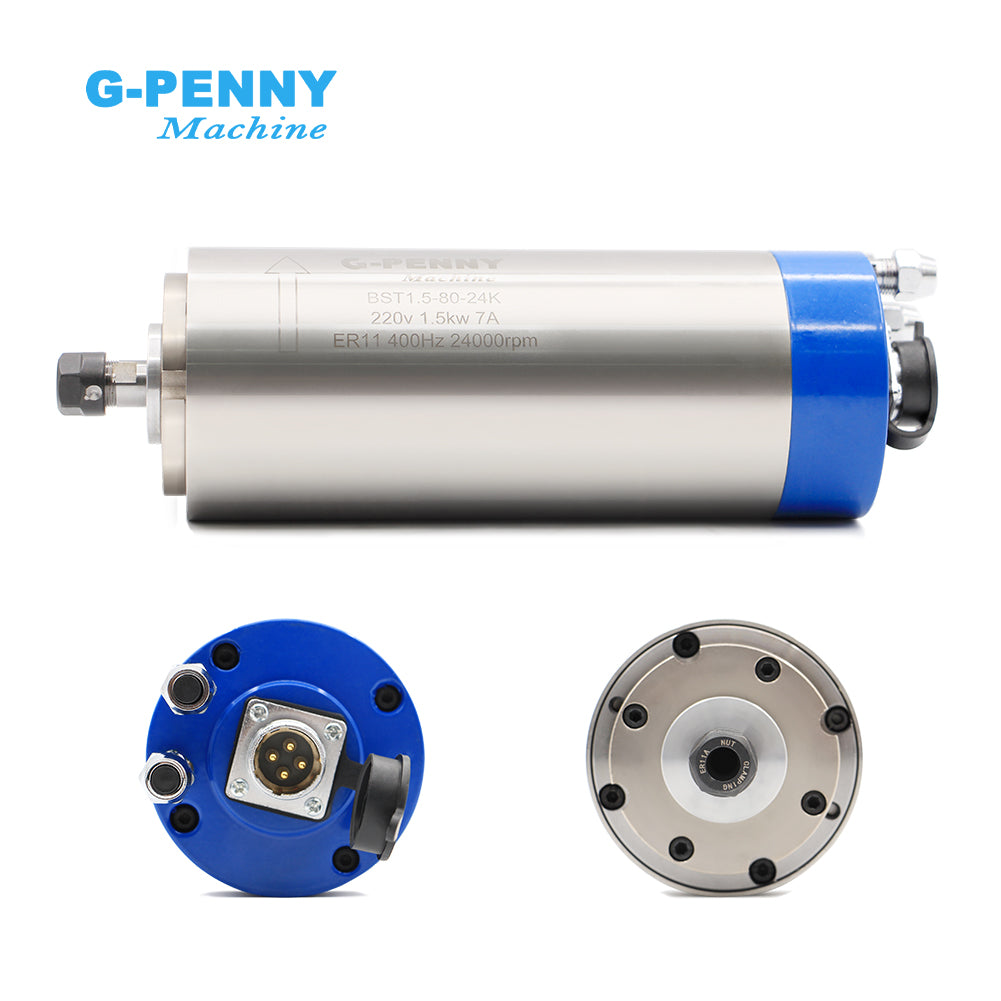

G-Penny 1.5KW ER11 D80 Water cooled spindle motor 110v/220v/380v 4pcs bearings used for cnc milling machine

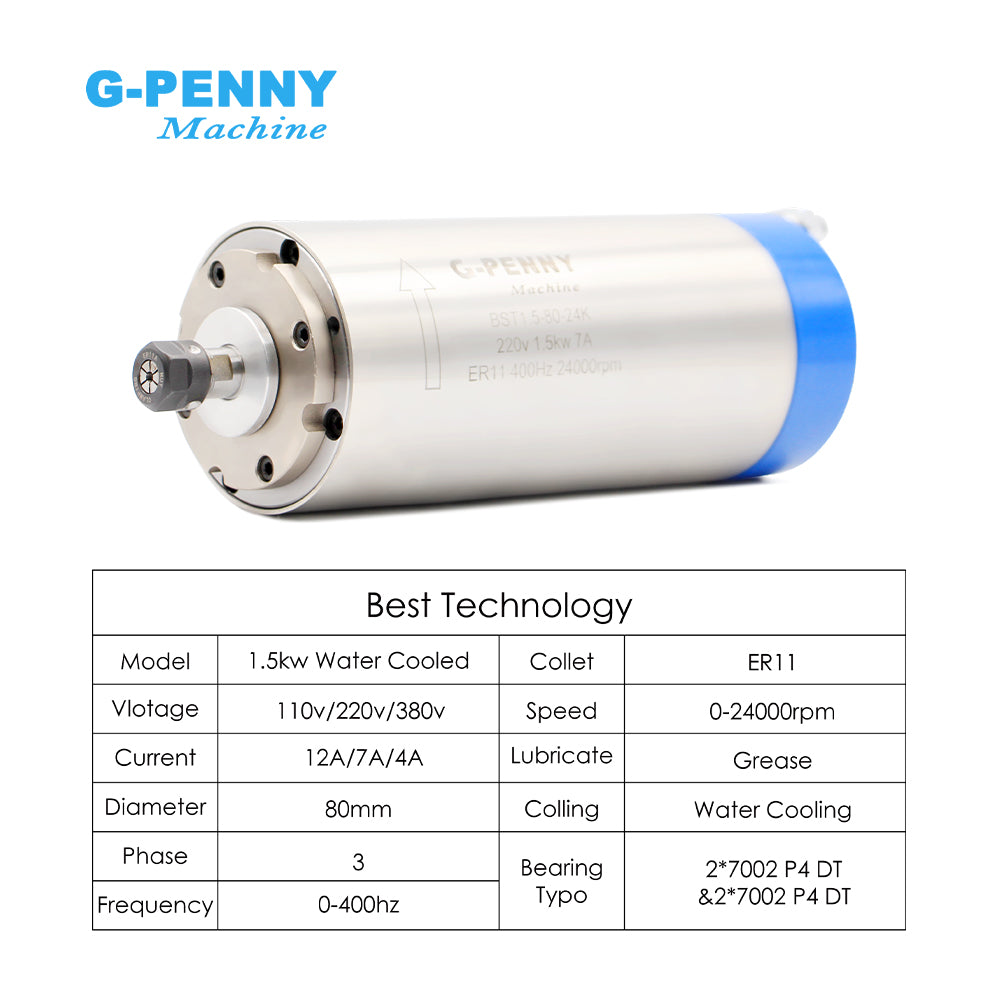

Basic parameter

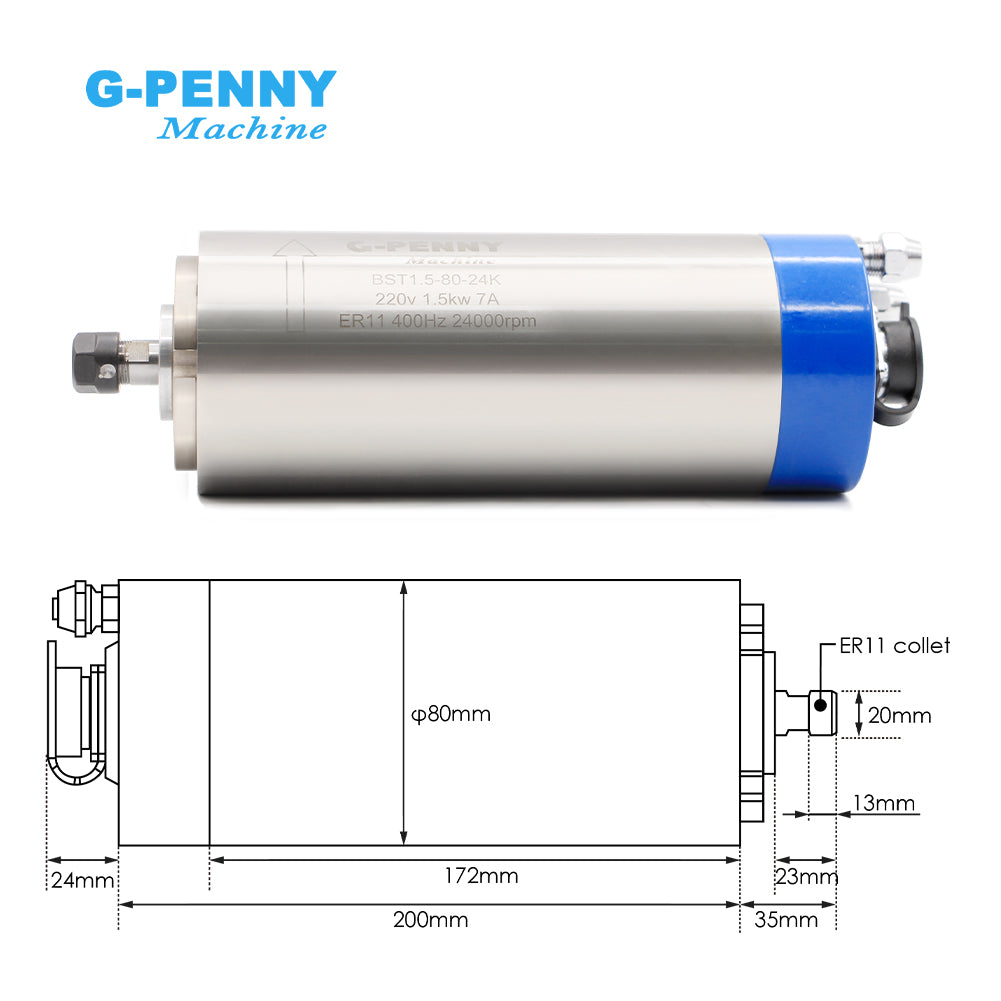

• Size:80 x 200mm (Middle body diameter:80mm;Length:200mm)

• Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

• Cooling:Water cooling

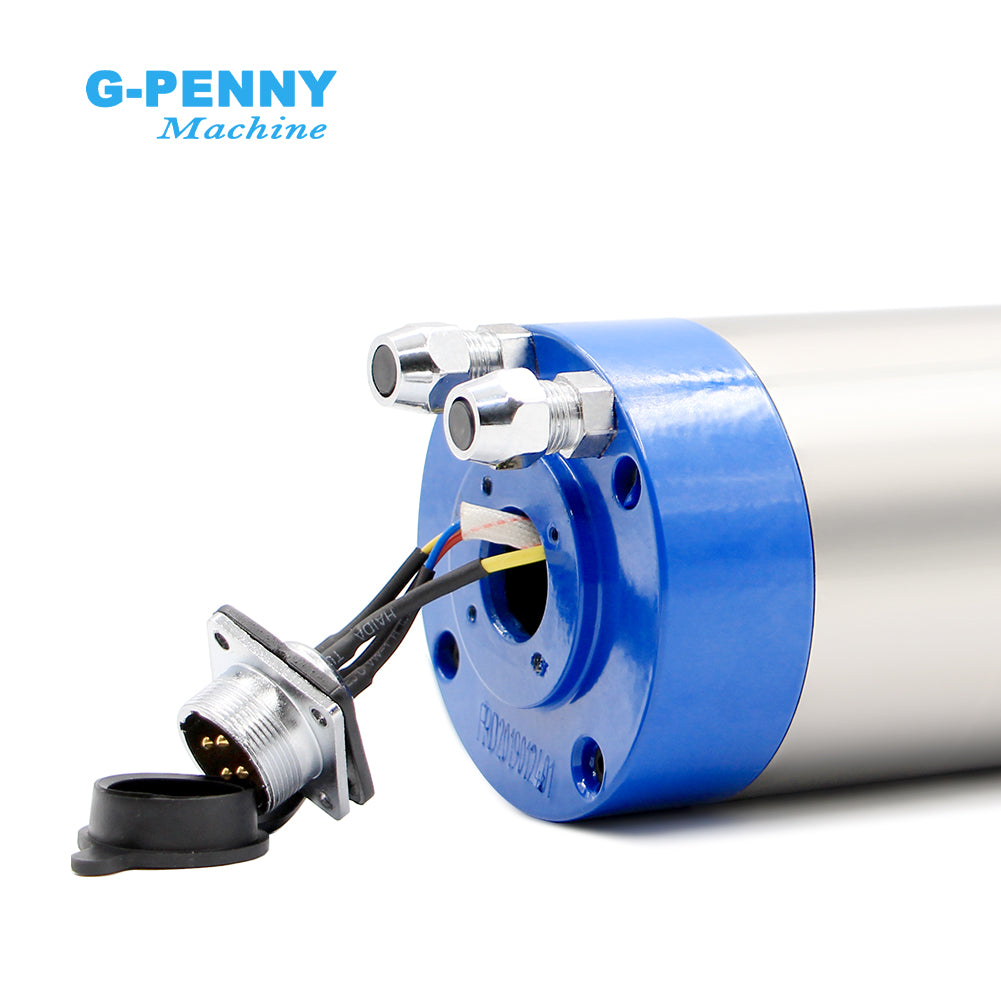

• Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)

• Power:1.5kw(1HP=0.735kw)

• Voltage:220vAC(If you need 110v/380v spindle ,please leave message to us,thank you)

• Frequency:0-400Hz

• Speed: 0-24000rpm

• Runout Off: 0.01mm

• Fully sealed P4 angular contact bearings

• Bearing Type: 2×7002C P4 DT & 2 ×7002C P4 DT

• 4 pcs angular contact bearings

• Water Cooling ER11 collet chunk
