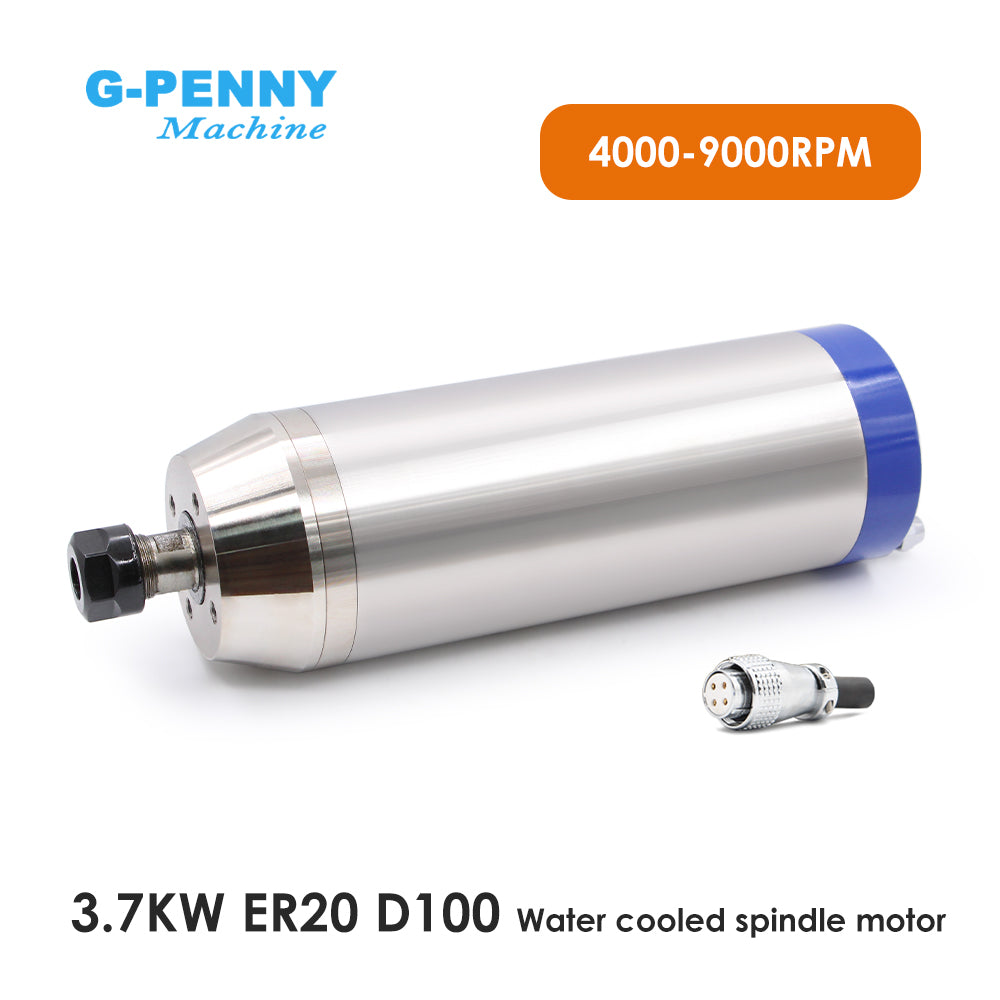

G-Penny 3.7KW ER20 D100 copper rotor 220V/380V 300Hz 4000-9000RPM Metal Working Water Cooled Spindle CNC Milling Machine

G-Penny 3.7KW ER20 D100 copper rotor 220V/380V 300Hz 4000-9000RPM Metal Working Water Cooled Spindle CNC Milling Machine

$507.00 USD
$507.00 USD
Sale Sold out
Voltage

Basic parameter:

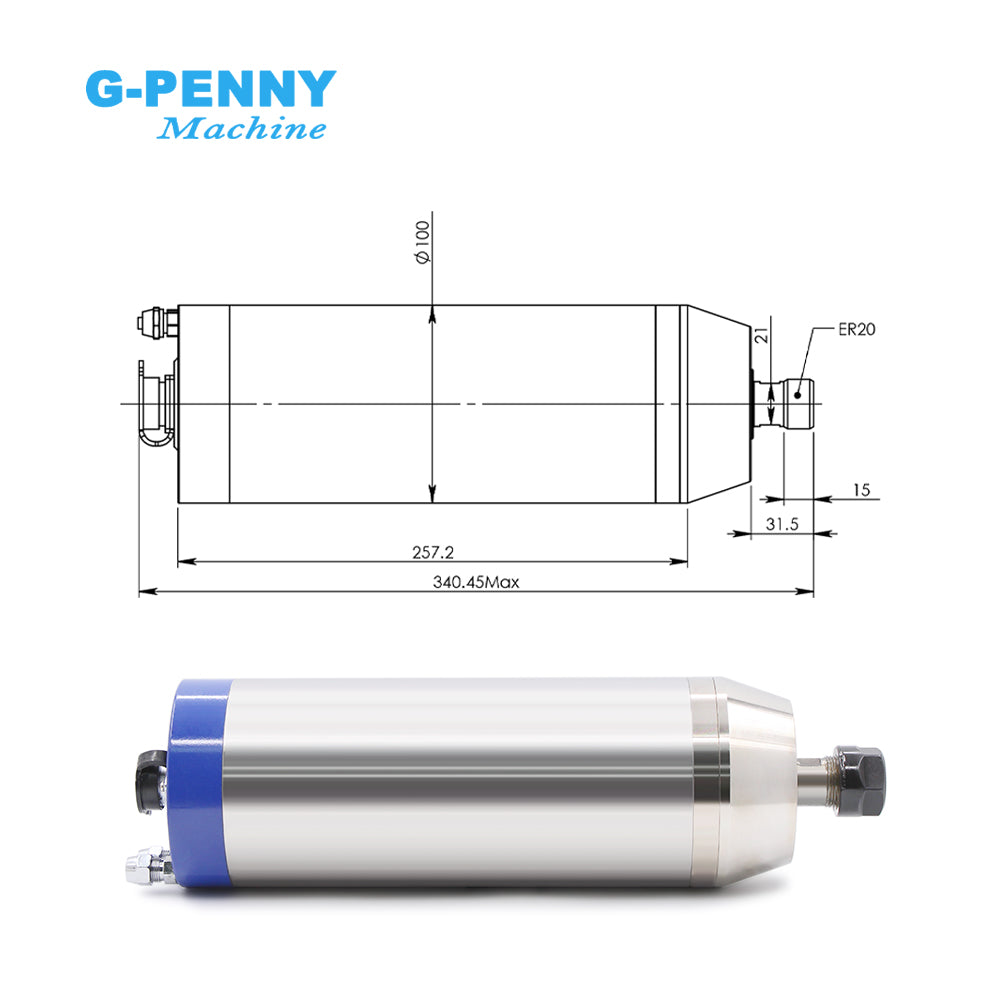

Size: 100x257.2mm (Middle body diameter:100mmxLength:257.2mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling
Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.

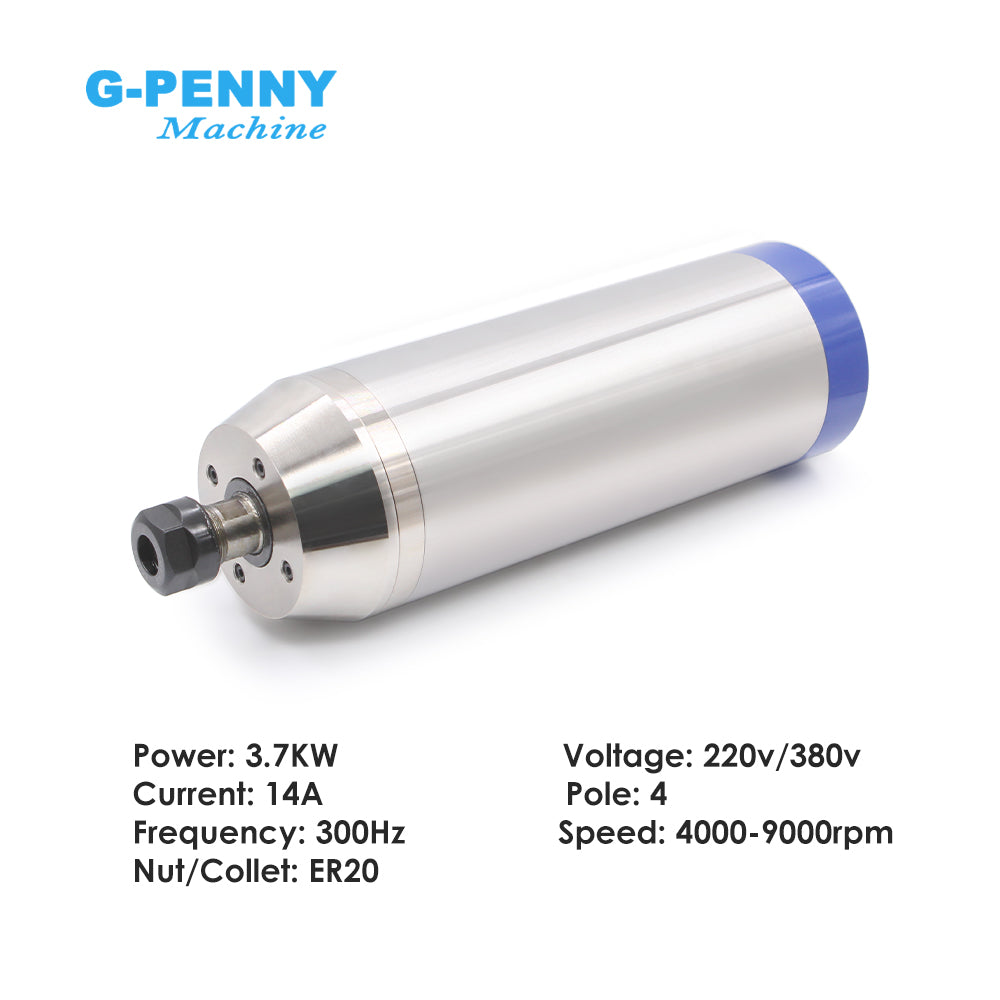

Power: 3.7kw
Voltage: 220v/380v
Current: 17A/8A
Frequency: 300Hz
Speed: 4000-9000rpm
Pole:4
Runout Off:Less than 0.01mm
Diameter(mm): 100
4pcs Ceramic Ball Bearings (fully sealed angular contact bearings)
Collet: ER20
Clip Knife diameter: 13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
