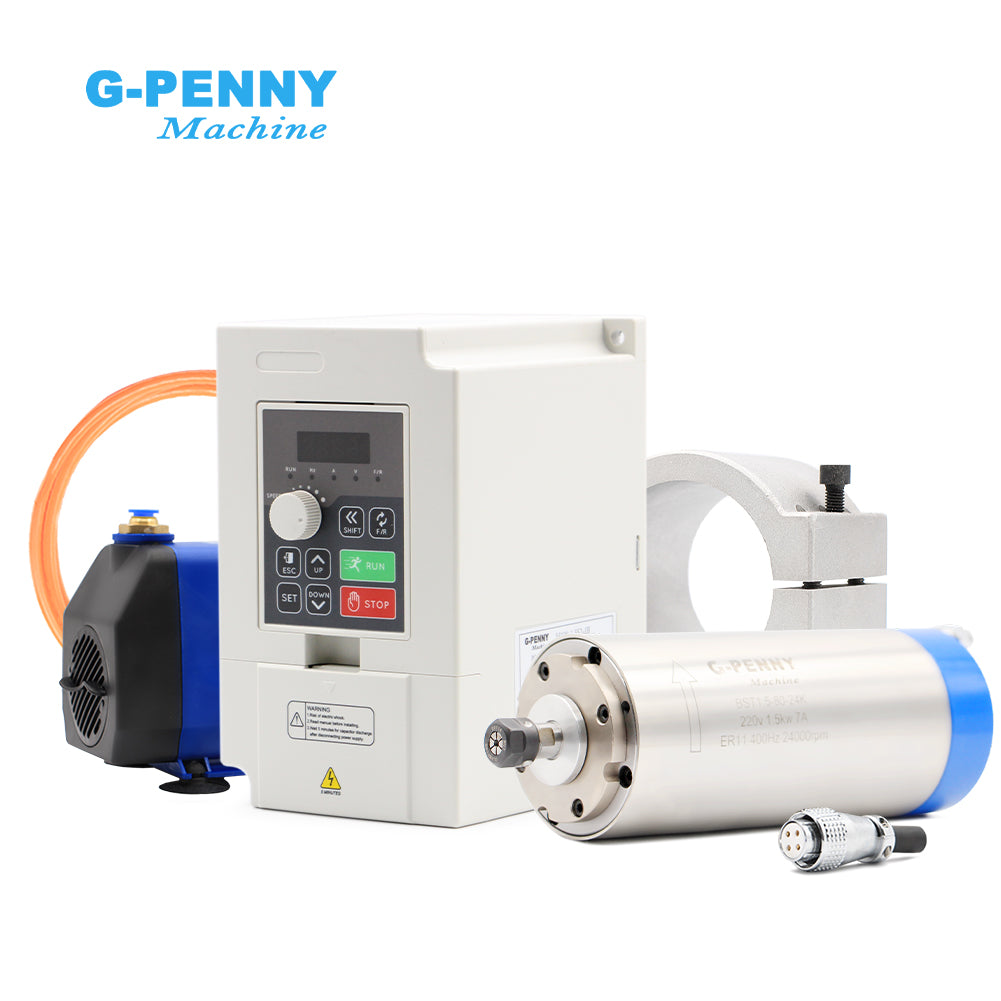

G-Penny 1.5KW ER11 110v/220V/380V Water Cooled Spindle QL Inverter 80mm Bracket 75W Water Pump Bearing & Motor Milling
G-Penny 1.5KW ER11 110v/220V/380V Water Cooled Spindle QL Inverter 80mm Bracket 75W Water Pump Bearing & Motor Milling
Couldn't load pickup availability

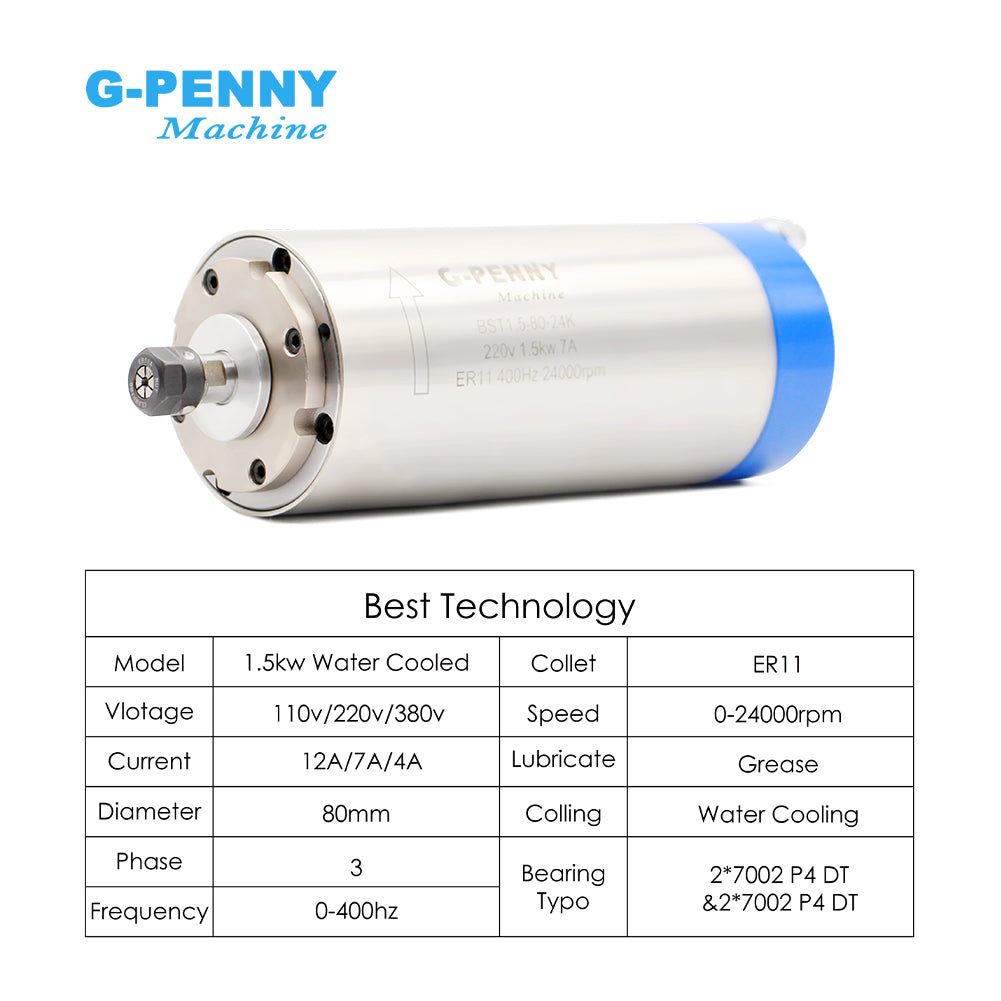

Basic parameter:

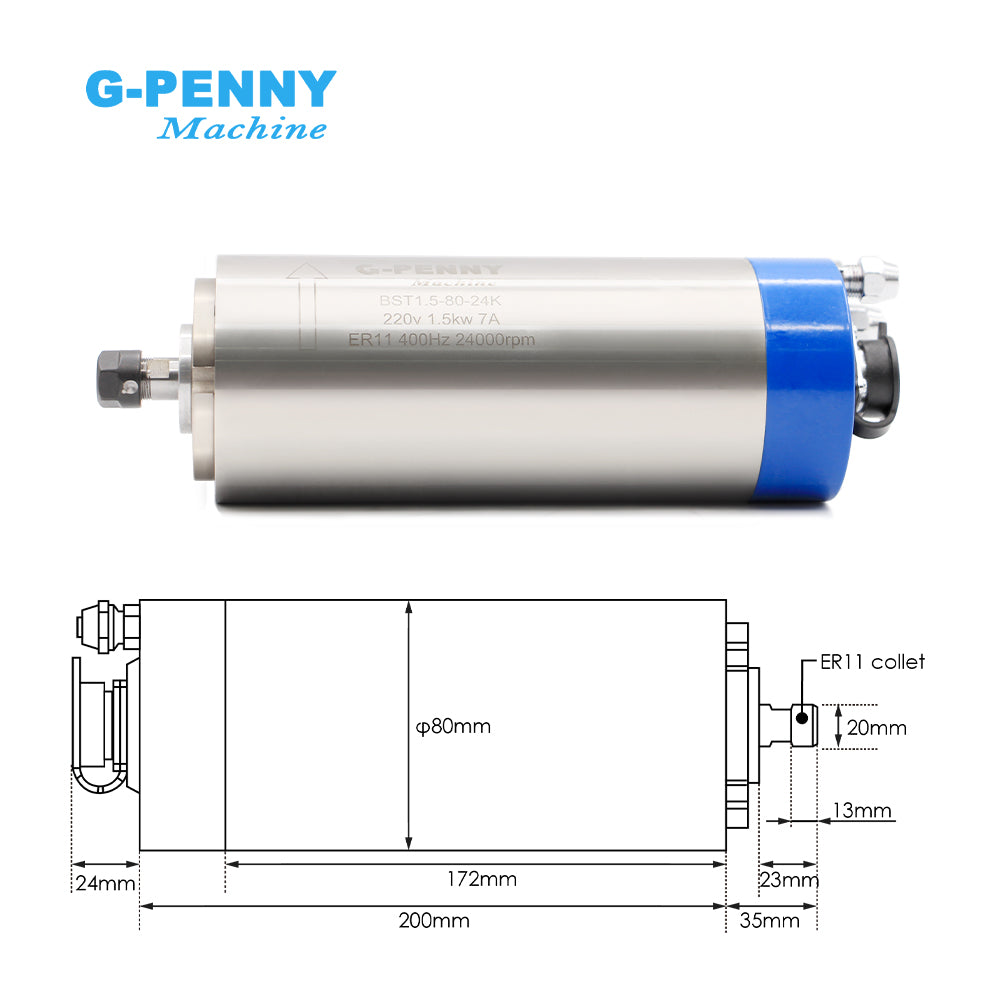

Size: 80x200mm (Middle body diameter:80mmxLength:200mm)

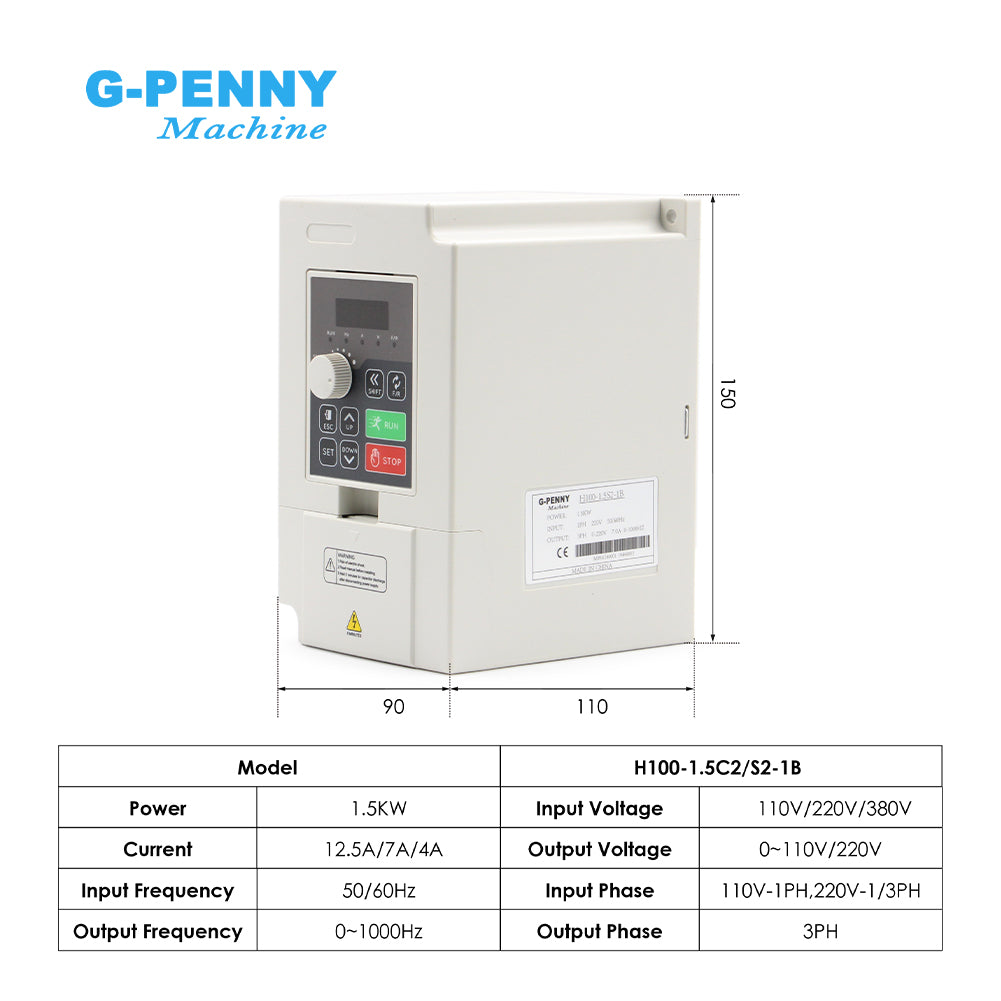

Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

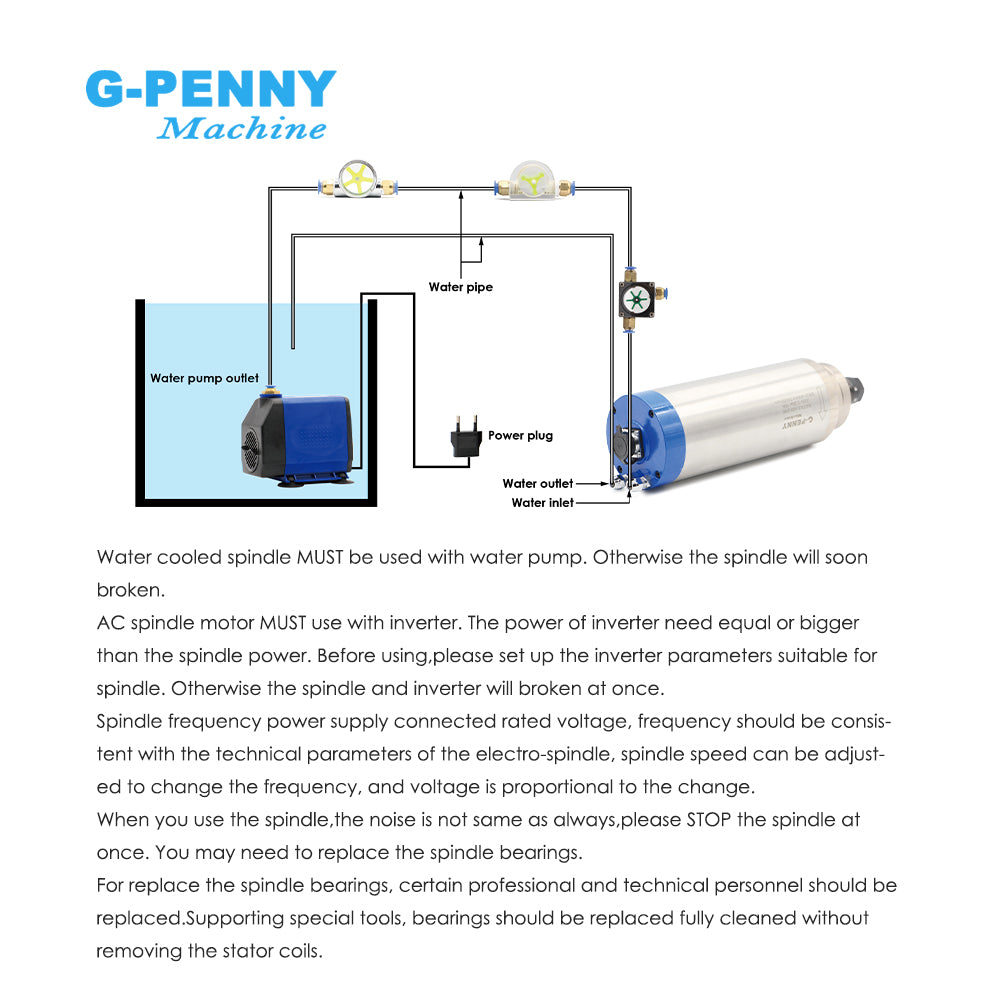

Cooling: Water cooling
Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
Frequency: 400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
4pcs fully sealed angular contact bearings
Bearing Type: 2×7002C P4 DT & 2×7002C P4 DT
Collet: ER11
Grease Lubrication
