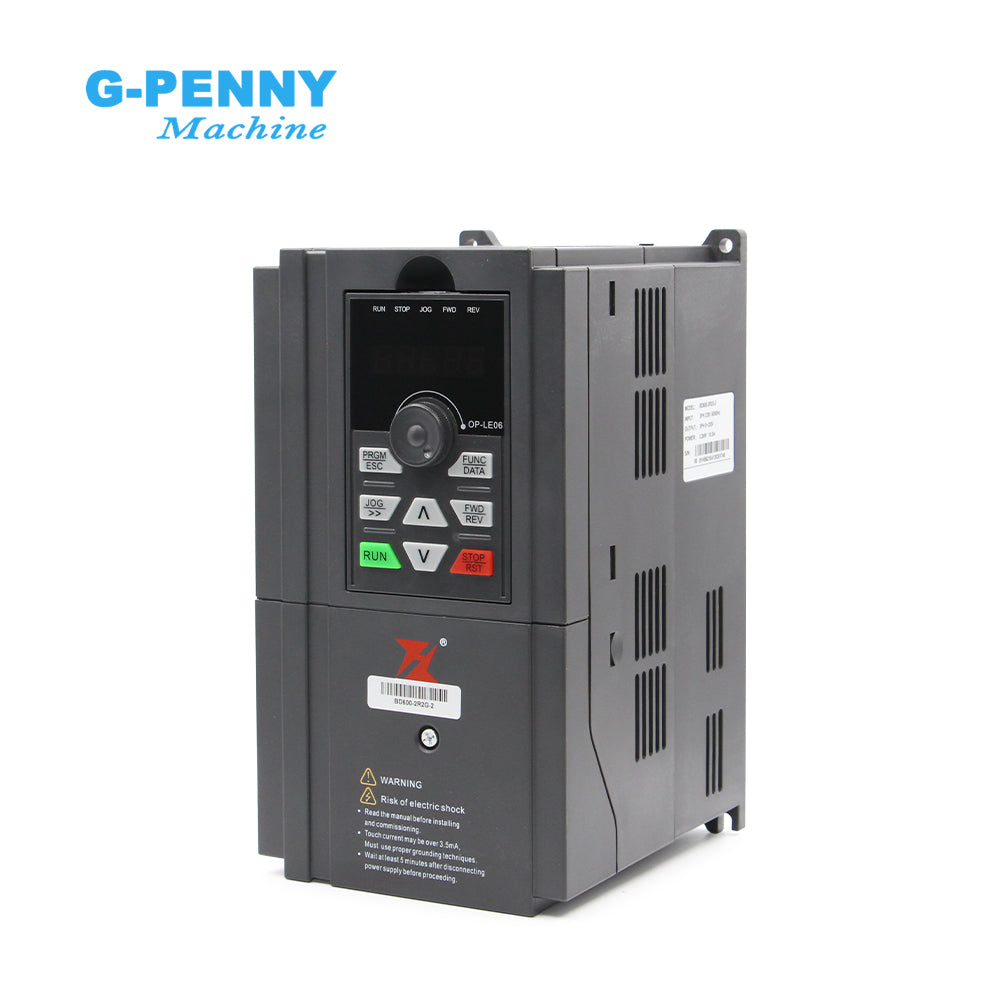

FuLing 2.2KW BD600 Inverter 220V/380V 0~1000Hz Frequency Driver for spindle motor speed control V/F Vector control

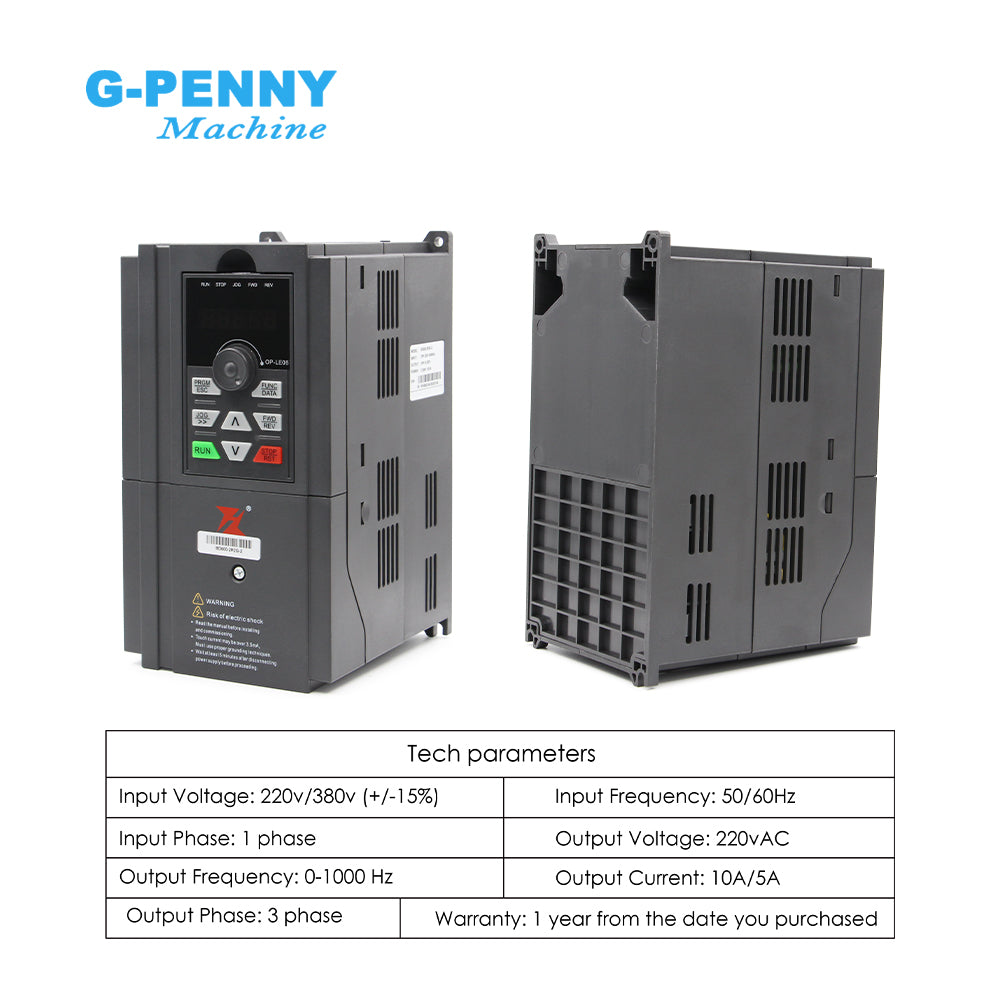

Basic parameter:

Type:BD600-2R2G-2 2.2 KW

Input Voltage: 220V/380V (+/-15%)

Input Frequency: 50/60Hz

Input Phase: 3 phase

Output Voltage: 220V/380V AC

Output Frequency: 0-1000Hz

Output Current: 10A/5A

Output Phase: 3 phase

Advantage:

◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation.
