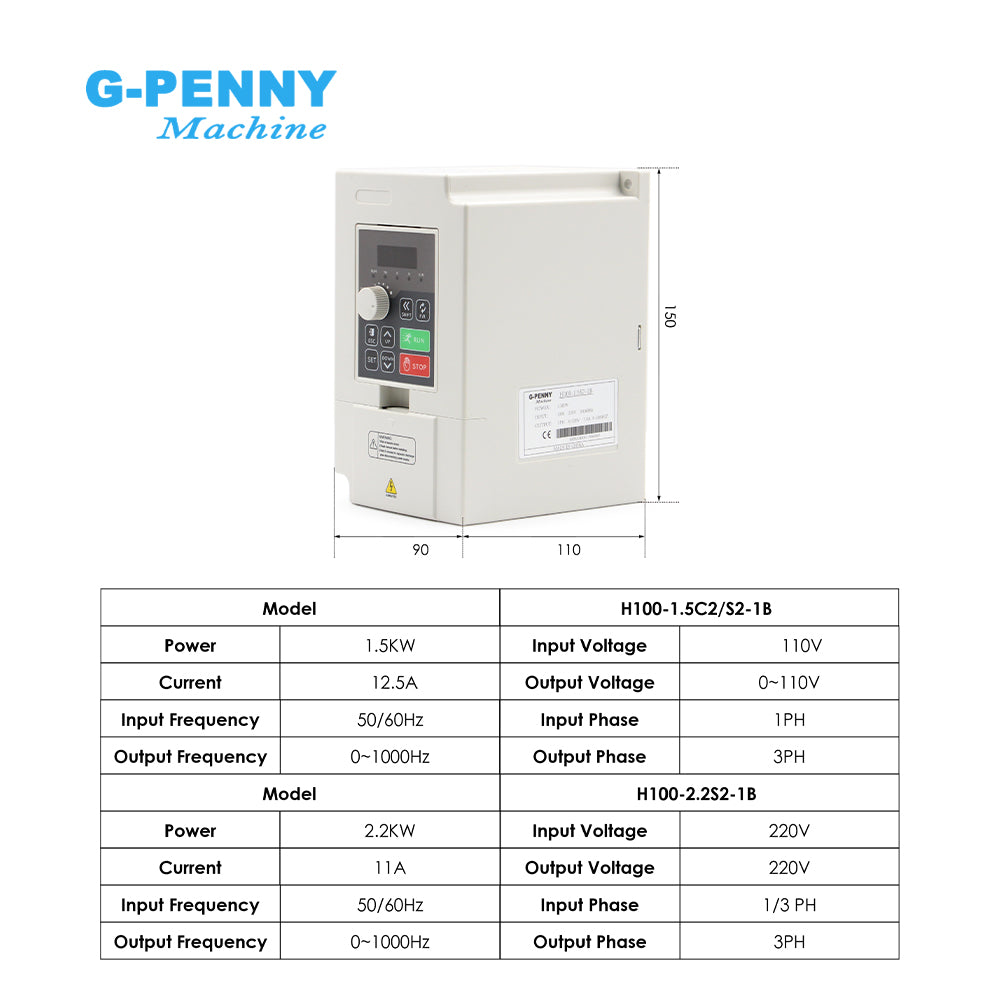

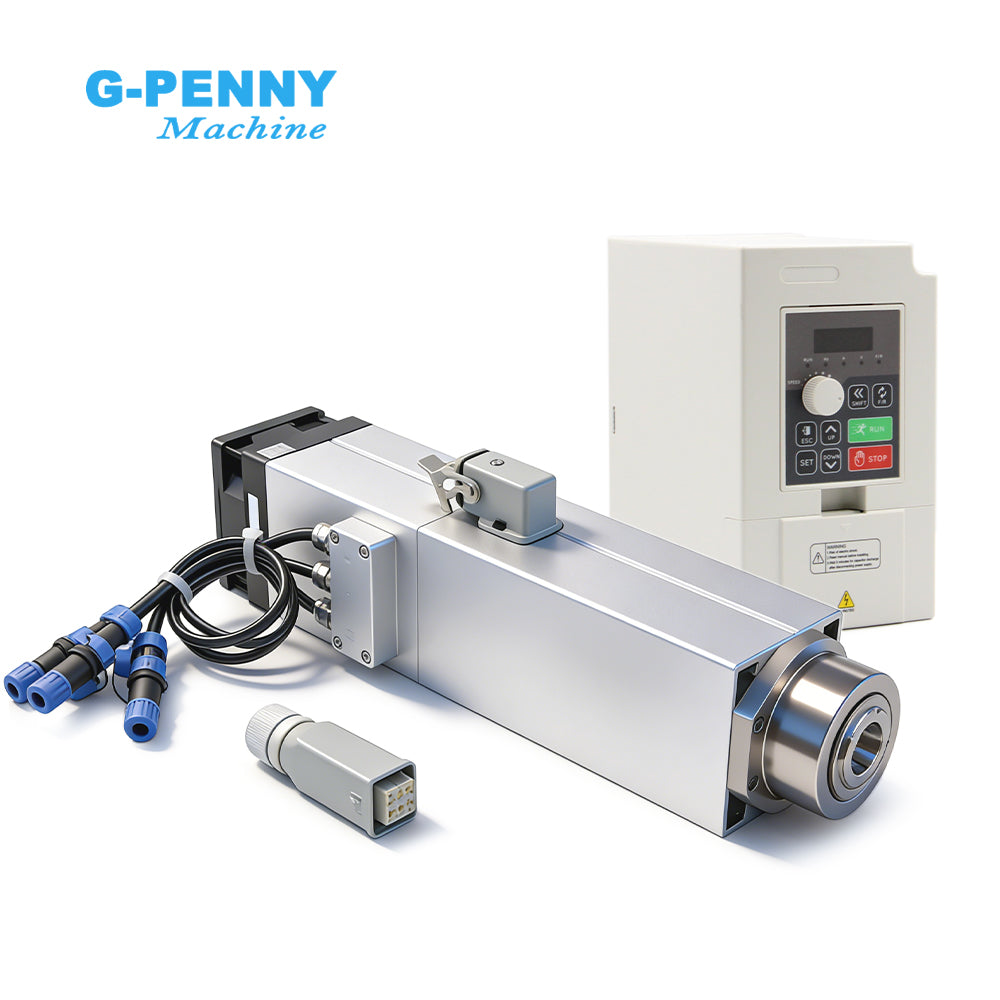

G-Penny 110V/220V 1.5KW/2.2KW ISO20 Air cooled ATC spindle motor 600hz 18000rpm with H100 Inverter kit for cnc milling machine

Basic parameter:

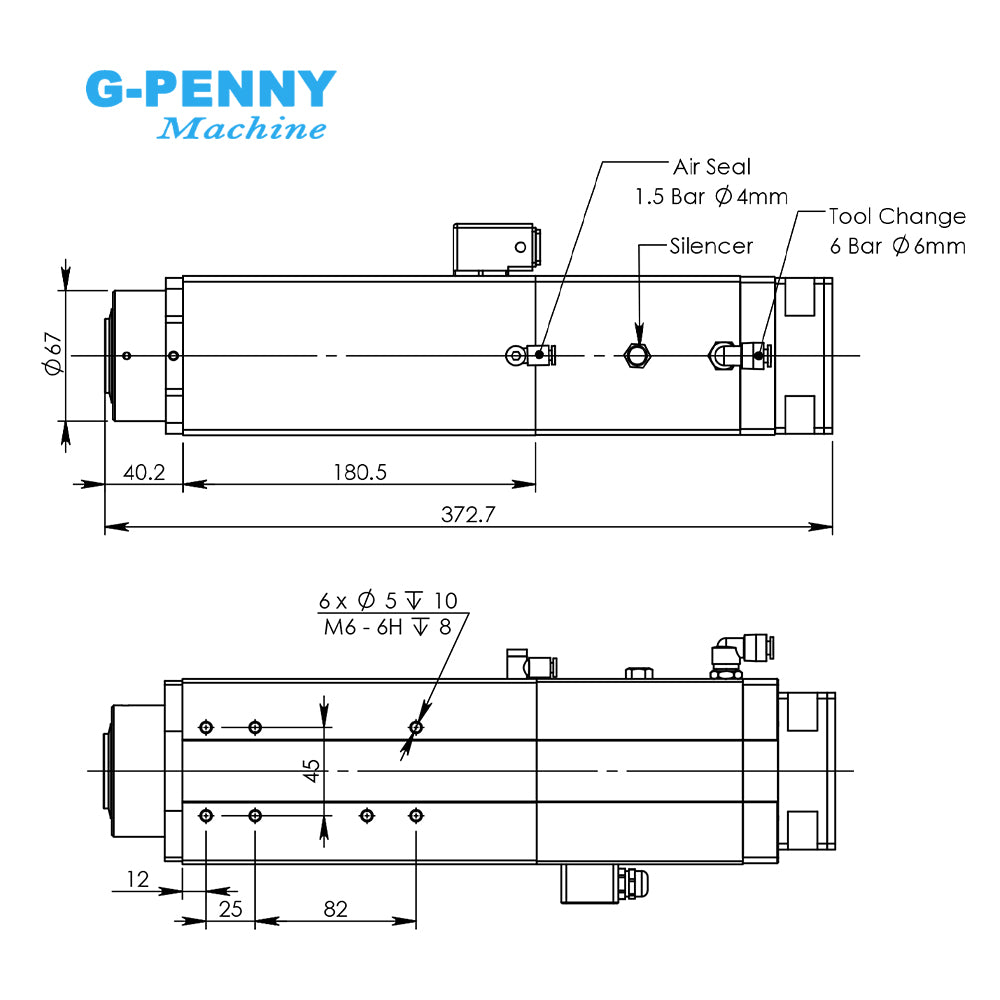

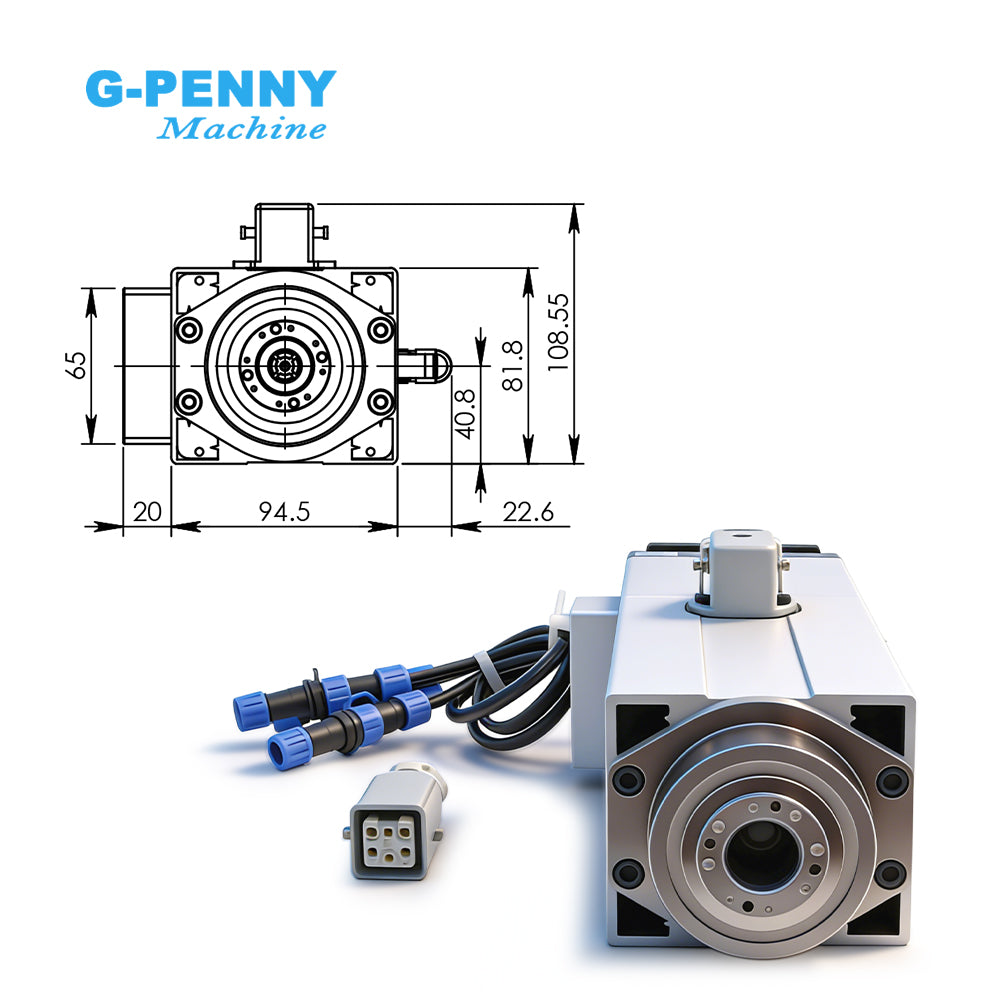

Size: 372.7*94.5*81.8mm

Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

Cooling: Air cooling

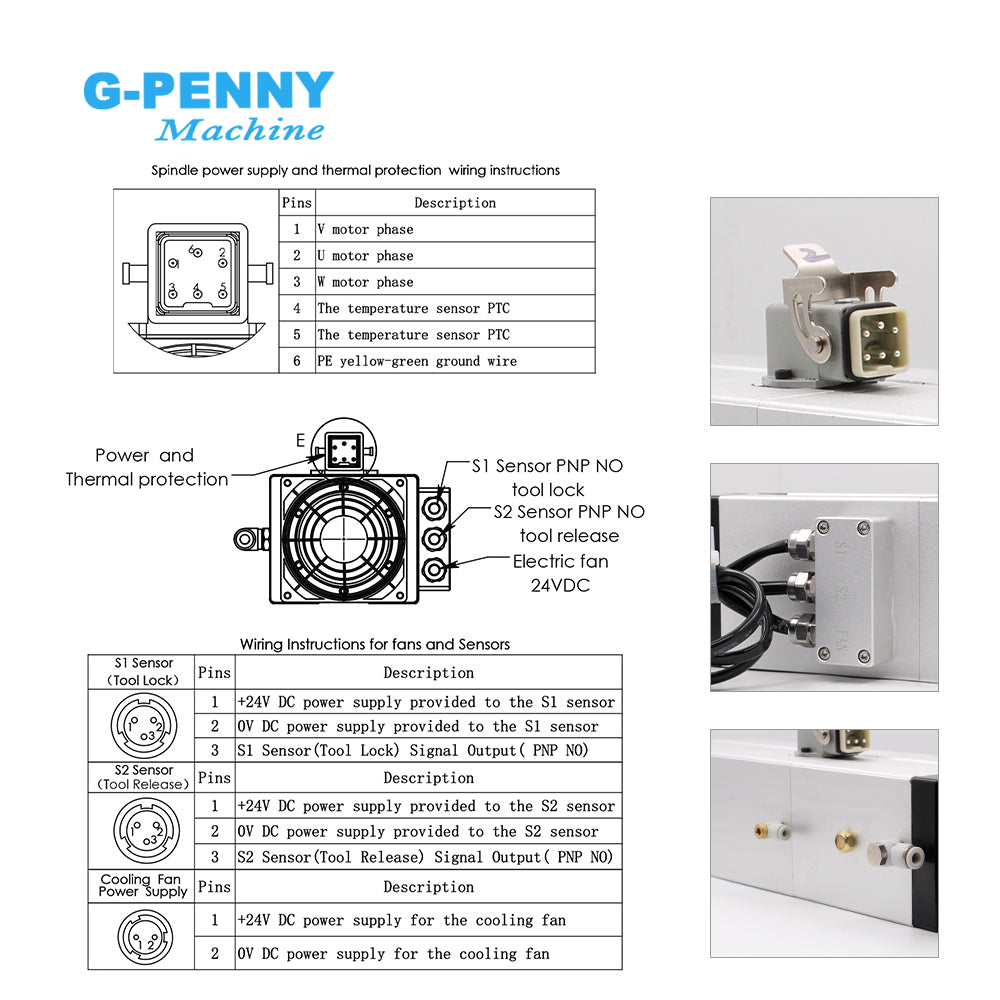

Power Interface: Optional 5 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4" "5" "GND". "1 ","2 ","3" were connected to inverter (U, V, W), "GND" connected inverter ground.
(Pay attention! our spindle connecting to GND,promised personal safety!!)

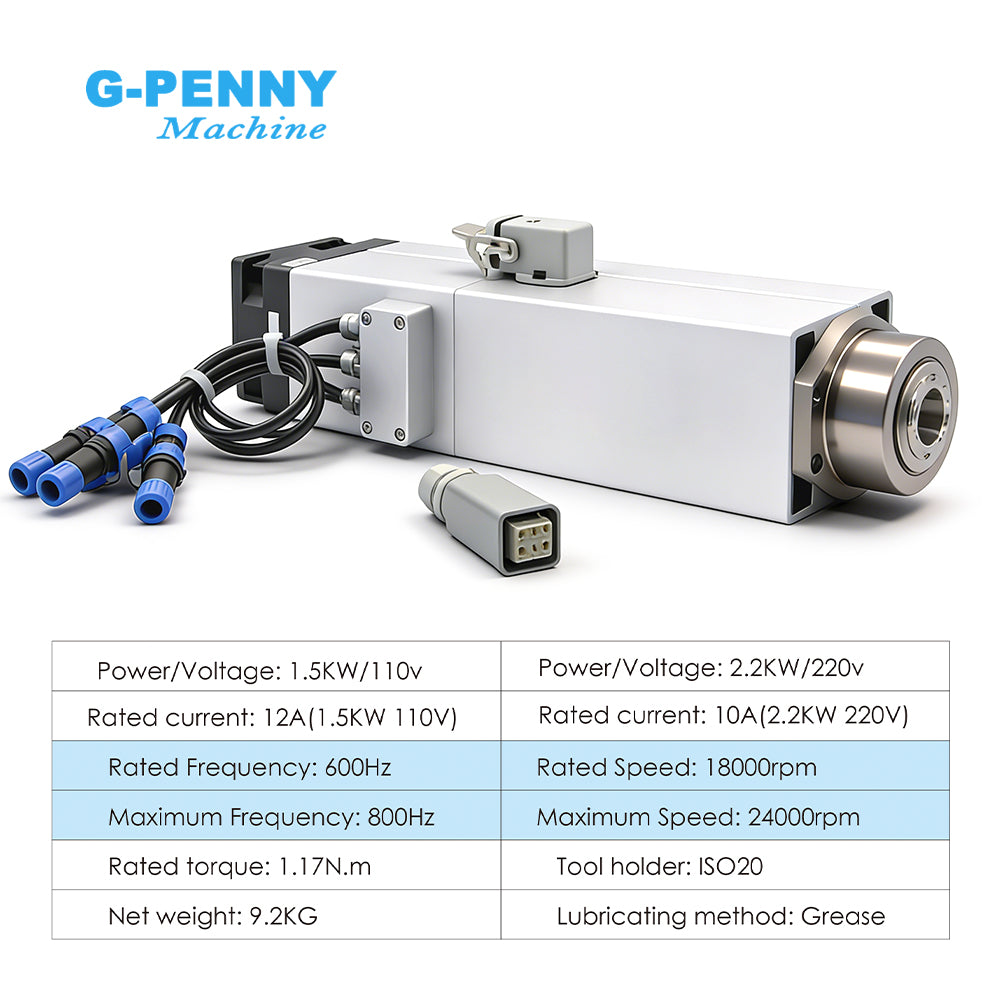

Power: 1.5KW / 2.2KW

Voltage: 110V / 220v

Rated Frequency: 600HZ, Rated Speed: 18000rpm

Maximum Frequency: 800HZ, Maximum Speed: 24000rpm

Rated torque: 1.17N.m

Tool holder: ISO20

Rated Current: 12A(110V 1.5KW) , 10A(220V 2.2KW)

Cooling method: Air cooled
N

et weight: 9.2KG

Lubricating method: Grease

Bearings type: 2*7005 & 2*7004 (Ceramic ball bearings)

Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.
