G-Penny 1.2kw ISO10 Water Cooled ATC Spindle Motor 30000rpm 1000Hz 4Pole with BD612 1.5KW Inverter kit
G-Penny 1.2kw ISO10 Water Cooled ATC Spindle Motor 30000rpm 1000Hz 4Pole with BD612 1.5KW Inverter kit
Couldn't load pickup availability
Spindle basic parameter:
Spindle Model：ATC1.2MC-65-30K
Voltage: 220v/380V
Power: 1.2kw
Current: 4A
Frequency: 1000H
Rotating speed: 30000rpm
Pole number: 4P
Phase number: 3
Weight(kg): 10KG
4 pcs Ceramic Ball Bearings
Tool holder: IS010

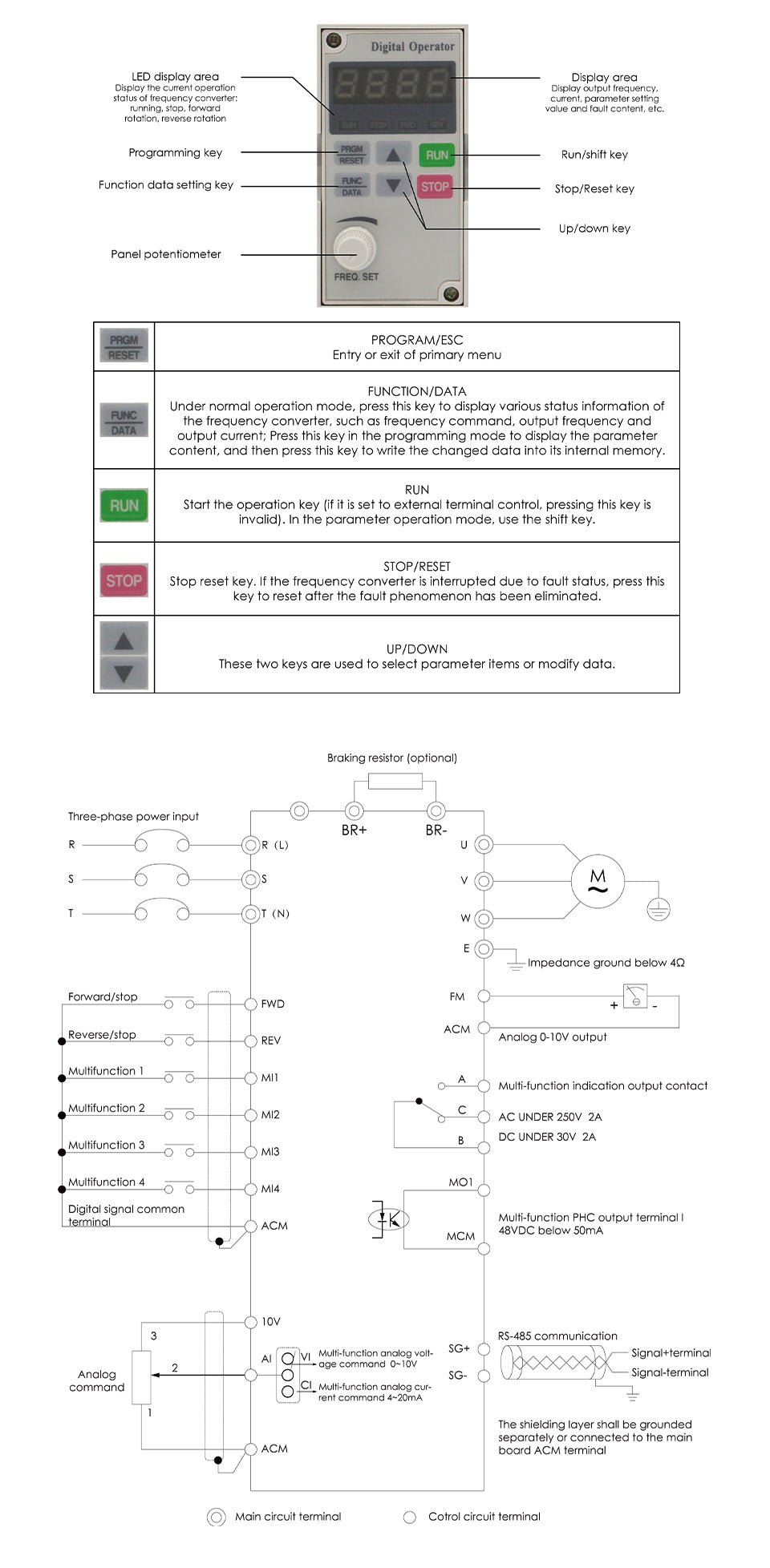

Inverter basic parameter:
Power: 1.5KW
Input Voltage: 220v/380v(+/-15%)
Input Frequency: 50/60Hz
Input Phase: 1 /3 phase
Output Voltage: 220v/380vAC
Output Frequency: 0-1000 Hz
Output Current: 1.5KW-7A(220V)/3.7A(380V)
Output Phase: 3 phase
Warranty: 1 year from the date you purchased
