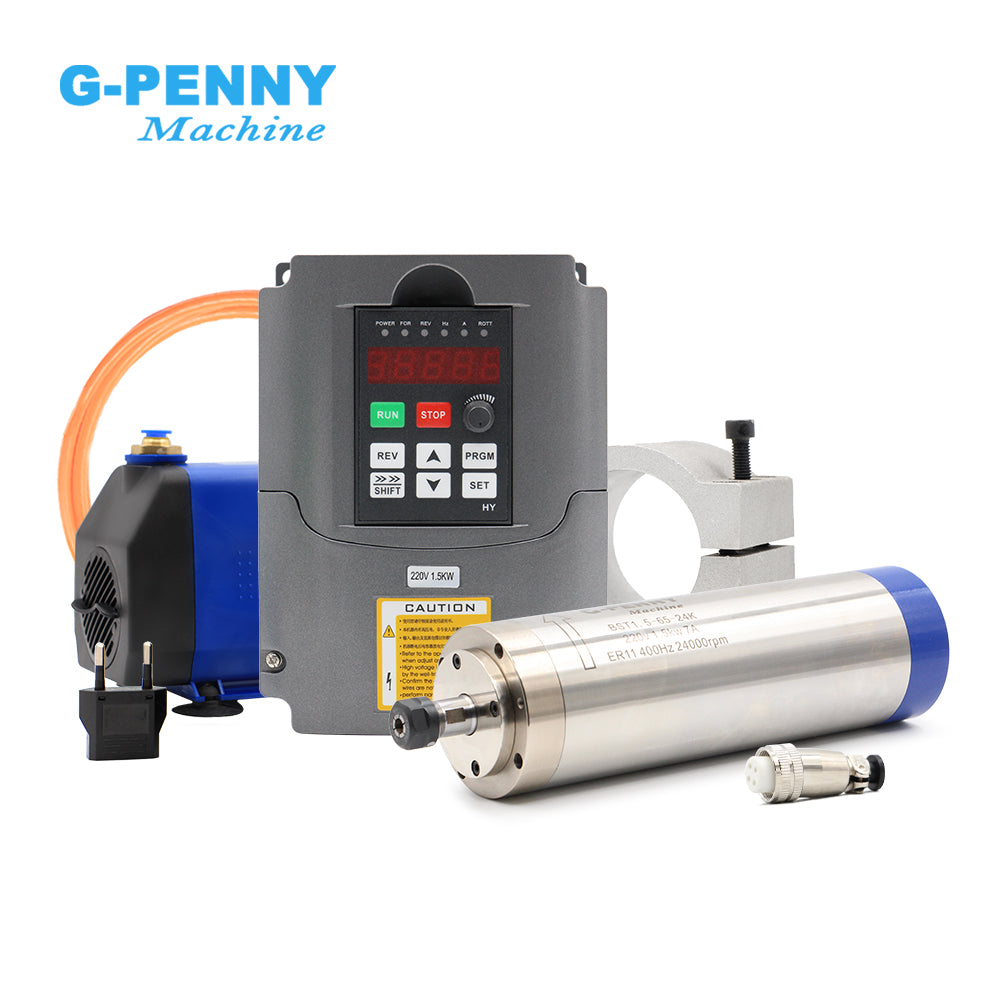

G-penny 1.5KW ER11 D65 Water cooled spindle motor,HuanYang inverter,Bracket,Water Pump,water Cooled Spindle Motor Kit

G-penny 1.5KW ER11 D65 Water cooled spindle motor,HuanYang inverter,Bracket,Water Pump,water Cooled Spindle Motor Kit

$285.00 USD
$285.00 USD
Sale Sold out
Voltage

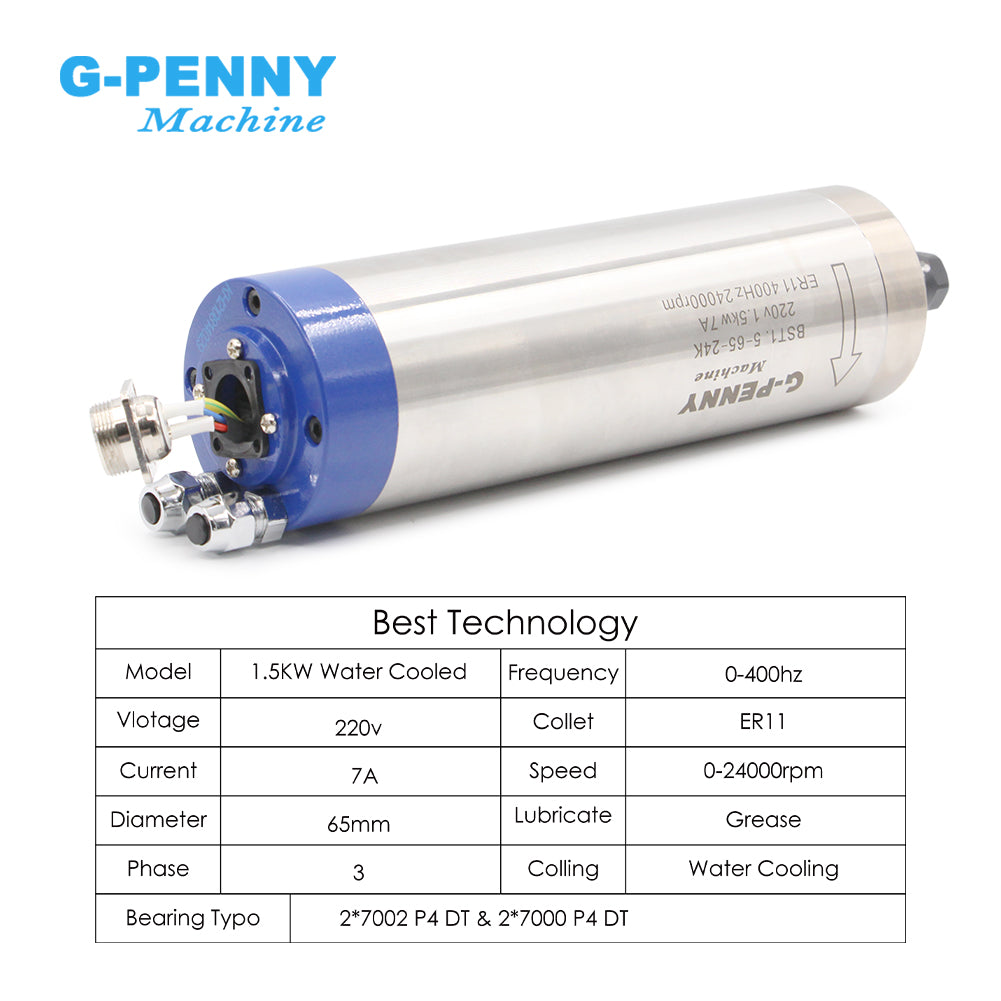

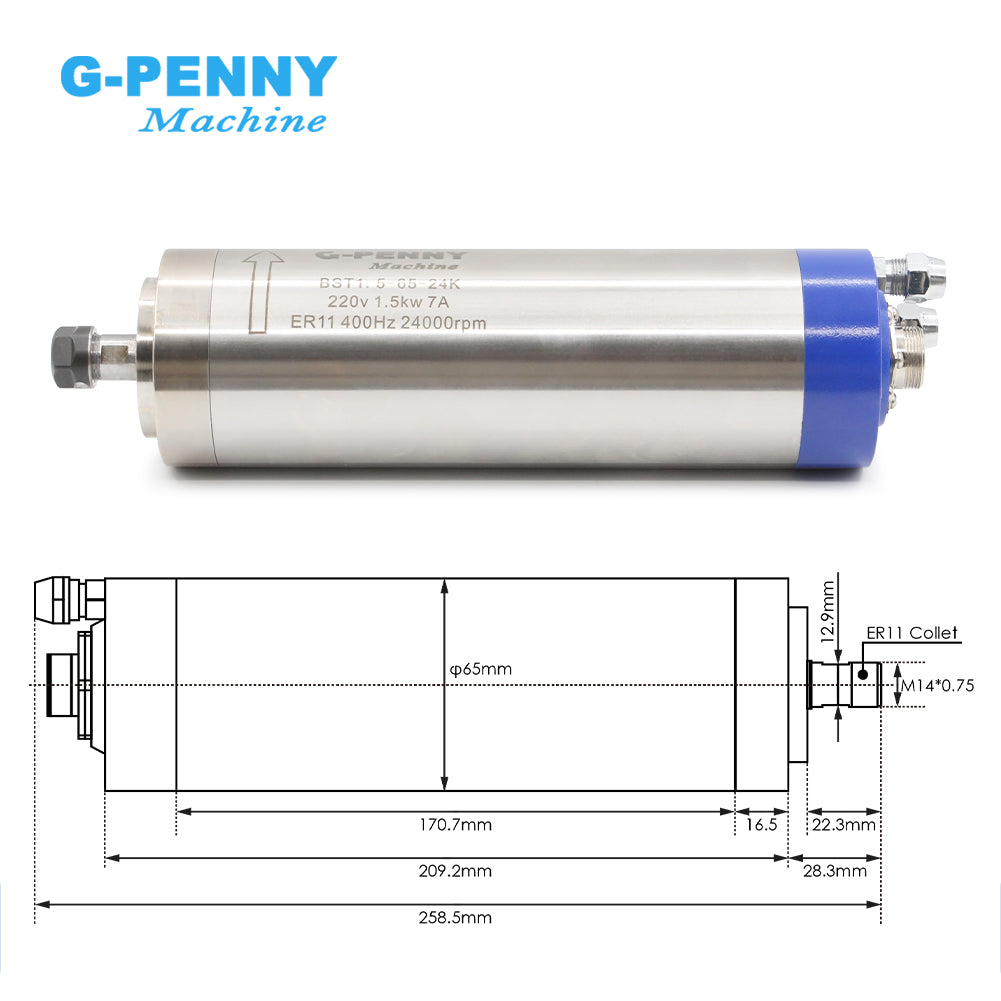

Size: 65 x 209mm (Middle body diameter:65mm;Length:209mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling
Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to
inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
Fully sealed P4 angular contact bearings
Bearing Type: 2×7002C P4 DT & 2 ×7000C P4 DT
4 pcs angular contact bearings
Water Cooling ER11 collet chunk
Grease Lubrication
Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on
gold,silver,copper, aluminium,Pb etc soft metal surface working.

Basic parameter:

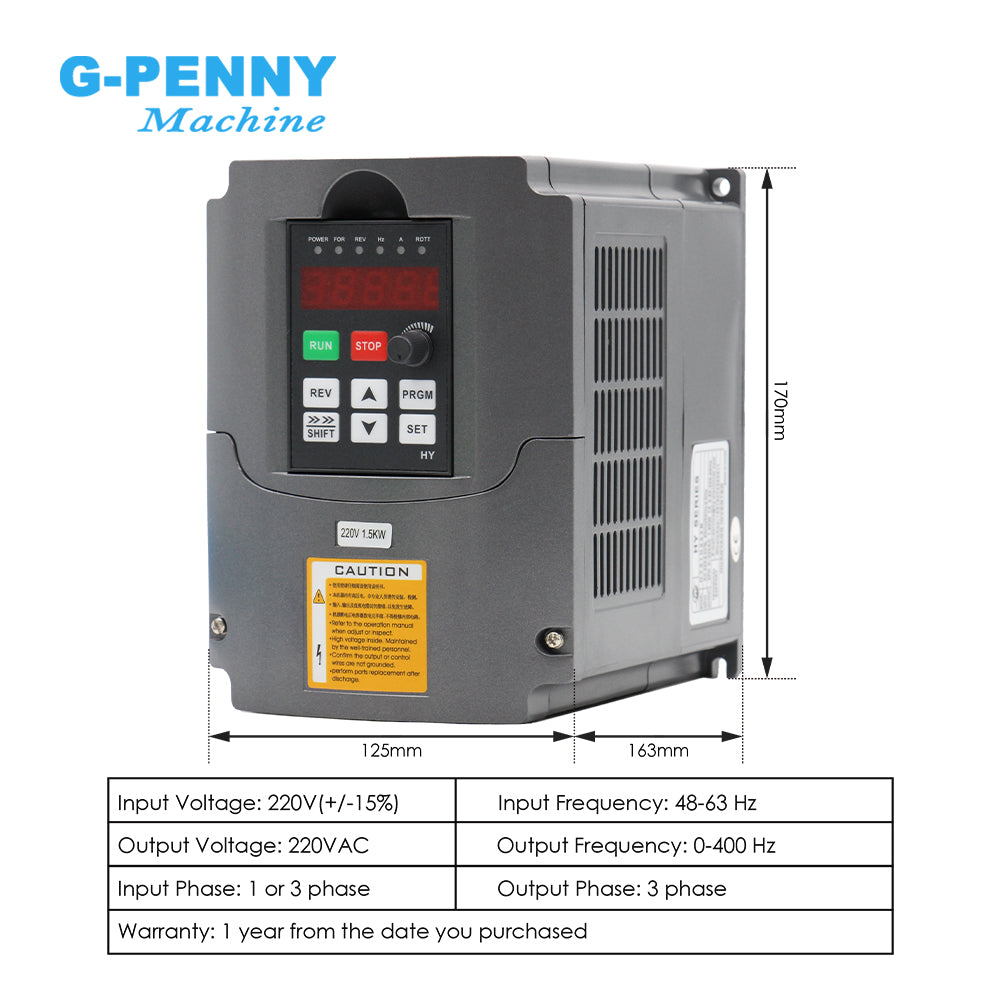

Inverter Type: Huanyang 220v 1.5kw
* Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us for item stock.
* Output Voltage: 220vAC
* Input Frequency: 48-63 Hz
* Output Frequency: 0-400 Hz
* Input Phase: 1 or 3 phase (Support 1 phase input, also support 3 phase input)
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
