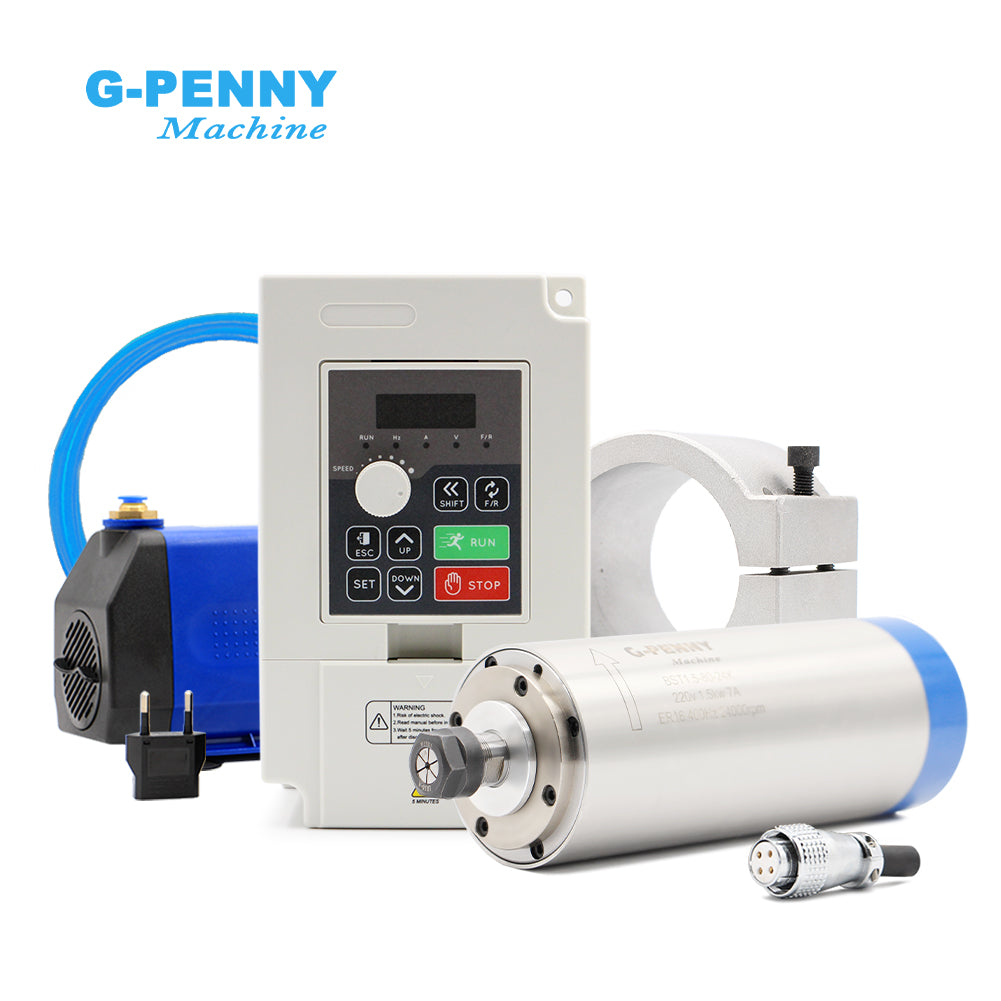

G-Penny 1.5KW ER16 D80 400HZ 24000RPM 220V/110V Water cooled spindle motor kit
G-Penny 1.5KW ER16 D80 400HZ 24000RPM 220V/110V Water cooled spindle motor kit
Couldn't load pickup availability

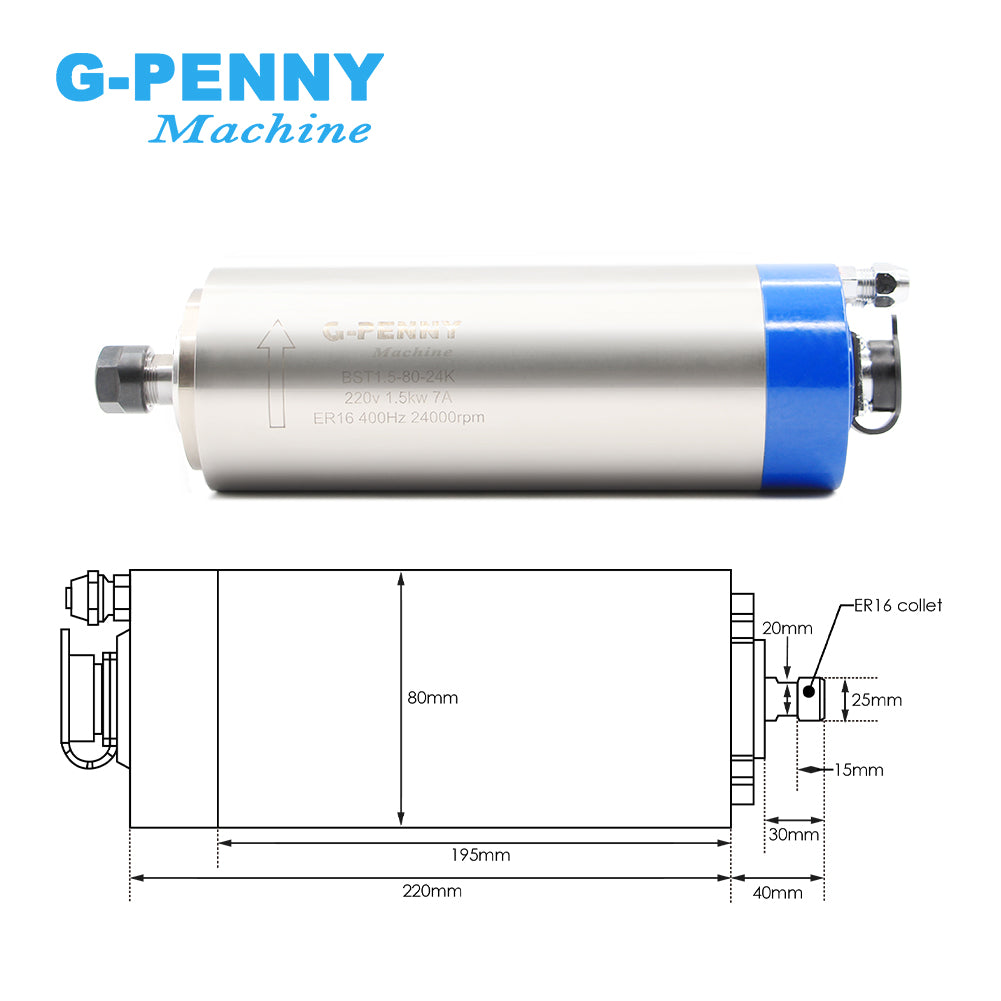

* Size: 80x220mm (Middle body diameter:80mm;Length:220mm)

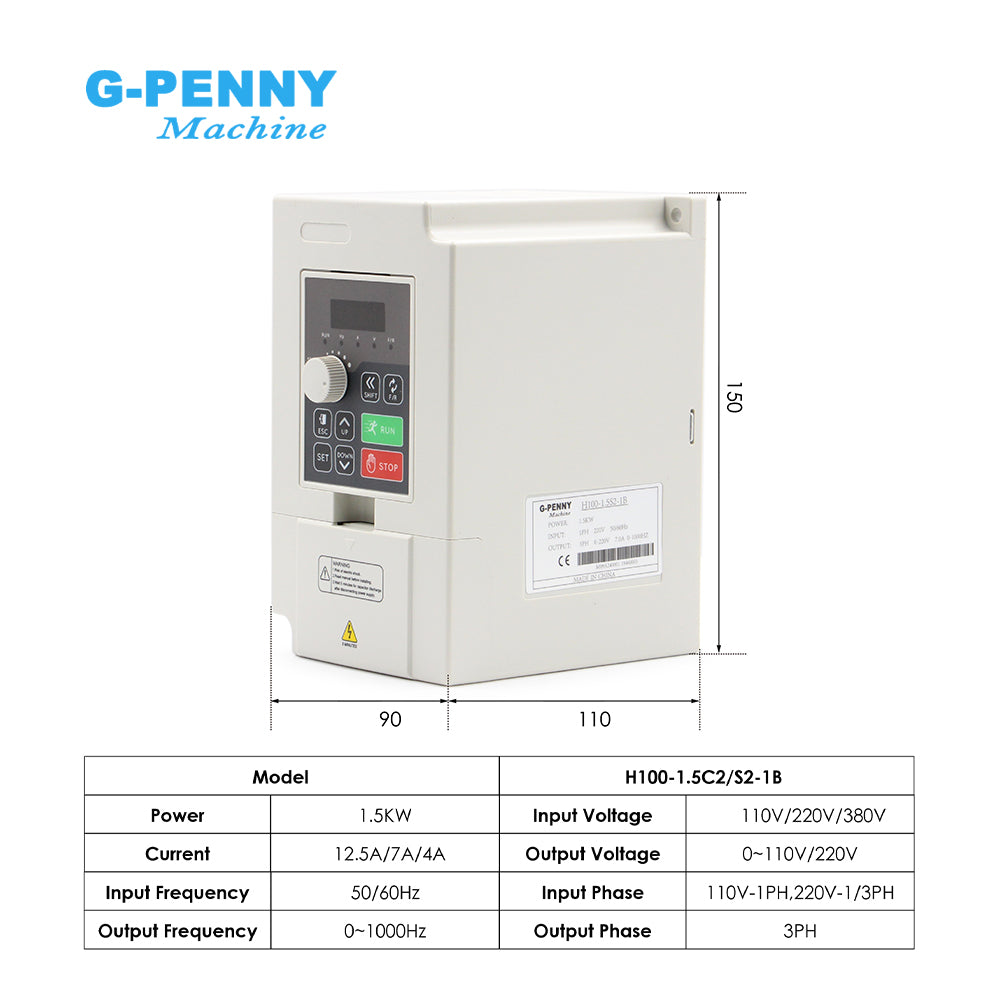

* Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling: Water cooling

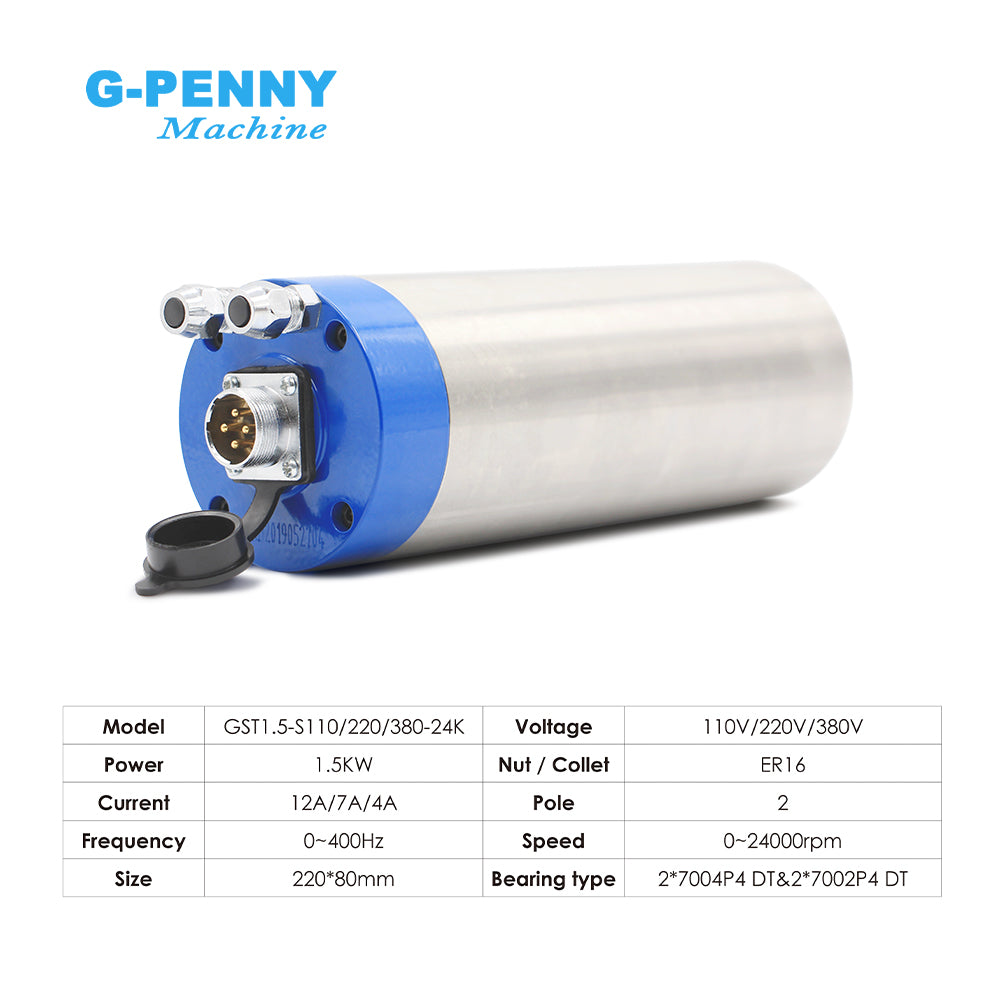

* Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power: 1.5kw (1HP=725w)
* Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
* Current: 7A
* Frequency: 0-400Hz
* Speed: 0-24000rpm
* Runout Off: 0.01mm
* Diameter(mm): 80mm
* Bearing Type: 2×7004C P4 DT &2×7002C P4 DT
* 4pcs fully sealed angular contact bearings
* Collet: ER16
* Clip Knifediameter: 1mm,2mm,3mm,3.175mm,4mm,5mm,6mm,6.35mm,7mm,8mm,9mm,10mm.
* Water Cooling ER16 collet chunk
* Grease Lubrication
