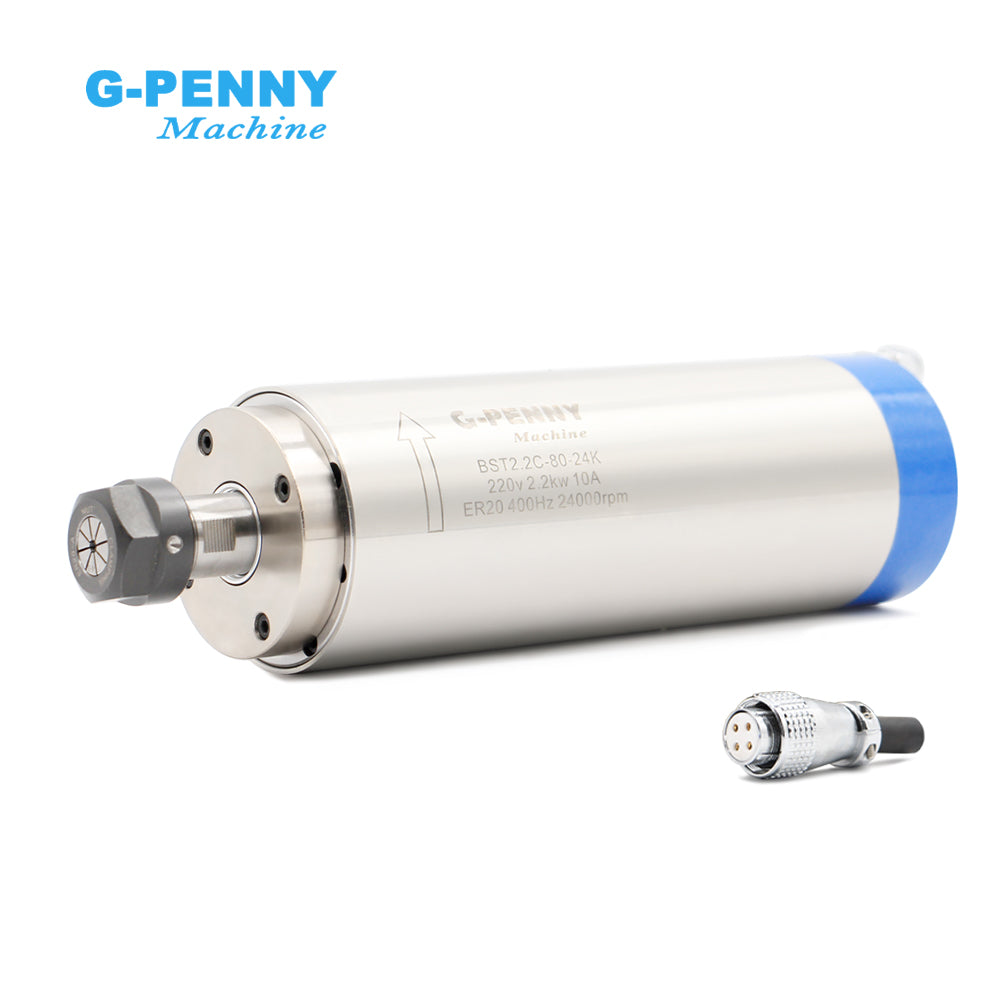

G-PENNY 2.2KW ER20 D80 110v/220v/380v 80*230mm Water cooled spindle motor 4pcs Steel ball bearings
G-PENNY 2.2KW ER20 D80 110v/220v/380v 80*230mm Water cooled spindle motor 4pcs Steel ball bearings
Regular price
$120.69 USD
Regular price
$158.80 USD
Sale price
$120.69 USD
Unit price
per
Couldn't load pickup availability
Size: 80x230mm (Middle body diameter:80mm; Length:230mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling
Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
Power: 2.2kw
Voltage: 220v
Current: 10A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: Less than 0.01mm
Diameter(mm): 80
Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT
4pcs 7 Series Fully Sealed Angular Contact Bearing
Collet: ER20
Clip Knife Diameter: 13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water Cooling ER20 collet chunk
Grease Lubrication
Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling
Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
Power: 2.2kw
Voltage: 220v
Current: 10A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: Less than 0.01mm
Diameter(mm): 80
Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT
4pcs 7 Series Fully Sealed Angular Contact Bearing
Collet: ER20
Clip Knife Diameter: 13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water Cooling ER20 collet chunk
Grease Lubrication
Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
