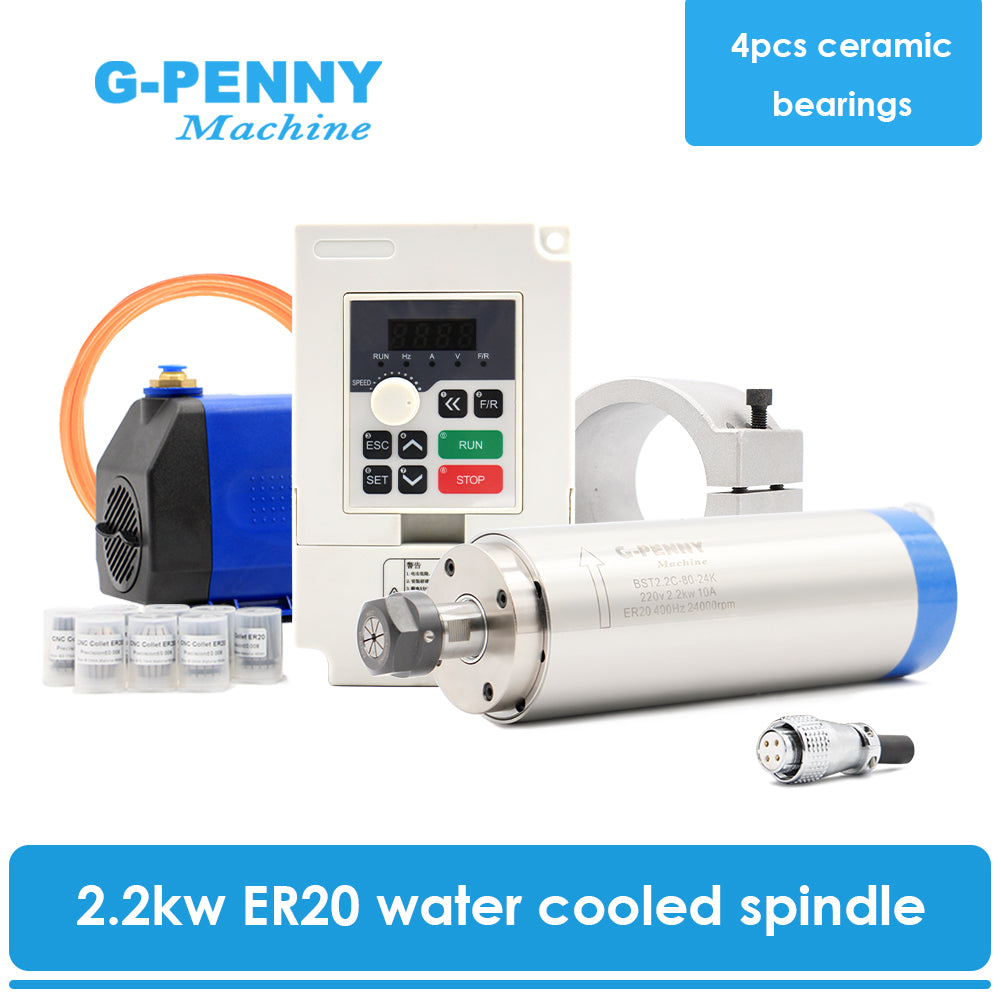

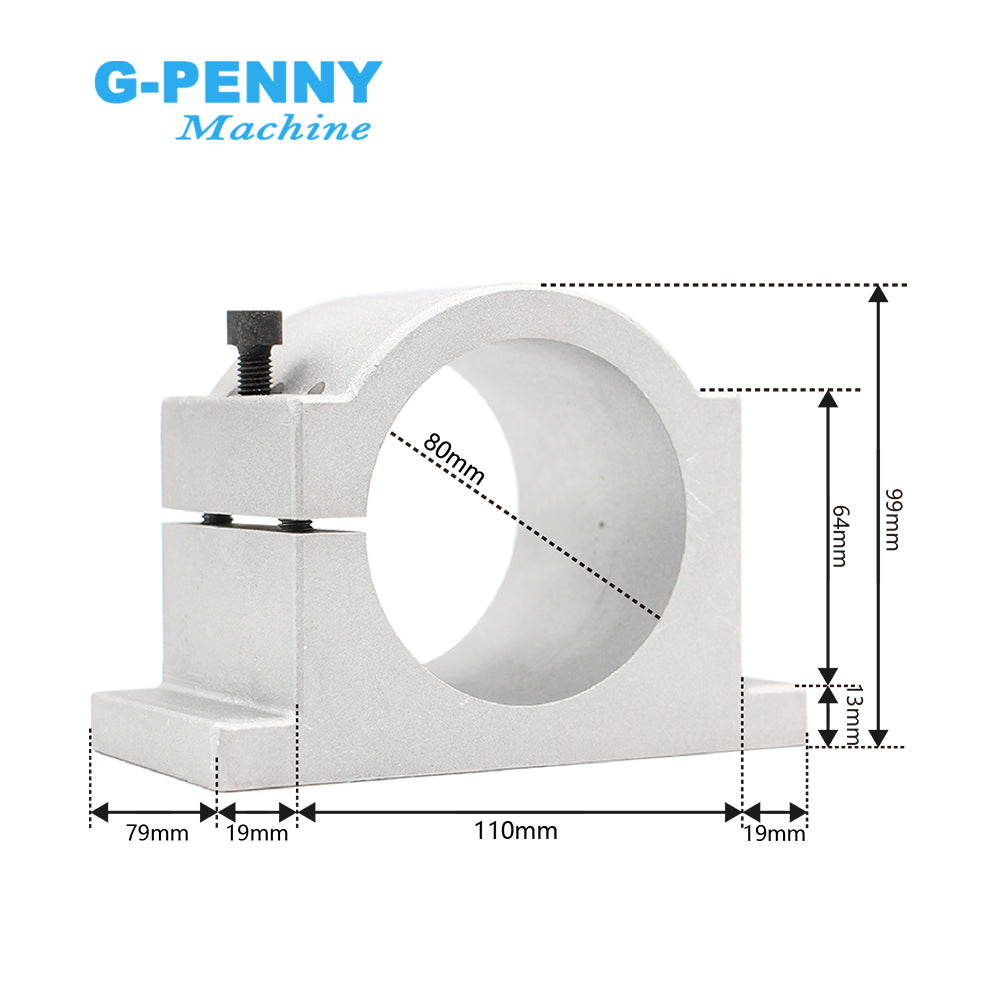

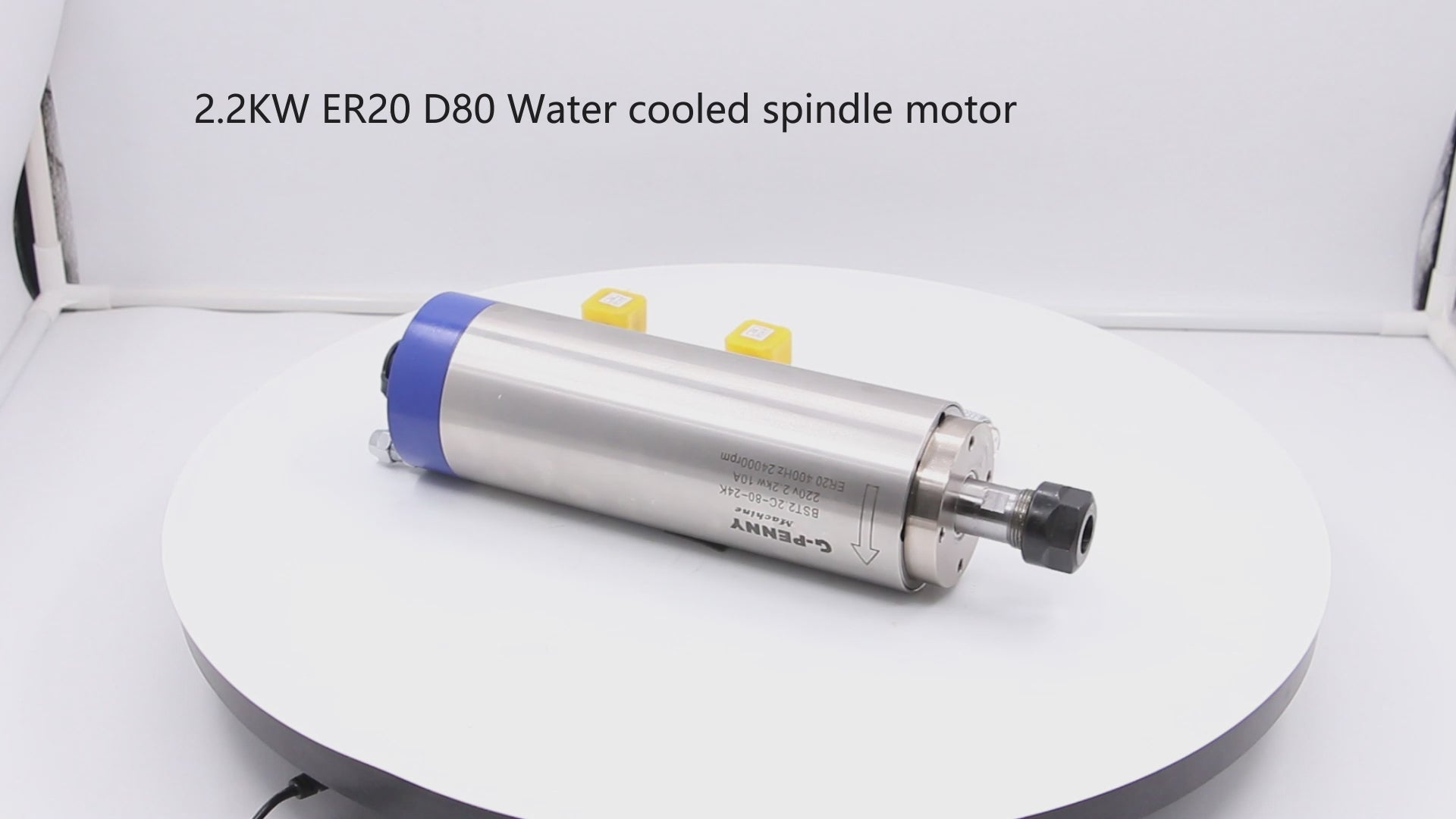

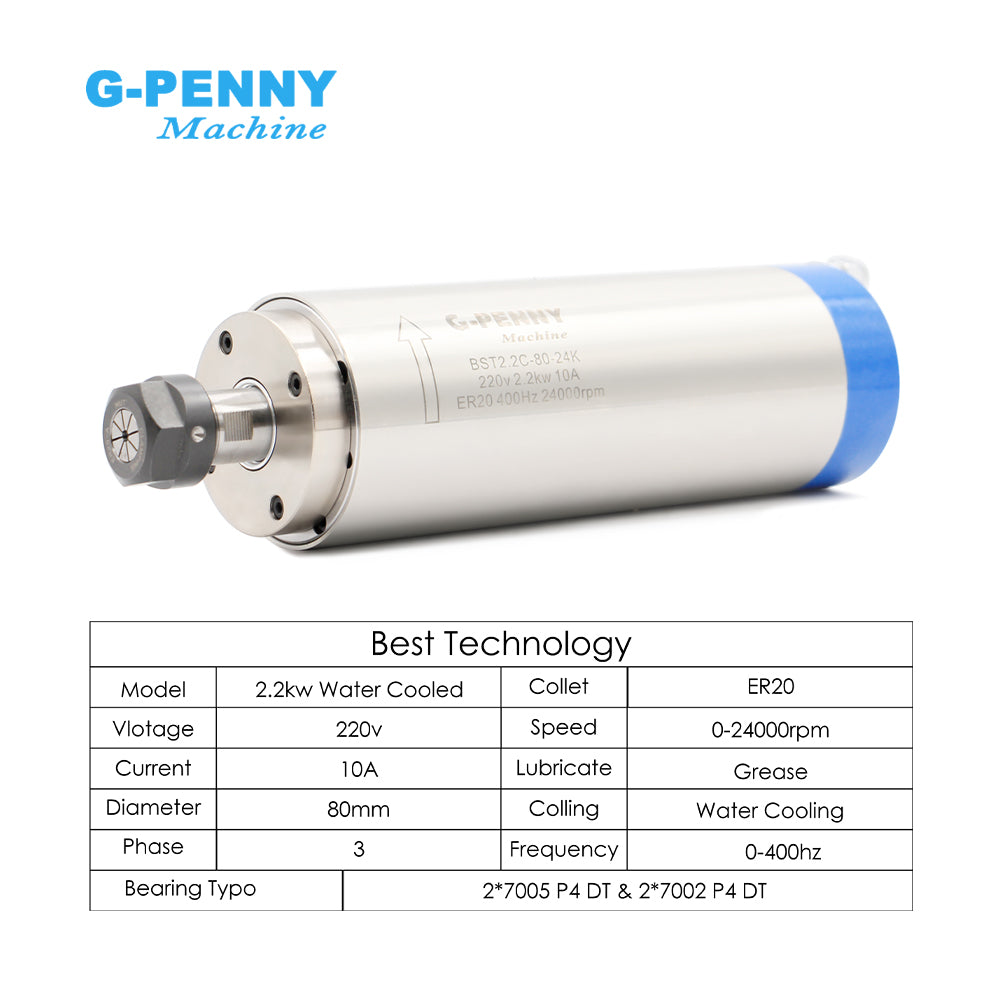

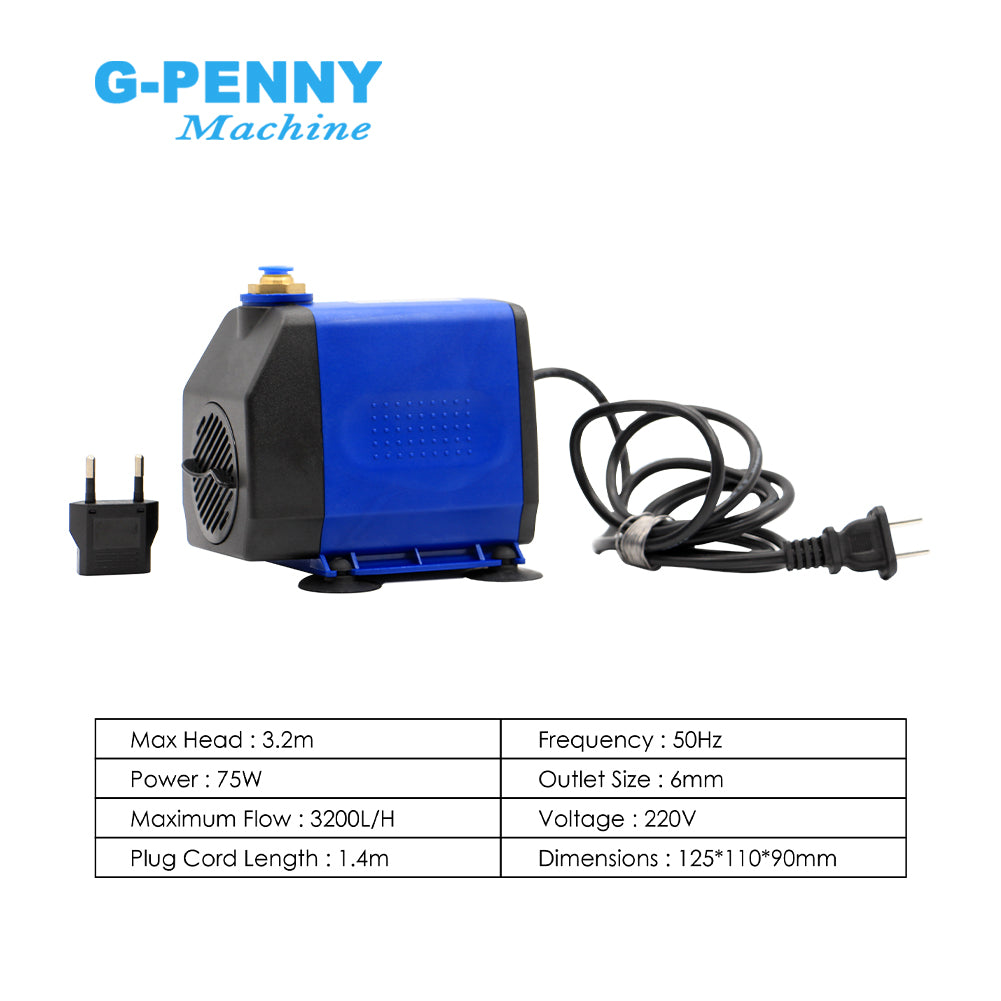

G-Penny 2.2KW ER20 D80 110V/220V Water cooled spindle motor kit & Inverter & brcaket & water pump

G-Penny 2.2KW ER20 D80 110V/220V Water cooled spindle motor kit & Inverter & brcaket & water pump

$223.56 USD
$223.56 USD
Sale Sold out
Voltage

  • Basic parameter:

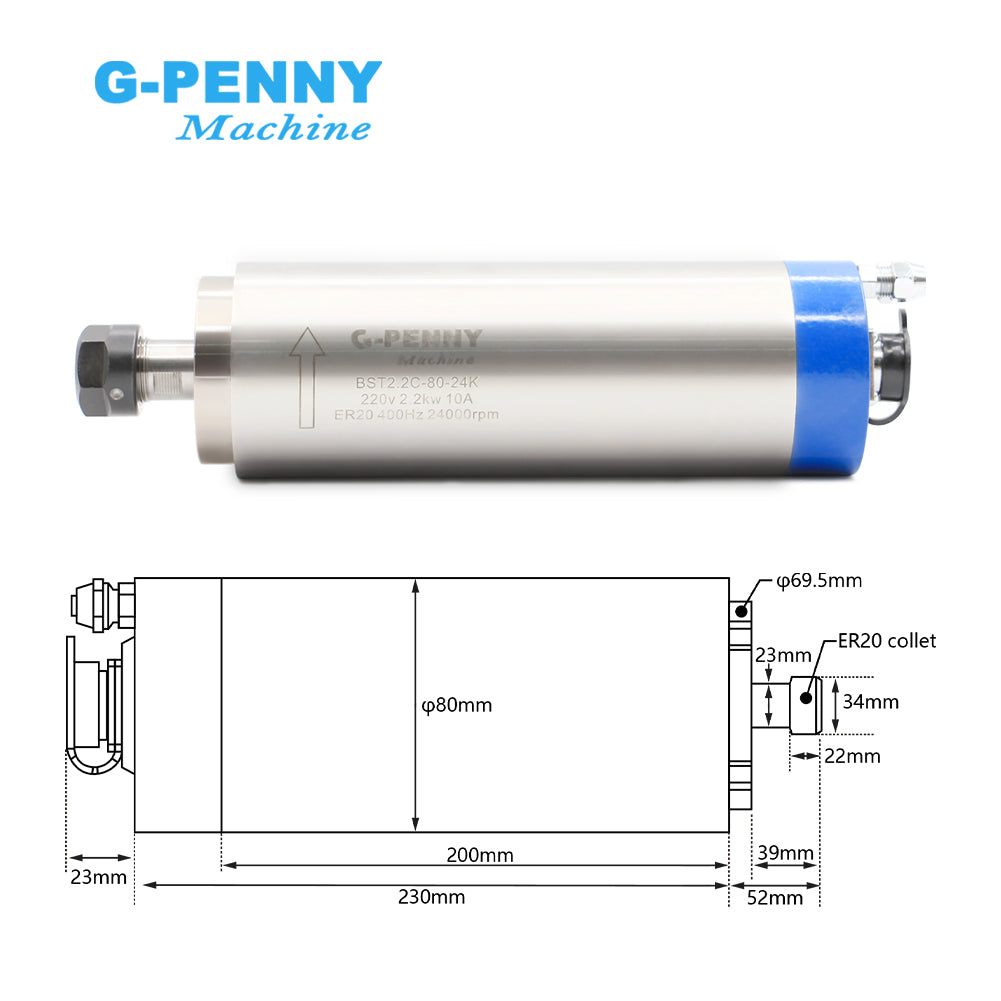

  • Size:80x230mm(Middle body diameter:80mmxLength:230mm)

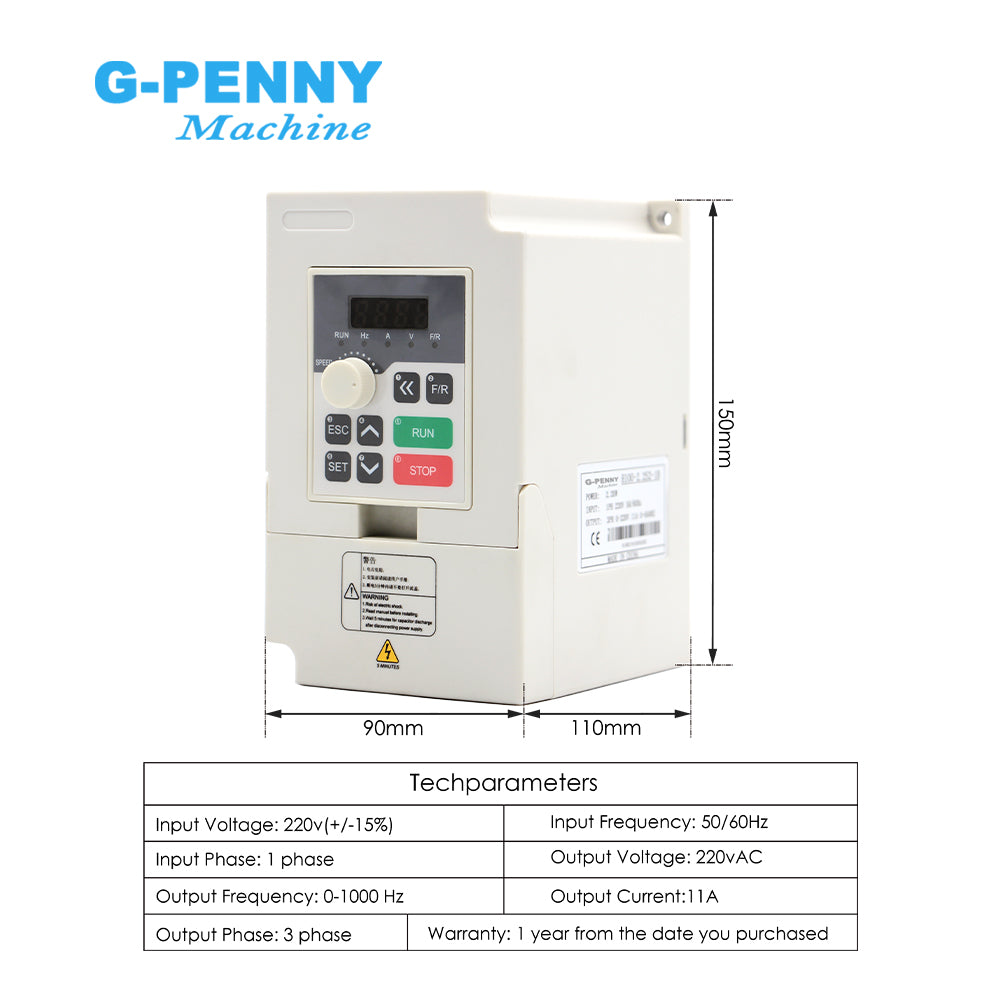

  • Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

  • Cooling:Water cooling

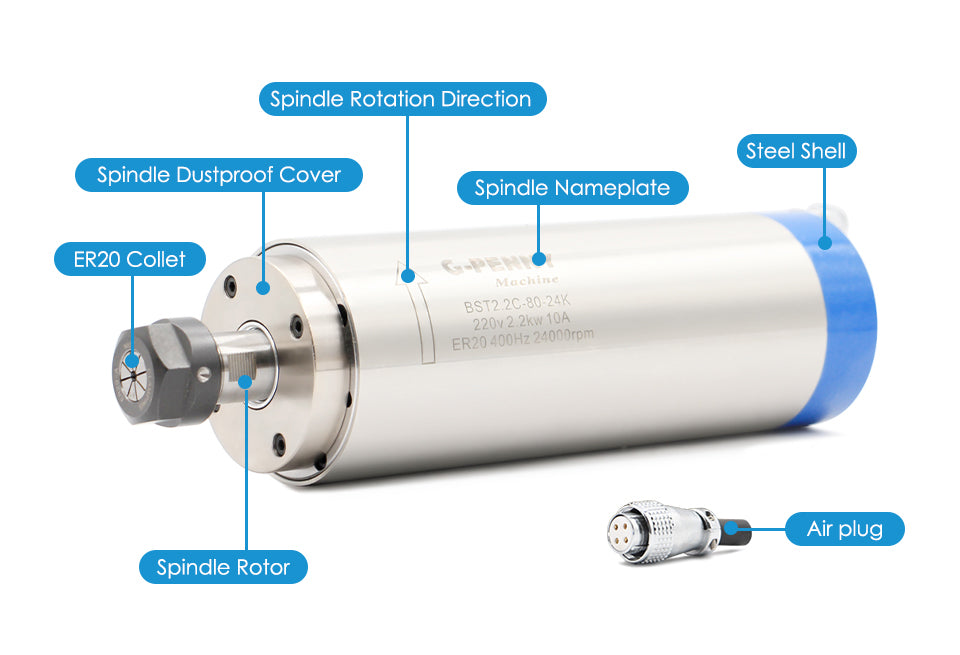

  • Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.

  • Power: 2.2kw

  • Voltage: 110v / 220v

  • Current: 20A / 10A

  • Frequency: 0-400Hz

  • Speed: 0-24000rpm

  • Runout Off: Less than 0.01mm

  • Diameter(mm): 80

  • Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT

  • 4pcs fully sealed angular contact bearings

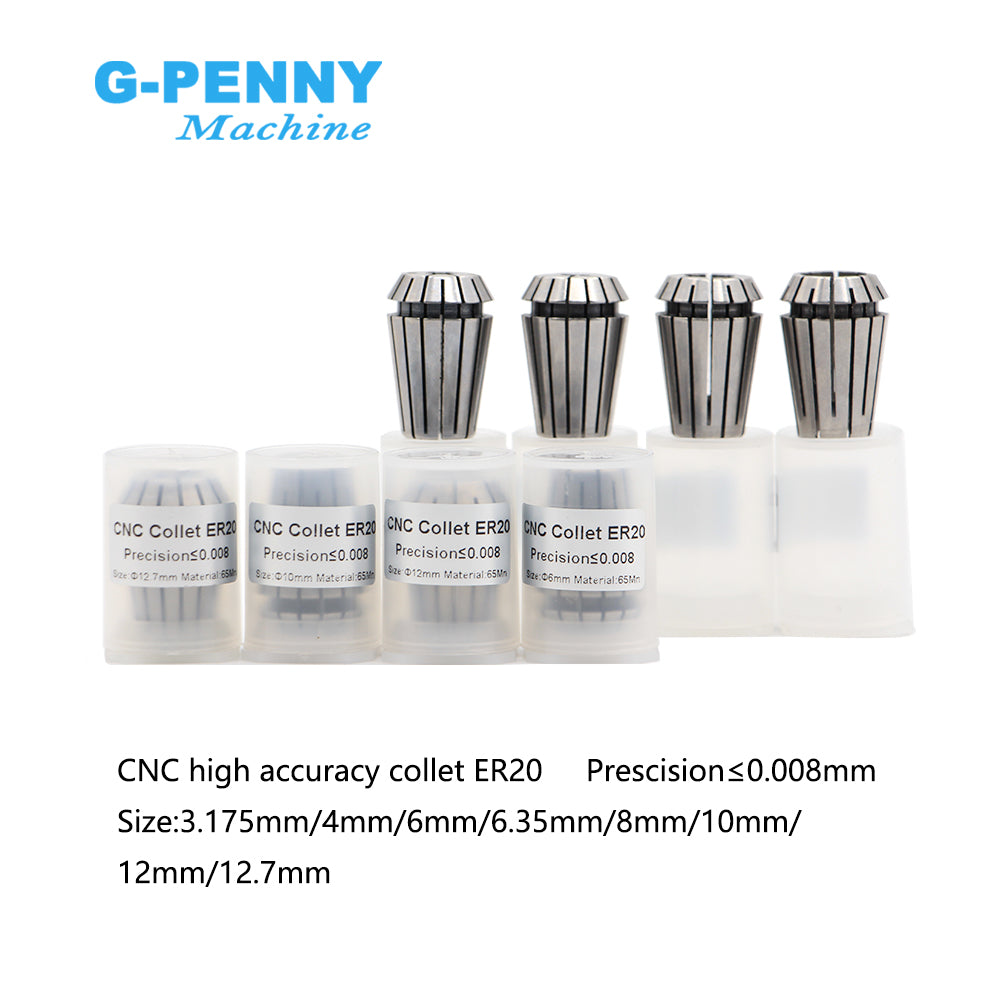

  • Collet: ER20

  • Clip Knife Diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)

  • Water Cooling ER20 collet chunk

  • Grease Lubrication

  • Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
