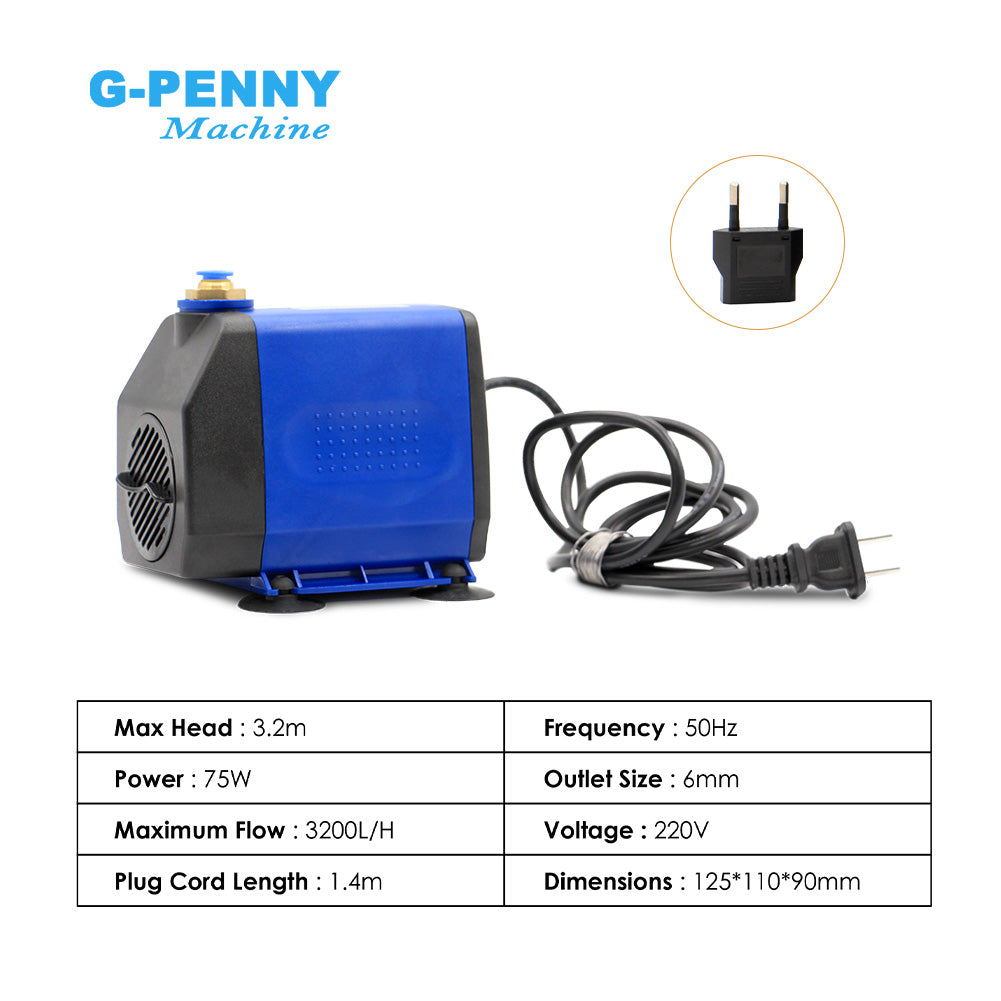

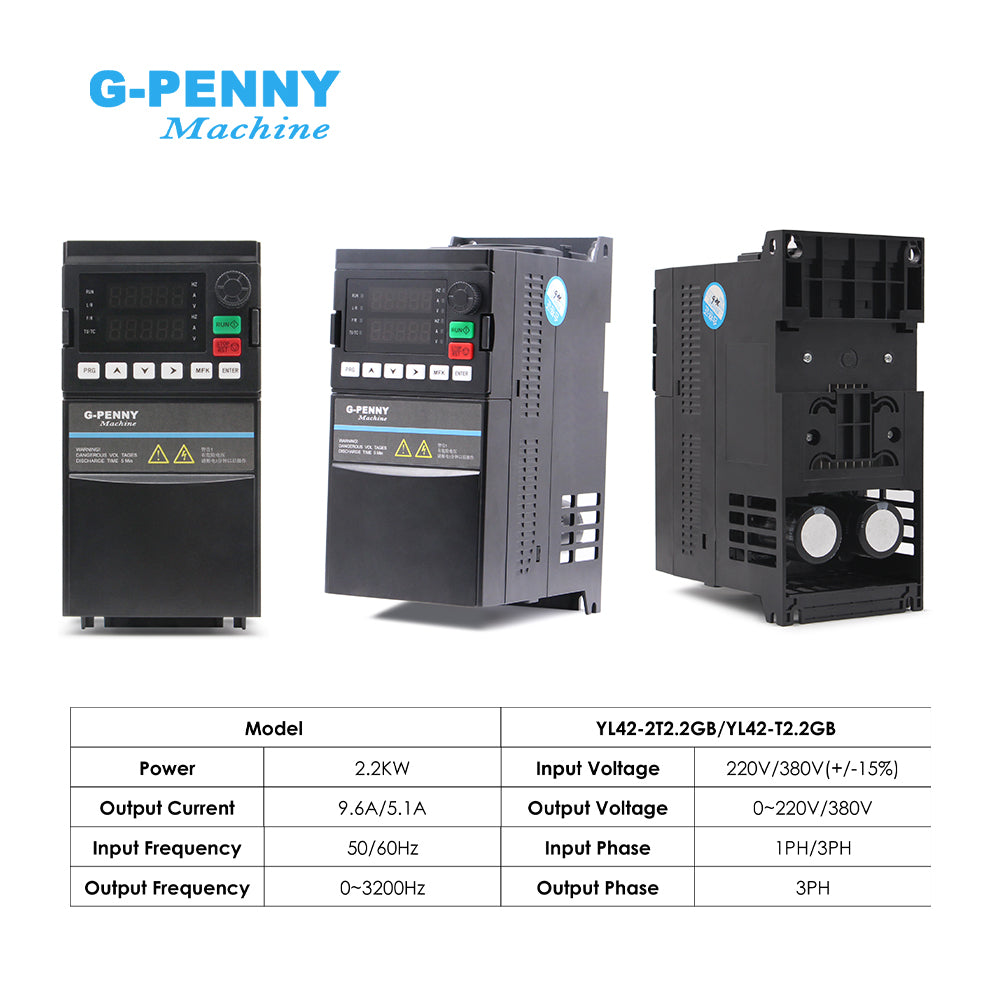

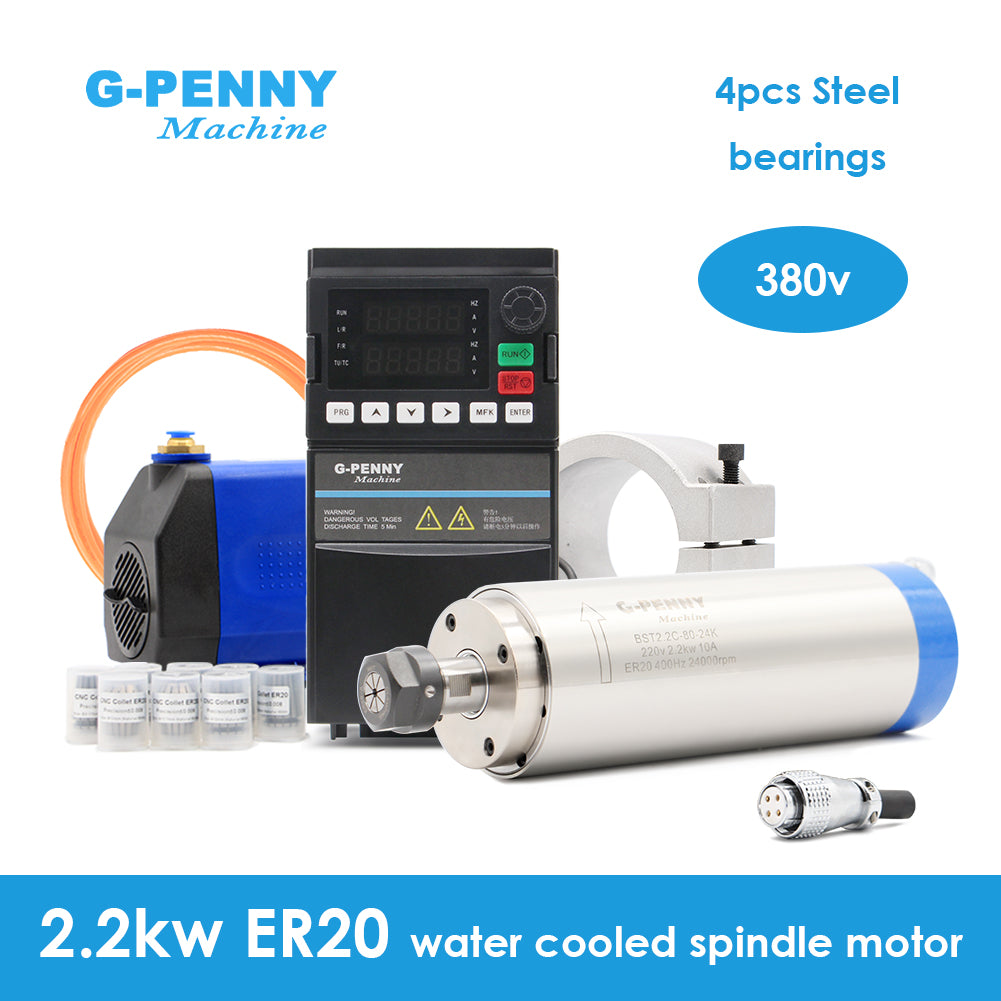

G-Penny 2.2kw ER20 220v Water Cooled Spindle Kit 4pcs ball bearings & 2.2kw Inverter & 80mm Spindle Bracket & 75w Water Pump

G-Penny 2.2kw ER20 220v Water Cooled Spindle Kit 4pcs ball bearings & 2.2kw Inverter & 80mm Spindle Bracket & 75w Water Pump

$198.91 USD
$288.80 USD $198.91 USD
Sale Sold out
Bearings

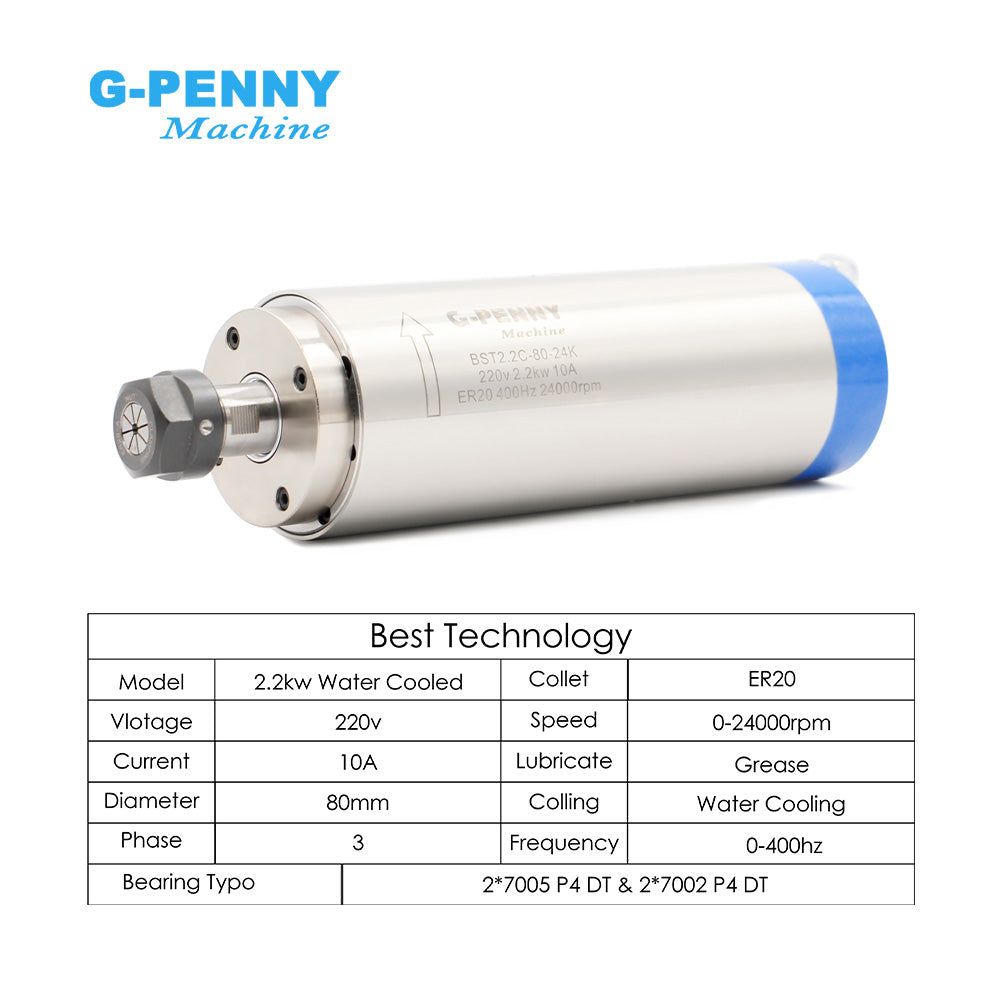

Basic parameter:

Size:80x230mm(Middle body diameter:80mmxLength:230mm)

Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

Cooling:Water cooling

Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.

Power:2.2kw

Voltage:220v

Current:10A

Frequency:0-400Hz

Speed: 0-24000rpm

Runout Off:Less than 0.01mm

Diameter(mm): 80

Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT

4pcs fully sealed angular contact bearings

Collet: ER20

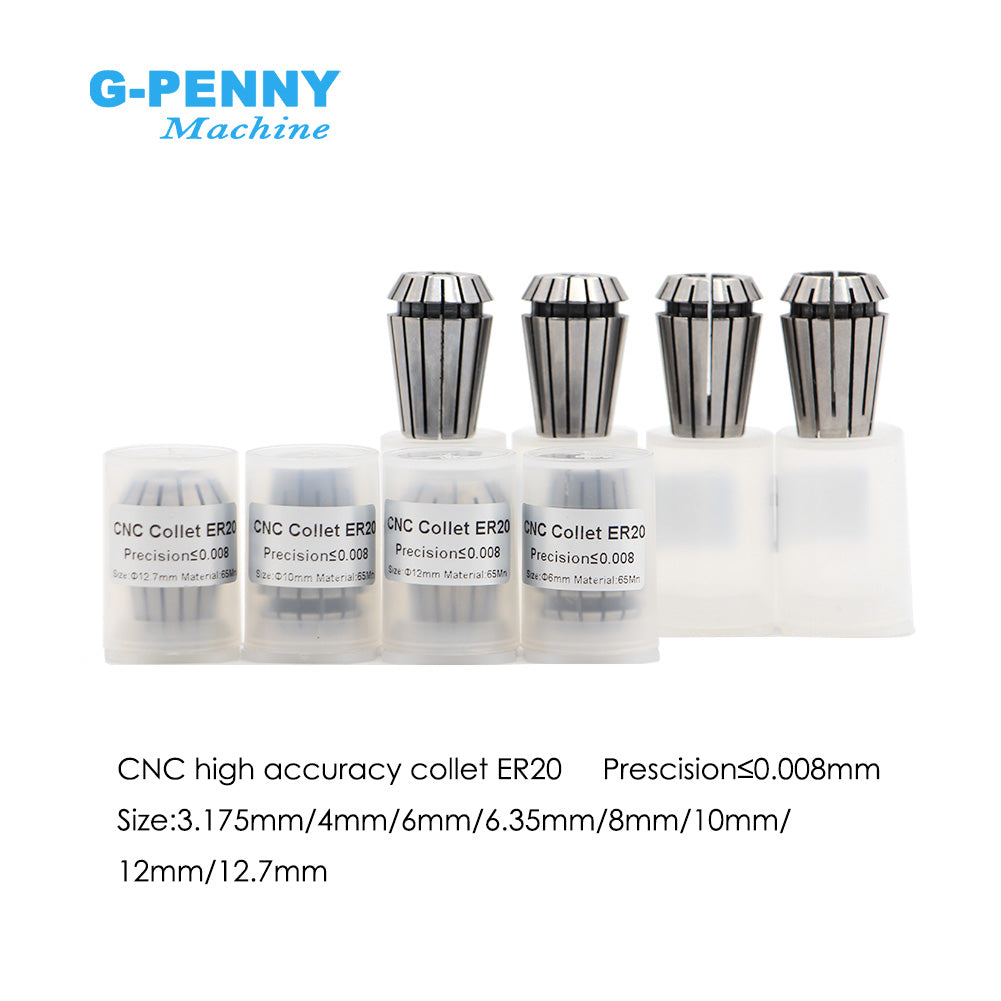

Clip Knife Diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)

Water Cooling ER20 collet chunk

Grease Lubrication

Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
