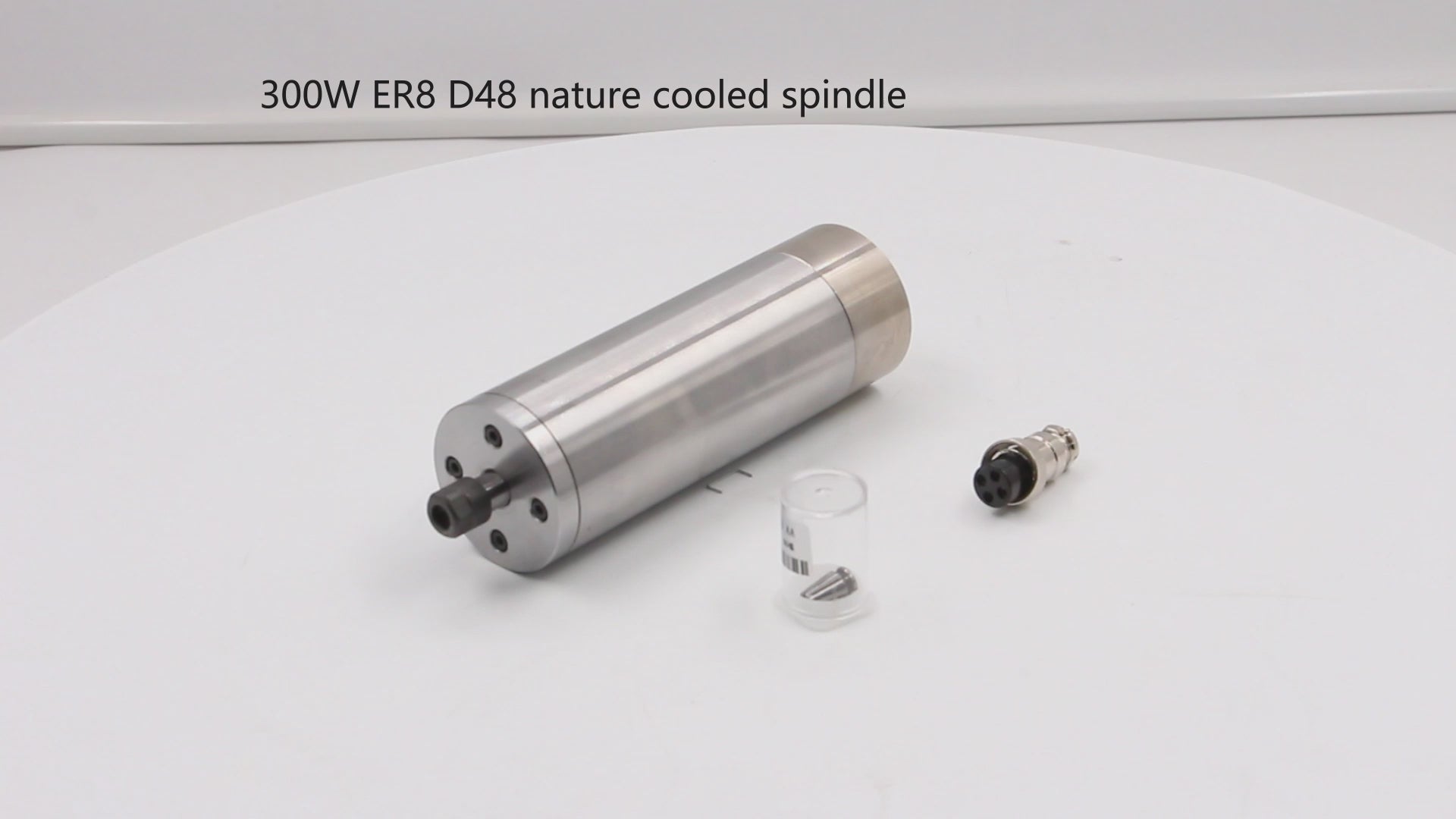

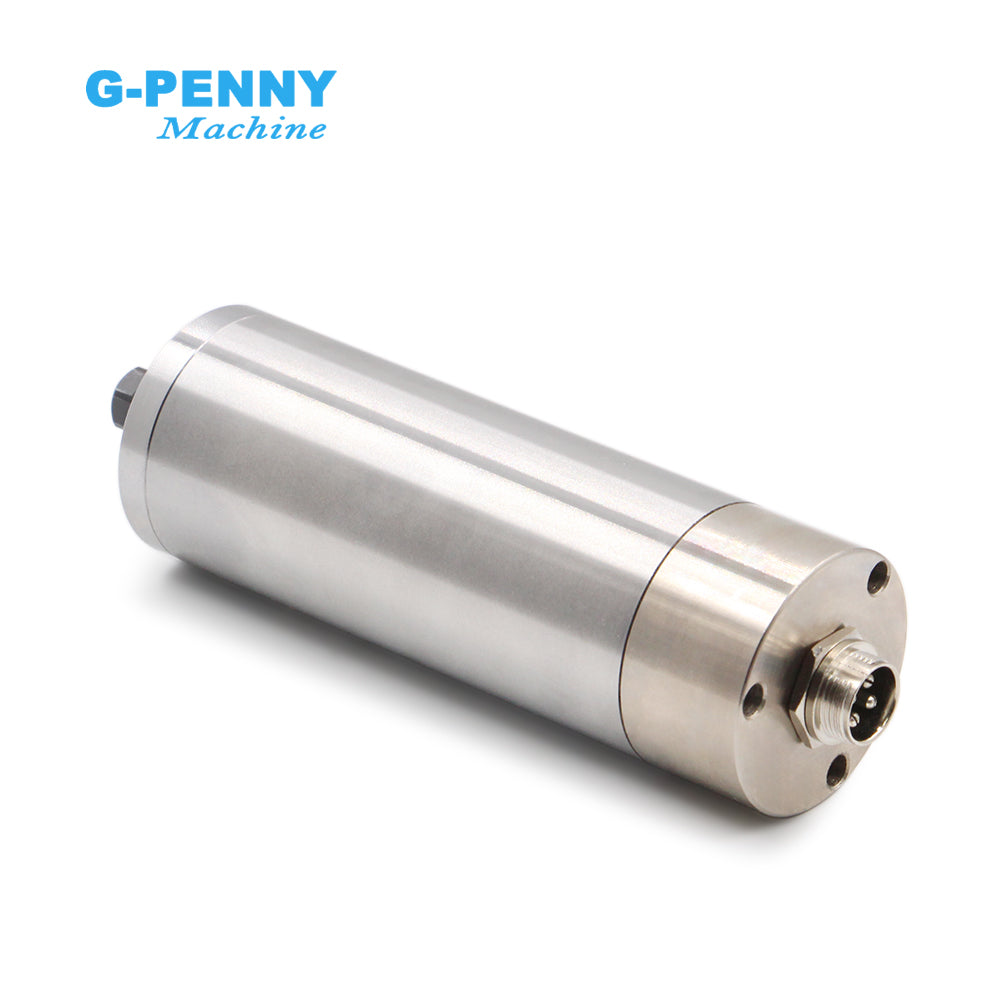

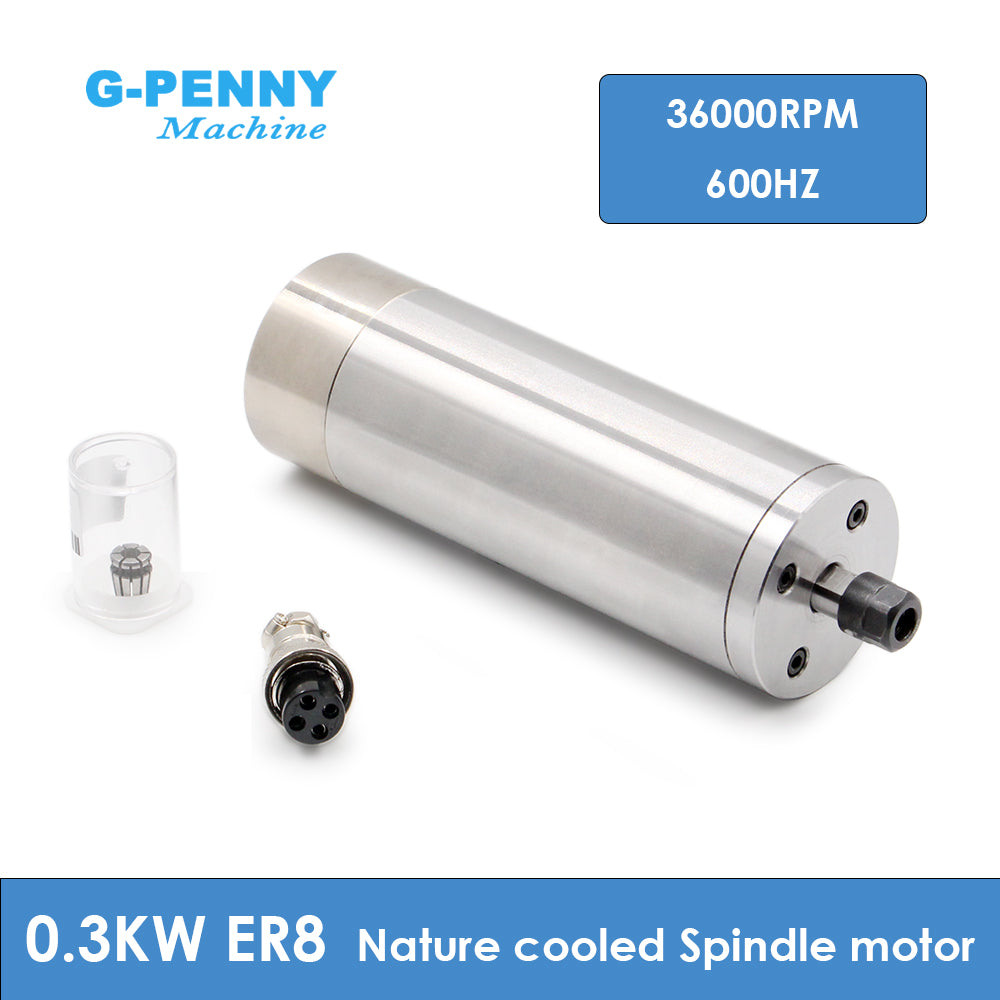

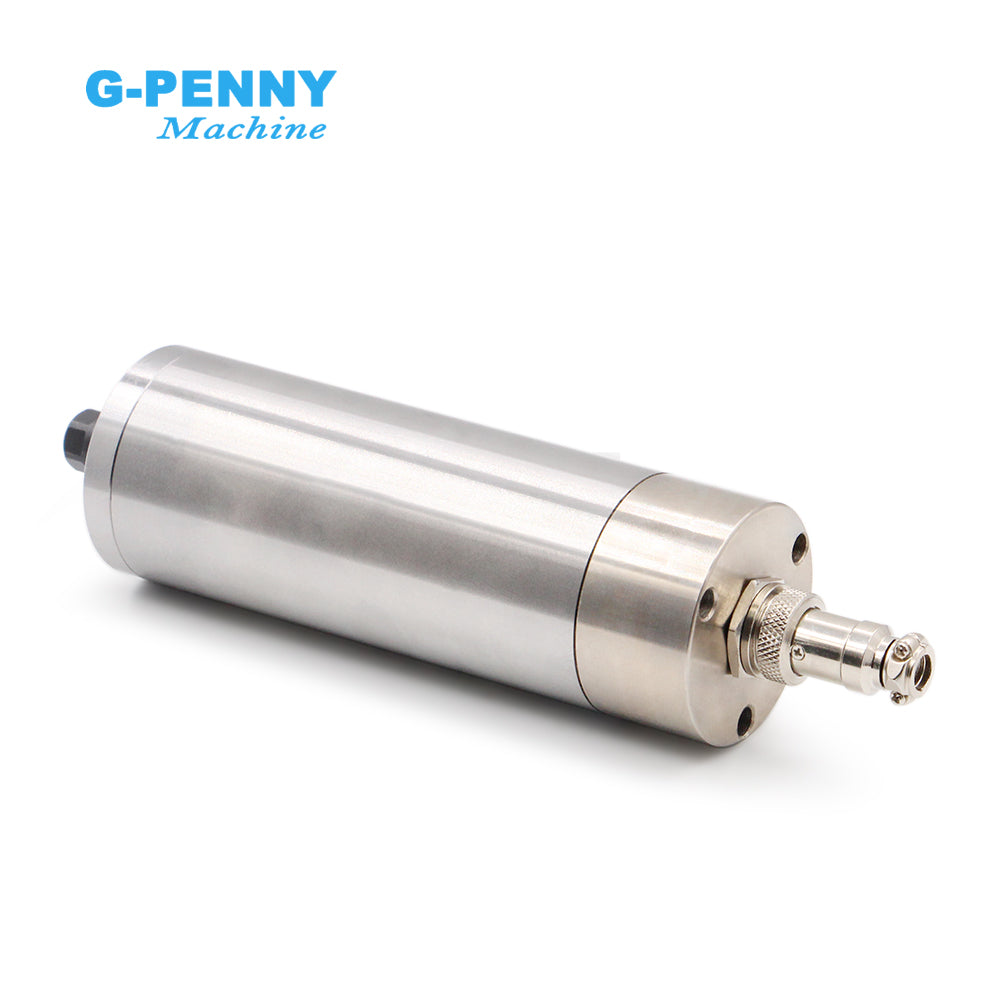

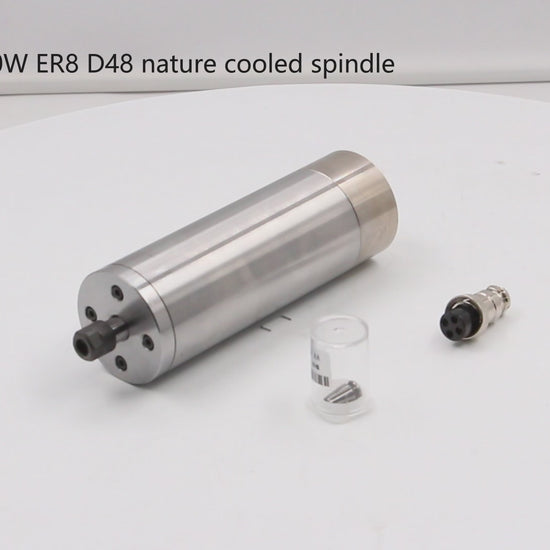

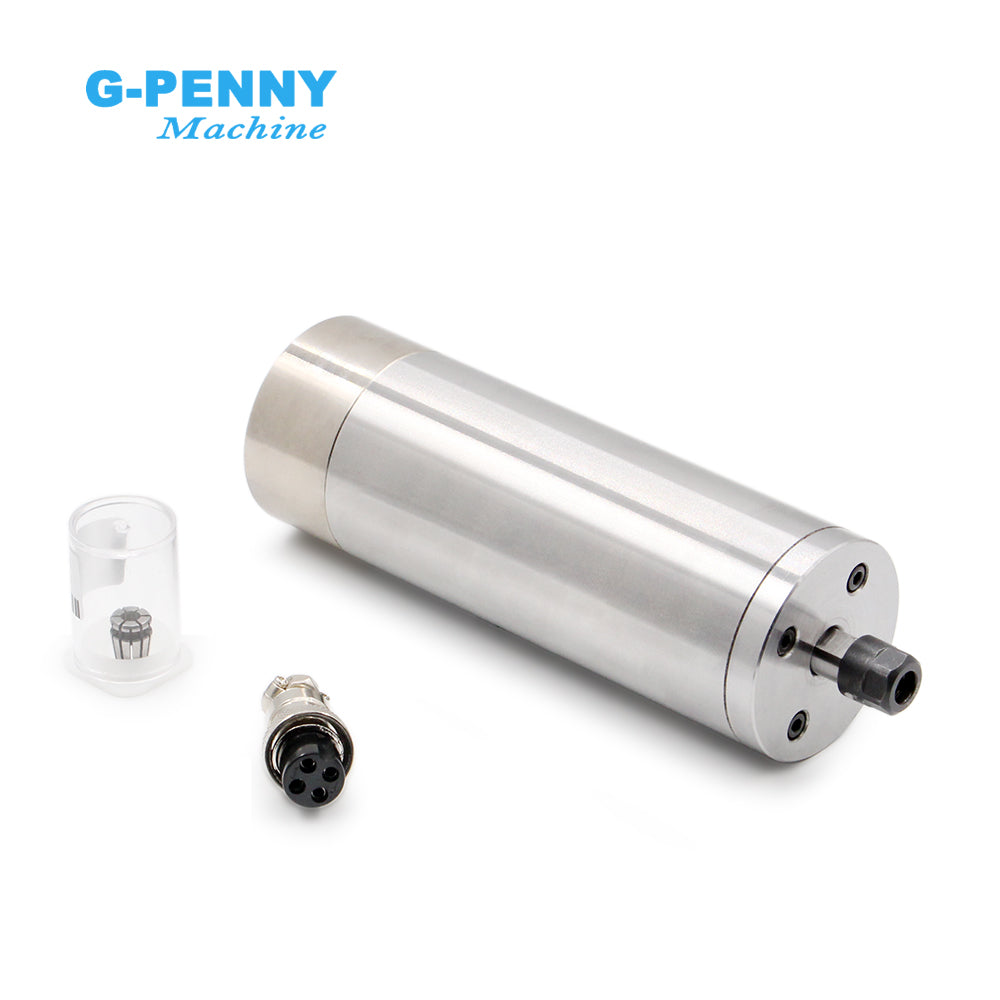

G-Penny 300W ER8 D48 Nature Cooled Spindle Motor 600HZ 36000RPM 52V Use for Desktop Engraving Machine, Ivory Carving Equipment
G-Penny 300W ER8 D48 Nature Cooled Spindle Motor 600HZ 36000RPM 52V Use for Desktop Engraving Machine, Ivory Carving Equipment
Couldn't load pickup availability

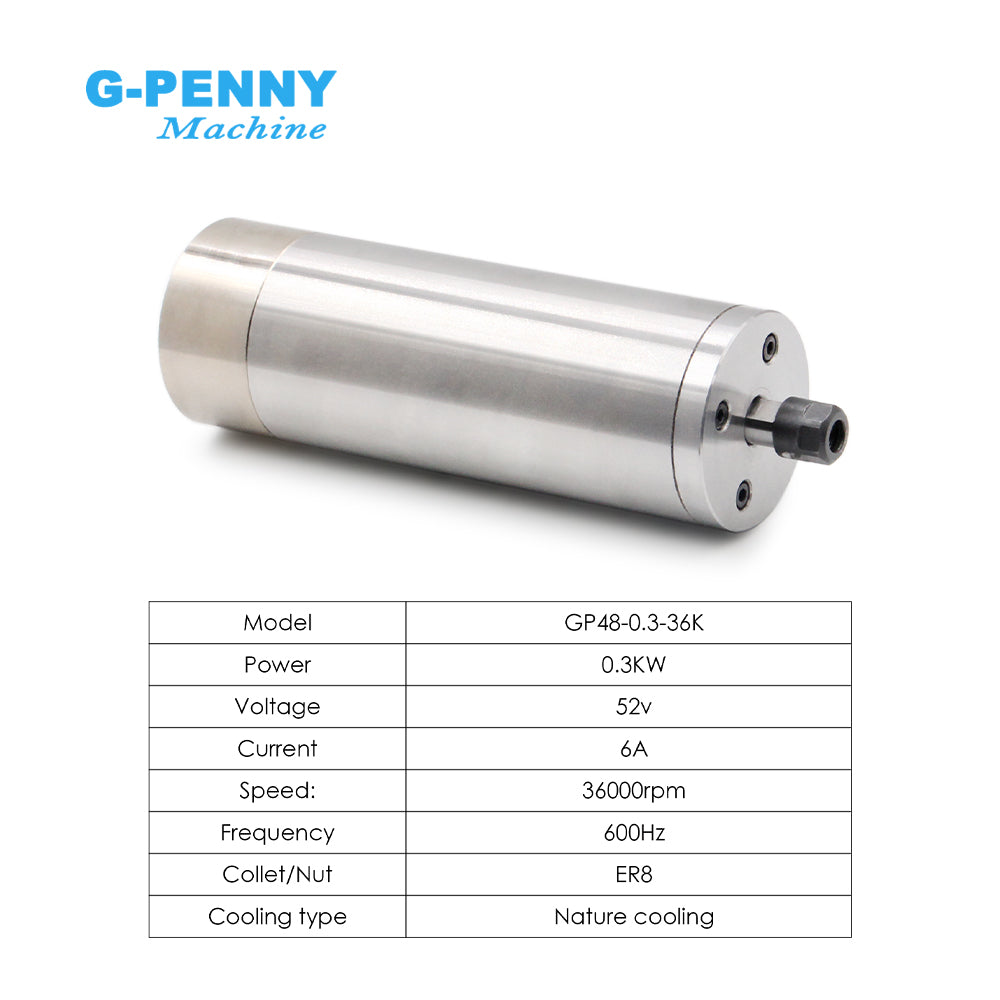

Basic parameter:

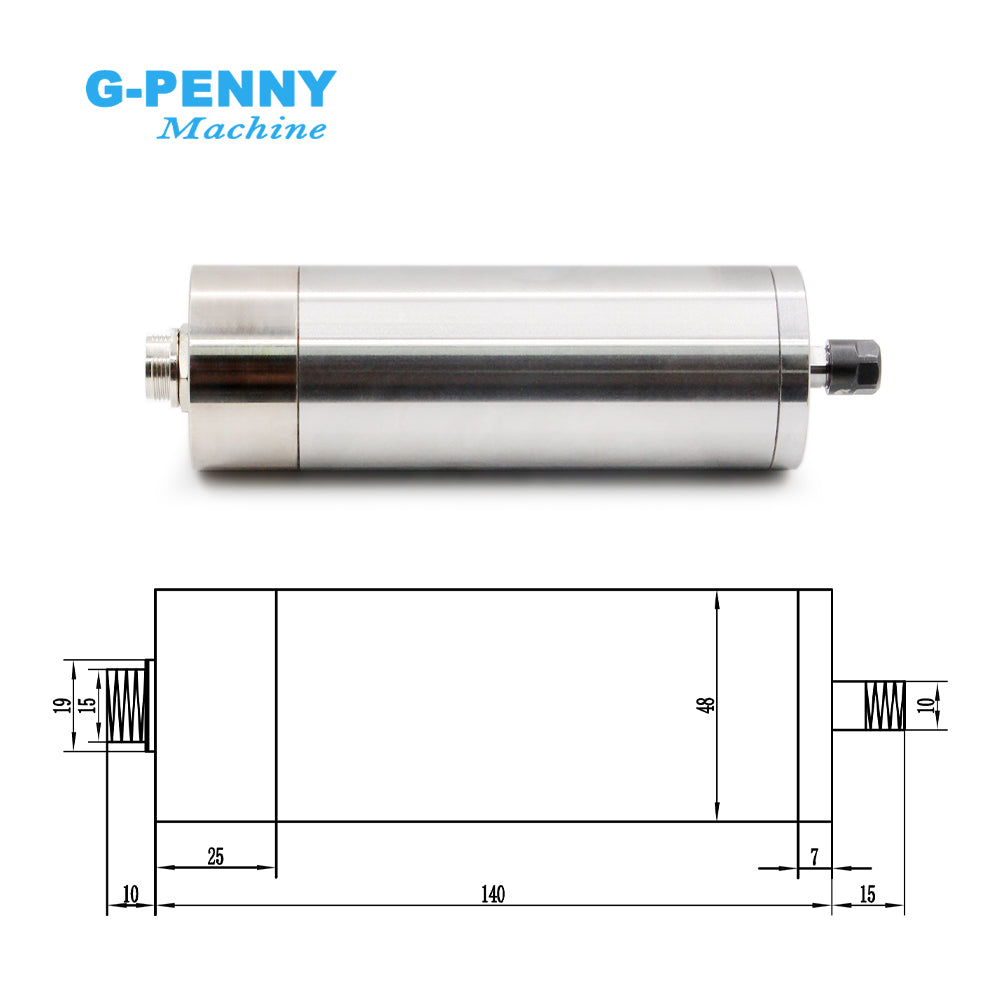

Size: 48x165mm
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

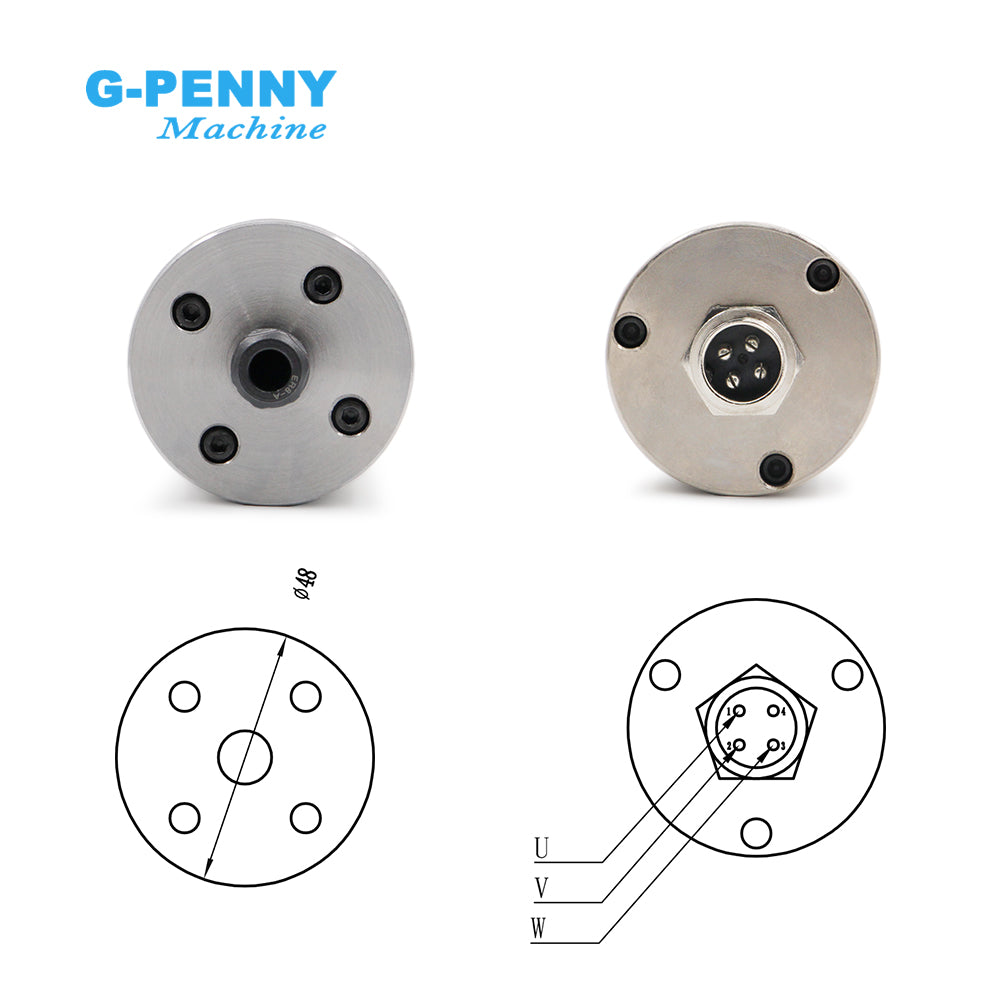

Power Interface: The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
Power: 0.3kw
oltage: 52v
Current: 6A
Frequency: 600Hz
Speed: 36000rpm
Diameter(mm): 48
4pcs fully sealed angular contact bearings Ceramic ball bearings
Collet: ER8
Grease Lubrication
Application: Crafts, desktop engraving machines, ivory carving equipment.etc.
